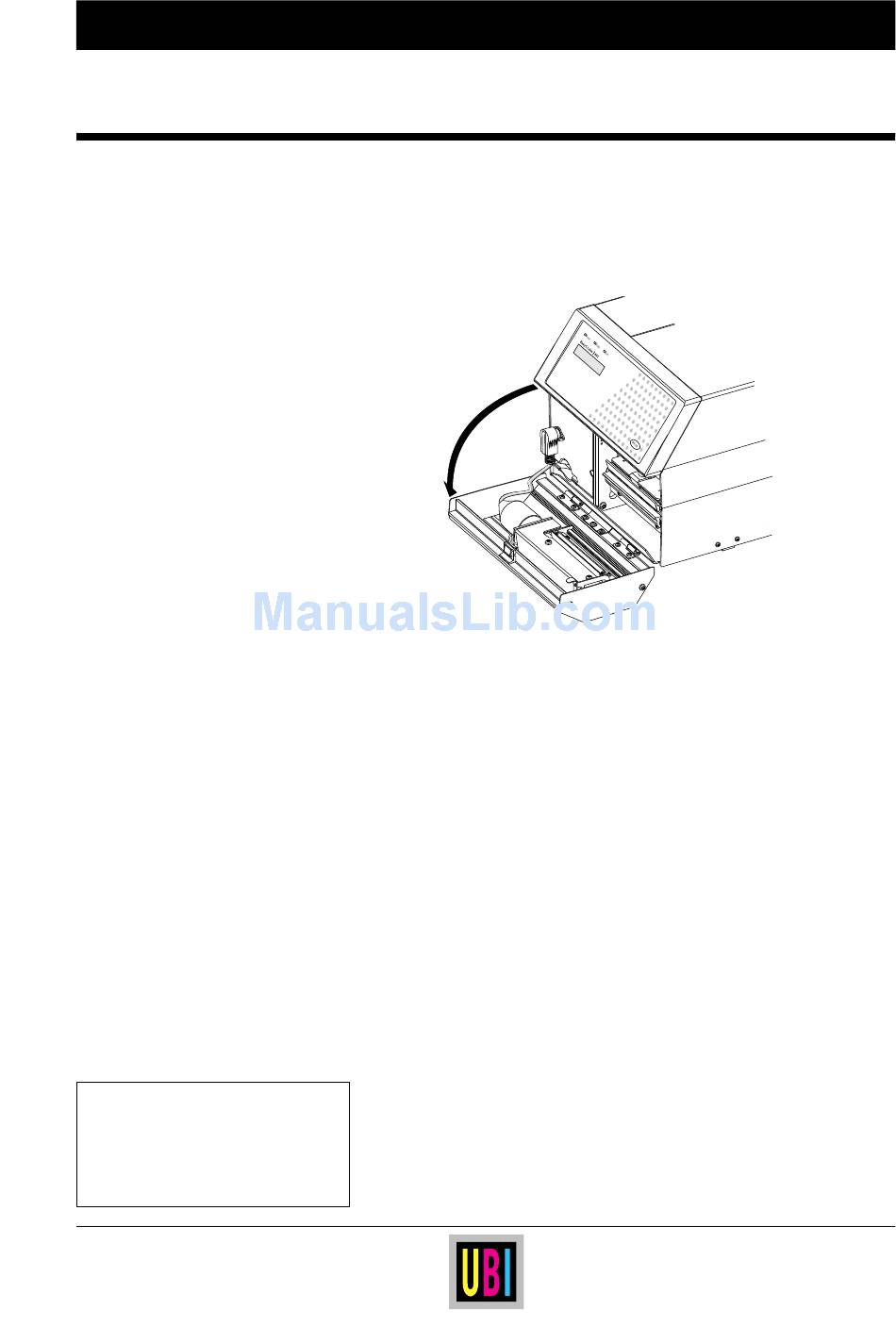

UBI EasyCoder 401 Linerless – Installation Instructions

PAPER CUTTER KIT

Description
UBI EasyCoder 401 Linerless
Paper Cutter Kit
Installation Instructions
Edition 1, November 1996
Article No. 1-960424-00
The paper cutter is factory fitted on the EasyCoder 401 Linerless
Cutter model (EC 401 LLC) and can be fitted as an option on the
EasyCoder 401 Linerless Tear-Off model (EC 401 LLT) which
thereby is upgraded to EC 401 LLC standard.
The cutter can easily be opened for paper load and cleaning.
The linerless paper cutter is intended to cut through continuous
linerless paper strip and is thus provided with a cutting mechanism
designed to cut and feed linerless paper without the adhesive
sticking to the various parts. The cutter has a built-in label-taken
sensor/jam detector, and a safety switch that prevents it from
operating when the anvil shear is open.
The cutter kit consists of:
• One Linerless Cutter Unit
• One Guide Plate
• This Installation Instructions leaflet
Maximum paper thickness is 175 µm (≈ 175 grammes/m
paper-based linerless materials.
The Paper Cutter increases the printer's total weight by approx. 1.0
kgs (=2.2 lbs) and its length by 28 mm (1.1") without the guide plate
and 58 mm (2.3") with the guide plate fitted at the front of the cutter.
Information in this manual is subject to change without prior notice
and does not represent a commitment on the part of UBI Printer AB.
© Copyright UBI Printer AB, 1996. All rights reserved. Published
in Sweden.
EasyCoder is a trademark of United Barcode Industries (UBI).
Torx is a registered trademark of Camcar Division of Textron Inc.
2
) for
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyCoder 401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UBI EasyCoder 401

Summary of Contents for UBI EasyCoder 401

  • Page 1 58 mm (2.3") with the guide plate fitted at the front of the cutter. Information in this manual is subject to change without prior notice and does not represent a commitment on the part of UBI Printer AB. UBI EasyCoder 401 Linerless Paper Cutter Kit ©...
  • Page 2 UBI EasyCoder 401 Linerless – Installation Instructions PAPER CUTTER KIT, cont'd. Installation This chapter describes installation of a paper cutter on an EasyCoder 401 LLT printer without an optional label-taken sensor: • Turn off the power. • Open the printer's front hatch.
  • Page 3 • Switch on power. The cutter will perform an idle cycle in order to occupy its home position. • Use e.g. the Terminal Setup in UBI Shell or setup files to change the startadjust value to -294 and the stopadjust value to +250.
  • Page 4 UBI EasyCoder 401 Linerless – Installation Instructions PAPER CUTTER KIT, cont'd. The guide plate is intended to be fitted at the front of the linerless Installation, cont'd. cutter. It prevents labels up to a length of 120 mm (4.75") from falling off after cutting and stick e.g.
  • Page 5 UBI EasyCoder 401 Linerless – Installation Instructions PAPER CUTTER KIT, cont'd. Installation, cont'd. • If the printer is, or has been, fitted with a label-taken sensor (LTS) inside the front hatch, the following steps must be performed: - Open the left-hand cover by removing six #T10 Torx screws.
  • Page 6 If the label-taken sensor does not operate properly, it may need to be adjusted: • Make a simple UBI Fingerprint program that checks the status of the LTS, e.g.: 10 BREAK 1,88...
  • Page 7 Then the printer is ready for operation. Paper Jam Detection The built-in LTS can be used for detecting paper jams by means of a few lines in a UBI Fingerprint program, as illustrated by the following example: IMMEDIATE OFF 'Init...
  • Page 8 UBI EasyCoder 401 Linerless – Installation Instructions PAPER CUTTER KIT, cont'd. The cutter mechanism consists of a rotating shear and a spring- Cleaning loaded anvil blade. To prevent the adhesive to stick to the cutting parts, the rotating shear is lubricated with a thin film of silicon oil at each cutting cycle, and the anvil blade is provided with a special “non-stick”...
