Super Bright Led, 2-Pin White Plug19 - Directed Electronics 554A Installation Manual

Door Lock Harness (H4),
Wire Connection Guide
___
Green
H4/A
___
Empty
H4/B
___
Blue
H4/C
IMPORTANT! The door lock outputs are low current and should not be attached
directly to any high current device; they are only to be used to activate relays
NOTE: For detailed instructions about connecting to the vehicle's power door lock systems, refer
to the Door Lock Wiring guide (Document No. 1041), available only to authorized dealers though
the technical resources listed at the front of this guide.

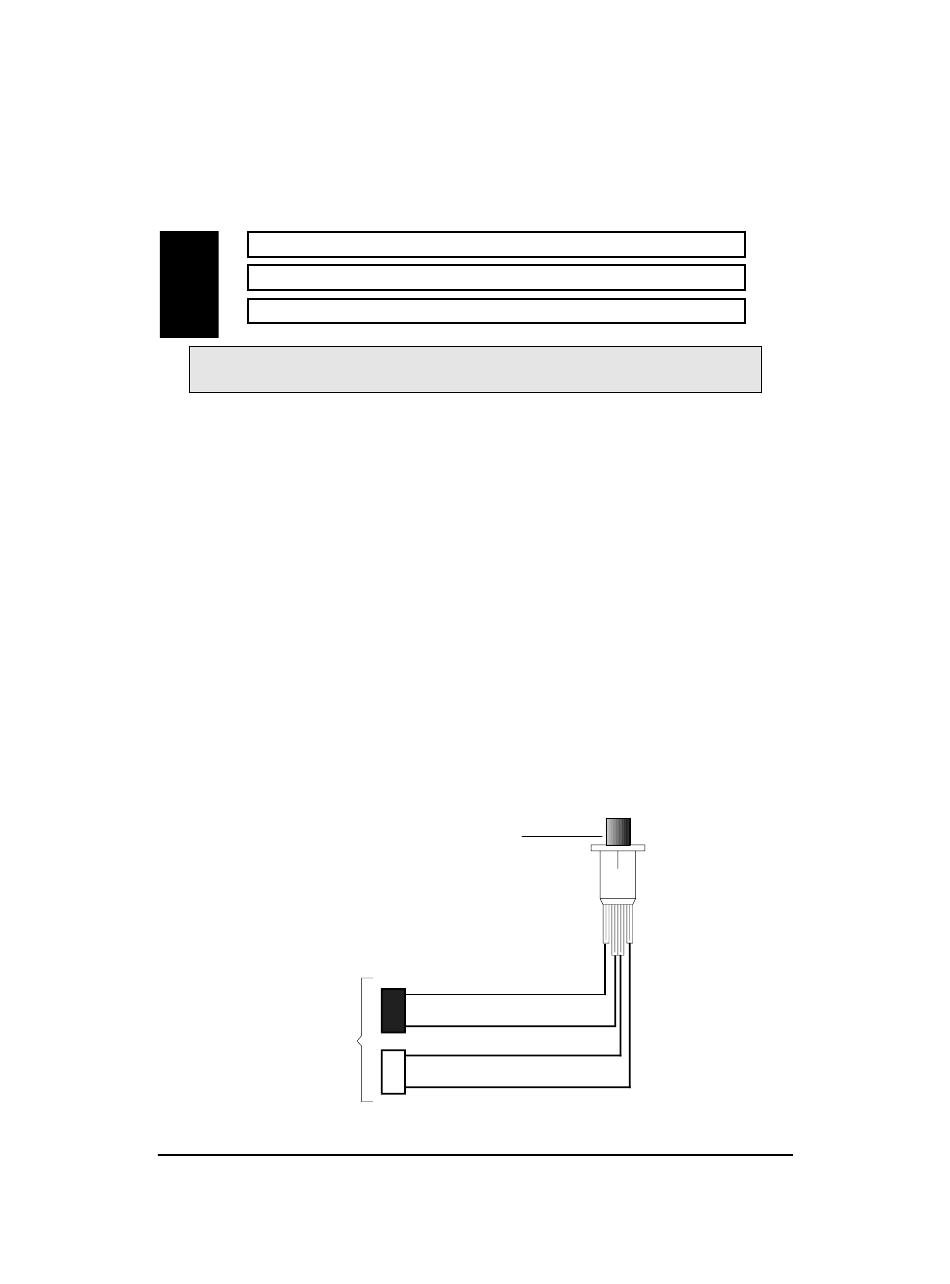

Peripheral Plug-In Harness
Super Bright LED, 2-Pin WHITE Plug
The super bright LED part of the integrated LED/Valet
into the two-pin WHITE port. Make sure the LED wires are not shorted to ground as the LED will
be damaged. Multiple LED's can be used, but they must be wired in series. The LED fits into a
5/16-inch mounting hole. Be sure to check for clearance prior to drilling the mounting hole.
TO
CONTROL
MODULE
© 2003
Directed Electronics, Inc.
(-) Lock, (+) Unlock Output
(-) Unlock, (+) Lock Output
switch operates at (+) 2 volt DC and plugs
®
Integrated
LED/Valet ® switch
BLUE PLUG
GRAY
BLACK
RED
BLUE
WHITE PLUG
Unless Using 451M
