NetterVibration NEG Series Operating Instructions Manual

High frequency electric external vibrators
Hide thumbs Also See for NEG Series:
Table of Contents

Advertisement

Quick Links

Download this manual
These operating instructions apply to:
Operating instructions for
high frequency electric external
vibrators
Series NEG/NEH
NEG 100770
NEG 1001000
NEG 1001090
NEG 1001140
NEG 1001400
NEG 1001540
NEG 1001800
NEG 1002020
NEG 1002500 LR
NEG 1003300 LR
August 2022
No. 1993E
Page 1/31
NEH 100600
NEH 1001140
NEH 1001540
NEH 1002020
NEH 1002000 HD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEG Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NetterVibration NEG Series

Summary of Contents for NetterVibration NEG Series

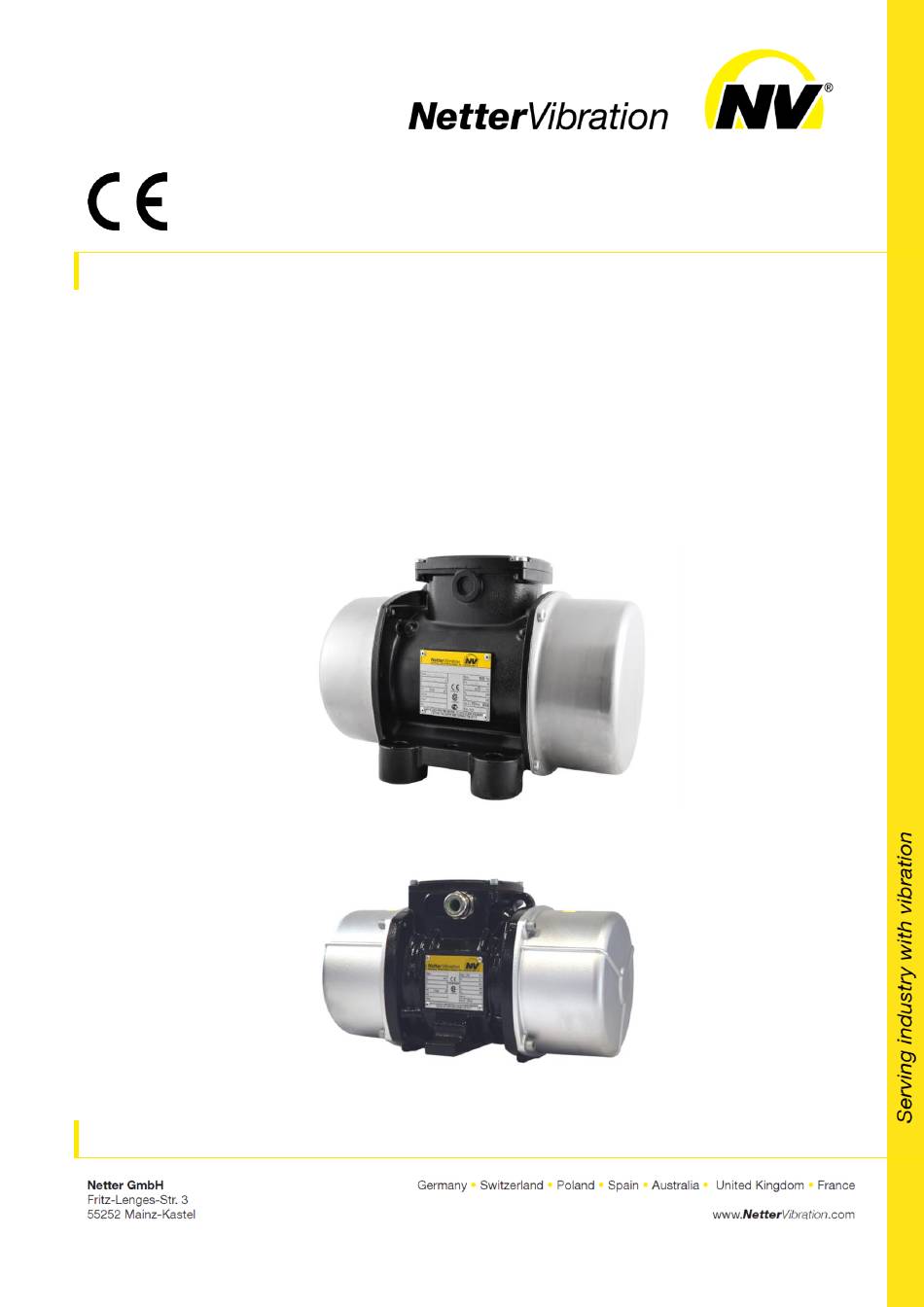

  • Page 1 Operating instructions for August 2022 No. 1993E high frequency electric external Page 1/31 vibrators Series NEG/NEH These operating instructions apply to: NEG 100770 NEH 100600 NEG 1001000 NEH 1001140 NEG 1001090 NEH 1001540 NEG 1001140 NEH 1002020 NEG 1001400 NEH 1002000 HD NEG 1001540 NEG 1001800 NEG 1002020...

  • Page 2: Table Of Contents

    Contents General information Safety Technical data Design and function Transport and storage Installation Start-up and operation Maintenance and servicing Troubleshooting Spare parts and accessories Disposal Annex Please refer to the delivery note for the scope of delivery. Scope of delivery Check the packaging for possible transport damage.

  • Page 3: General Information

    General information General information Before installing the NEG/NEH read these instructions carefully. It is the Use and basis for any action when dealing with the NEG/NEH, and may be used for storage training purposes. The instructions should be subsequently stored at the operation site.
  • Page 4 General information Instruction The following instruction and warning symbols are used in these instruc- and warning tions: symbols Personal DANGER injuries indicates an immediate danger. Disregard of this notice will result in death or severe person- al injuries. WARNING indicates a potential danger. Disregard of this notice can result in death or severe per- sonal injuries.
  • Page 5 General information Type designa- Explanations of abbreviations in the type designation: tions XXX YYYZZZZ-WWW XXX indicates if the vibrator type has a housing foot: • NEG = type with housing foot • NEH = type without housing foot (to attach with clamping device NVH) YYY = 100 signifies that the NEG/NEH is a high frequency electric exter- nal vibrators ZZZZ indicates the centrifugal force in daN (Decanewton).

  • Page 6: Safety

    Safety Safety The NEG/NEH are intended for generating circular vibrations. Intended use General applications are: loosening, conveying, sorting, compacting, sepa- rating bulk materials and reducing friction. NEG/NEH are used for empty- ing bunkers, as drives for conveyor troughs, sieves and vibrating tables. The NEG/NEH are designed for installation in machines and may only be put into operation, if it has been assured that the complete machine com- plies with the regulations of the machinery directive.
  • Page 7 Safety Safety DANGER rules Electric shock An electric shock will result in serious injury or even death. The NEG/NEH must be free of voltage during assembly, start-up, maintenance and troubleshooting. Observe the following five safety rules: 1. Disconnect the NEG/NEH from the mains supply. 2.
  • Page 8 Safety Rotating WARNING Unbalances Risk of injury due to rotating unbalances During operation of the NEG/NEH without unbalance covers there is risk of injury due to rotating unbalances. ➢ Operate the NEG/NEH only with mounted unbalance covers. Hot surfaces CAUTION Risk of burns due to hot surfaces NEG/NEH can strongly heat up during operation.

  • Page 9: Technical Data

    The sound level is determined to a great extent by the surface upon which the NEG/NEH is mounted (e.g. sheet metal). The sound level will be amplified by non-silenced sheet metal. * Higher temperatures are only possible after consultation with and written approval from the application techni- cians of NetterVibration.
  • Page 10 Technical data type designation Type plate rotary speed nominal voltage current phases / capacity serial number year of manufacture degree of protection insulation class power factor power nominal frequency centrifugal force duty cycle The values can be found on the type plate. The type plate is located on the hous- ing.

  • Page 11: Design And Function

    Design and function Design and function Example: NEG 1001140 Example: NEH 1002020 Design Element Function Housing Contains and protects the components of the NEG/NEH. Unbalance covers Protect against grabbing into the unbalances. Housing foot (only for NEG) Attach the NEG to the mounting surface. Type plate Shows model specific information and data.

  • Page 12: Transport And Storage

    Transport and storage Transport and storage Observe the safety instructions in Ch. Safety, from page 6 on. Please refer to the brochure for weights and dimensions. When transporting the NEG/NEH, ensure that the NEG/NEH is not sub- Transport- jected to strong impacts or vibrations that could damage the bearings. conditions Please observe the following notes: •...

  • Page 13: Installation

    Installation Installation Observe the safety instructions in Ch. Safety, from page 6 on. Please refer to the brochure for weights and dimensions. The NEG/NEH can be operated in any position. Fastening Notice: The feet of the NEG/NEH must lie completely on the surface so that there is no tension in the housing when tightening the fas- tening screw/screws, which could cause mechanical damage.
  • Page 14 Installation Electrical The following requirements and conditions must be met to connect the connection NEG/NEH electrically: • The permissible operating conditions must be met. Please refer to chap. Technical data, page 9 for operating conditions. • A suitable overload protection (1) must be pre-connected to each vibrator.
  • Page 15 Installation Connection schemes Earthing terminal for protective conductor (green-yellow) PTC-Thermistor connection (depending on the vibrator-type) Open the terminal box to connect the vibrators according to the type plate as follows: • information on the type plate • connection schemes • connection data The green-yellow protective conductor must only be connected to the earthing terminal.
  • Page 16 Installation Connection Connection data NEG data Type Connection data NEG 100770 NEG 1001140 NEG 1001540 230 V / 100 Hz = delta connection 400 V / 100 Hz = star connection NEG 1001800 NEG 1002020 NEG 1003300 LR NEG 1001000 42 V / 200 Hz = without bridge 250 V / 200 Hz = without bridge NEG 1001090...

  • Page 17: Start-Up And Operation

    Start-up and operation Start-up and operation Observe the safety instructions in chap. Safety, from page 6 on. Please refer to chap. Technical data, page 9 for permissible operating Permissible conditions. operating conditions • When commissioning the NEG/NEH, the rules and regulations of the Regulations local associations for electrical engineering (e.g.
  • Page 18 Start-up and operation Power supply Standard network forms are TN and TT networks with an earthed star point, as in Germany. Depending on the NEG/NEH-type, suitable frequen- cy and voltage transformers, such as Netter FSW / NFC, must be provided for operation.
  • Page 19 Start-up and operation Number of The table shows the number and type of unbalances, depending on the unbalances voltage: Type Number per side, unbalance type and setting 400 V 42 V 250 V 110 V NEG 100770 4x XLs Setting: 17 % max.
  • Page 20 Start-up and operation Unbalance The centrifugal force is adjustable with the unbalance discs (lamella) of discs type XL in the following steps: type XL 1: Number of unbalance discs per side 2: Default number of unbalance discs per vibrator 3: Centrifugal force in % There are 2 possibilities to adjust the unbalances: The unbalance adjustment (fine adjustment) is carried out by remov- ing one unbalance disc on each side.
  • Page 21 Start-up and operation Settings Unbalance per side Type fixed adjustable NEG 1003300 LR NEG 100770 NEG 1001090 NEH 1001140 NEG 1001140 NEG 1001540 NEG 1002020 NEG 1002500 LR NEH 100600 NEH 1002020 NEH 1002000 HD NEG 1001800 NEH 1001540 Example: NEH 100600 has a total of 6 unbalance discs (3 discs per side: 2 fixed, 1 adjustable).

  • Page 22: Maintenance And Servicing

    Maintenance and servicing Maintenance and servicing Observe the safety instructions in chap. Safety, from page 6 on. Information regarding tightening torques for screws and nuts can be found Technical data in Ch. Technical data, page 9. Expertise and Maintenance and servicing of the vibrators may only be performed by reg- regulations ularly trained, authorised and qualified personnel.
  • Page 23 Maintenance and servicing Notes on NEG/NEH with ball bearings are lubricated for their service life (permanent lubrication lubrication [DS*])). NEG with roller bearings are lubricated with the grease of the type KLUEBER Staburags NBU 8 EP. Depending on the speeds and operating conditions, the grease of these bearings must be completely renewed at the specified intervals.
  • Page 24 Maintenance and servicing Lubrication The item numbers refer to the spare parts list. or replace- ment of Overview of the different types of construction: bearings NEG 100770, NEG 1001000, NEG 1001140, NEG 1001400, NEG 1001540, NEG 1001800, NEG 1002020 NEG 1001090...
  • Page 25 Maintenance and servicing NEG 1002500 LR, NEG 1003300 LR NEH 1001140, NEH 1001540, NEH 1002020, NEH 1002000 HD...
  • Page 26 Maintenance and servicing NEH 100600 Procedure: Switch off NEG/NEH, secure against switching on again and ensure that it is volt-free. Loosen screw (24) and remove unbalance covers (23). Disassemble unbalances type XL and type XLs: Screw a long screw with the same thread into a tapped hole for the fastening screws (24) of the unbalance cover.

  • Page 27: Troubleshooting

    Troubleshooting Troubleshooting Observe the safety instructions in chap. Safety, from page 6 on. Troubleshooting of the vibrators may only be performed by regularly Expertise and trained, authorised and qualified personnel. Work on the electrical system regulations may only be carried out by a qualified electrician. The qualified personnel has to work exclusively with tools suitable for the application.
  • Page 28 Troubleshooting Fault Possible cause Corrective action Excessive heating Wiring wrong / overload Check circuit diagram. of the vibrator Mains voltage too low Check mains voltage and cable cross- section and, if necessary, adjust or replace cable. Too much grease in bearings Fill in correct amount of grease.

  • Page 29: Spare Parts And Accessories

    Spare parts and accessories 10 Spare parts and accessories Please provide the following details when ordering spare parts: Ordering of spare parts type designation according to the type plate serial number according to the type plate description and position number of spare part, according to the over- views from page 24 required amount Accessories...

  • Page 30: Disposal

    Disposal 11 Disposal Prices All parts of the NEG/NEH must be properly disposed of accord- ing to the material specifications. The valid disposal prices of the NEG/NEH are available on request. All parts of the NEG/NEH can be recycled. Material- specifications Material Part...

  • Page 31: Annex

    Annex 12 Annex Netter Vibration.com The declaration of conformity can be found at: www.
