These operating instructions apply to:
Use and storage
Before installing the NTP read these instructions carefully. It is the basis for any action when dealing with
the NTP, and may be used for training purposes. The instructions should be subsequently stored at the
operation site.
Copyright
This documentation is protected by copyright.
reprinting and reproduction of the instructions, as well as parts thereof.

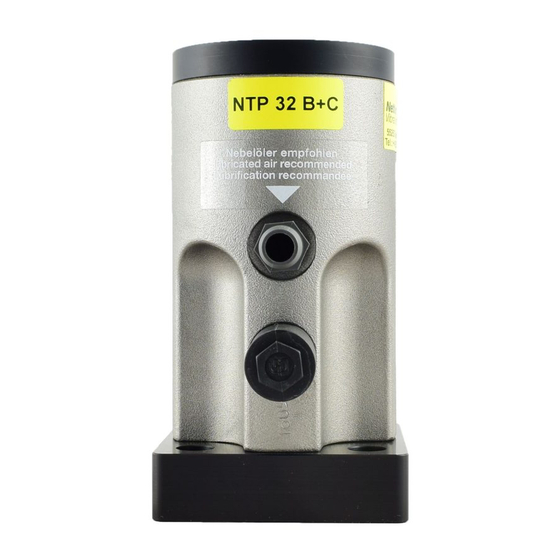

Operating instructions for
Netter pneumatic linear vibrators
series NTP
NTP 18
NTP 25
Netter
Vibration reserves all rights such as translations,
Sept. 2021
No. 2016E
page 1/9
version 1
NTP 32
NTP 48
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for NetterVibration NTP Series
Summary of Contents for NetterVibration NTP Series

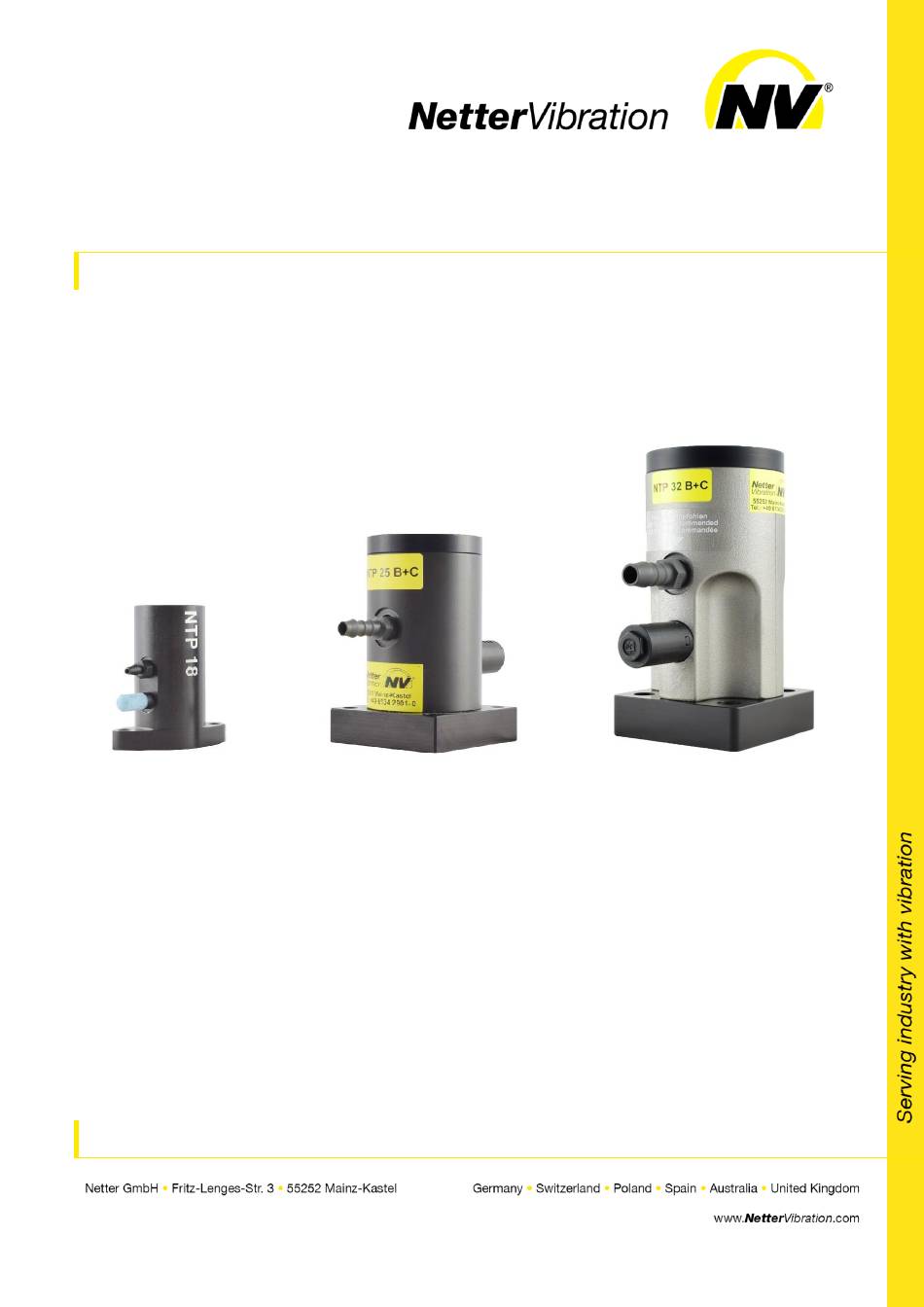

- Page 1 Sept. 2021 Operating instructions for No. 2016E Netter pneumatic linear vibrators page 1/9 series NTP version 1 These operating instructions apply to: NTP 18 NTP 32 NTP 25 NTP 48 Use and storage Before installing the NTP read these instructions carefully. It is the basis for any action when dealing with the NTP, and may be used for training purposes.
- Page 2 General information The pneumatic linear vibrators series NTP are hereafter referred to as Designation "NTP". Scope of Please refer to the delivery note for the scope of delivery. delivery Check the packaging for possible transport damage. In the event of dam- age to the packaging, check the contents for completeness and possible damage.
- Page 3 Safety The NTP are intended for generating linear vibrations. Intended use General applications are: loosening, conveying, sorting, compacting, sepa- rating bulk materials and reducing friction. NTP are used for emptying bunkers, as drives for conveyor troughs, sieves and vibrating tables. The NTP are designed for installation in machines and may only be put into operation, if it has been assured that the complete machine complies with the regulations of the machinery directive.
- Page 4 Technical data Permissible operating conditions Drive NTP must be operated with clean, lubricated compressed air or lubricated nitrogen according to the following specification, according to ISO 8573-1: medium [ 5 : Filter ≤ 5 µm Humidity, Pressure Total oil content dew point ≤...
- Page 5 Connection data Air supply line Air discharge line Type: Mounting Tighten- NTP ... thread or hole* Connection Hose Connection Hose torque thread [inch] size** thread [inch] size** [Nm] DN 4 DN 6 G 1/8 G 1/8 DN 4 G 1/8 DN 6 G 1/4 G 1/4...
- Page 6 Transport and storage Observe the safety instructions in chap. Safety, from page 3 on. Special conditions of transport are not required. Transport conditions Storage Storage in a dry and clean environment, protected from UV-exposures, conditions weather and ozone. Storage temperature: -20 °C to 60 °C. Preserve all NTP apart from the NTP L before storage: Add anti-corrosion oil to the air inlet.
- Page 7 Start-up and operation Observe the safety instructions in chap. Safety, from page 3 on. Observe the permissible operating conditions in chap. Technical data, page 4. Starting pressure at low temperatures or after prolonged storage At ambient temperatures 10 °C or after prolonged storage higher starting pressures (≥...
- Page 8 Interval Action Monthly Check the function of the NTP. Check the function of the mist lubricator. Refill oil if necessary (except for the NTP L). Clean the filter of the maintenance unit and replace, if necessary. If necessary Clean the surface of the NTP with a wet cloth to remove dust deposits. * Observe the tightening torques (see Chap.
- Page 9 The NTP can be properly disposed by quest. Depending on the type, the following materials are built into the NTP: Steel/stainless steel, aluminium, bronze (NTP BK), brass (NTP HT), copper (NTP HT), plastics. 12 Annex The Declaration of Incorporation can be found at: www.nettervibration.com...
