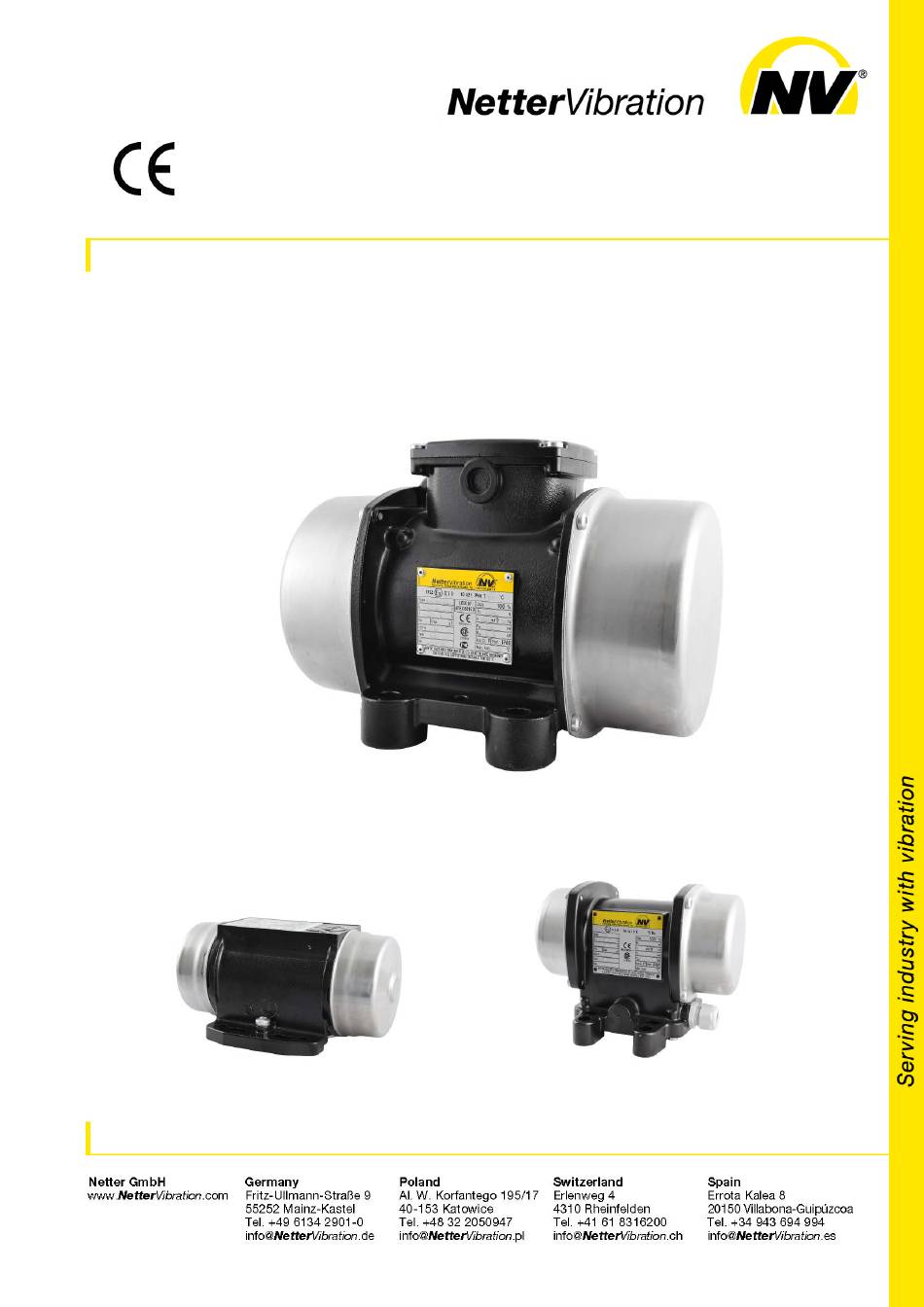

- Page 1 Jan. 2019 Installation and Operating No. 1762E Instructions for Netter Page 1/28 Electric External Vibrators These operating instructions apply to: Series NEA Series NEG...
-
Page 2: Table Of Contents
Contents GENERAL INFORMATION SAFETY TECHNICAL DATA DESIGN AND FUNCTION TRANSPORT AND STORAGE INSTALLATION Fixation of the vibrator Electrical connections START-UP ADJUSTMENT OF UNBALANCES TROUBLESHOOTING MAINTENANCE AND SERVICING SPARE PARTS ACCESSORIES DISPOSAL ANNEX Scope of delivery Please refer to the delivery note for the In the event of damage to the packaging, scope of delivery. -
Page 3: General Information
Copyright Translations are made to the best of our This documentation is subject to copyright. knowledge. NetterVibration reserves all rights includ- NetterVibration does not assume liability ing those to translations, reproduction and for translation errors, even if the translation duplication of the operating instructions, as was made by us or on our behalf. - Page 4 The following instruction and warning symbols are used in these operating instructions: indicates a possible explosion which will result DANGER in death or personal injury if the instruction is not followed. indicates a possible danger which can result WARNING in personal injury, and/or material damage if the instruction is not followed.
- Page 5 Information on the NEA and NEG Netter electric external vibrators of the series The electric external vibrators or the series NEA and NEG comply with the EC machin- NEA and NEG comply with the directive ery directive 2006/42/EC, the electromagnet- 2014/34/EU for the equipment group II and ic compatibility directive 2014/30/EU and the are suitable for use in potentially explosive...
-
Page 6: Safety
NetterVibration assumes no liability for personal injuries and material damages if technical modifications on the product were made or the notices and regula- tions in these operating instructions were not observed. -
Page 7: Technical Data
These values are valid for operation with an ON-period of 100 %. Cycled or frequency-controlled operation or synchronous operation is subject to specific requirements. These must be clarified with NetterVibration on a case-by-case basis. These electric vibrators must not be used in environments with a highly explosive gas atmosphere. - Page 8 Please refer to the type plate for the technical data of your electric external vibrator. Type plate for sizes 50 and 60 type designation duty cycle rotary speed centrifugal force nominal voltage nominal frequency ...
-
Page 9: Design And Function
4 Design and function • The motor shaft is made of heat- • The electric motor for the series NEA is a treated alloyed steel. three-phase asynchronous motor (capaci- • The special bearings are over-dimen- tor included on the supply cable or in the capacitor box). -
Page 10: Transport And Storage
The unit should be stored in a clean, dry environment. If the vibrator is operated in areas with potentially explosive dust (zone 22), maintenance by NetterVibration is mandatory after a storage period of more than a year. DANGER The transport eyes are for exclusively lifting the vibrator. -
Page 11: Installation
6 Installation The installation of the vibrators must only be carried out by authorised, qualified staff. IMPORTANT The staff has to work exclusively with tools suitable for the application. During installation please comply strictly with the safety regulations in chapter 2 and the accident prevention rules! Installation of the system must be performed in compliance with the local, IMPORTANT... -
Page 12: Electrical Connections
Use an additional safety device with steel cable for critical installation situa- tions, e.g. NSE. Use the wire cable clamps to set the safety cable to the shortest possible ca- DANGER ble length. The safety cable must always be tensioned! 6.2 Electrical connections The electrical installation of the vibrators must be performed only by authorised, qualified staff. - Page 13 Connection example for NEA Capacitor in cable Cable with capacitor box A suitable overload protection must be pre-connected to each vibrator. The motor protection switches must be in- terlocked with each other in pairs, so that in the event of a motor failure, the IMPORTANT power supply from both motors is inter- rupted at the same time in order not to...
- Page 14 Thermic overload protection: Standard equipment with PTC-thermistor 130°C from housing size 170 up- wards. For smaller vibrators: available on request as initial equipment. If the vibrator is operated in areas with potentially explosive dust (zone DANGER 22), it is compulsory to connect the PTC-thermistor. This regulation does not apply for units without a PTC-thermistor.
-
Page 15: Start-Up
7 Start-up When commissioning the vibrators, the rules and regulations of the local asso- ciations for electrical engineering (e.g. VDE) and the valid accident prevention regulations must be observed. The vibrators must always be switched on and off at the main switch. When operating the external electric vibrators with a frequency converter, com- IMPORTANT pliance with the EMC directive must be ensured. -
Page 16: Adjustment Of Unbalances
8 Adjustment of unbalances For all vibrators of the series NEA and NEG, there is the possibility of unbalance adjustment. Unless otherwise specified by you, the units were delivered with the standard setting (100 %). IMPORTANT By adjusting the unbalances, you can directly influence oscillation bandwidth, centrifugal force and current consumption. - Page 17 All centrifugal values in % can be adjusted as specified in the table. The removed lamella discs must be replaced by compensation washers (available from NetterVibration) of identical thickness and identical inner diameter. 2. The unbalance adjustment (coarse adjustment) is performed by turning one lamella disc on each side by 180°...
- Page 18 Unbalance lamella discs of the type XLs Adjustment of the unbalances is carried out according to a scale disc or the supplementary sheet in the terminal box of the unit. By rotating the outer, adjustable unbalance disc(s) to another position, the percentage of the centrifugal force changes as shown in the illustration below.
- Page 19 Unbalance discs of the type XS The unbalance setting of the unbalance discs of the type XS is car- ried out on the scale on the fixed unbalance. The centrifugal force can be steplessly adjusted by turning the outer unbalance discs and adjusting them at the partial strokes. After ad- justing the unbalances, the nuts and screws must be tightened with the specified torque.
-
Page 20: Troubleshooting
9 Troubleshooting Troubleshooting may only be carried out by authorised qualified staff. The qualified personnel must only use tools suitable for the application. IMPORTANT Fault Possible cause Troubleshooting Action Check fuse and Replace fuse and/or connect- Phase interruption Vibrator does connecting cable ing cable not start or... -
Page 21: Maintenance And Servicing
Observe the specified torques (see chapter 6.1). The condition of the ball and roller bearings must be checked regularly. The replacement of defective bearings or bearings which have reached the end of their service life must be made by NetterVibration. DANGER... - Page 22 NBU 8 EP. This grease has the advantage reached, must be sent immediately to that the bearings are lubricated for a period NetterVibration for replacement. of at least 5000 operating hours (up to 3000 rpm). After this time the grease of the bearings has to be replaced completely.
- Page 23 Grease quantity during lubrication and replacement of bearings and bearing life Type Grease bearing life bearing life Type Grease bearing life bearing life quantity 50 Hz 60 Hz quantity 50 Hz 60 Hz NEA 504 > 100.000 > 100.000 NEG 253720 12.228 11.086 perm.
- Page 24 Procedure for lubrication and replacement of bearings: 1. Switch off vibrator, secure against switching on again and ensure that it is volt-free. 2. Loosen Allen screws (29) and remove unbalance covers (27). 3. Dismantle unbalances: Unbalances of the types XL and XLs (15): Screw a long screw with the same thread into a tapped hole for the fastening screws (29) of the unbalance cover.
-
Page 25: Spare Parts
11 Spare parts When ordering spare parts please provide the following details: 1. Type of unit 2. Description and position of spare part 3. Required number of parts 4. Serial number Example NEG 50300 Example NEG 501140... -
Page 26: Accessories
12 Accessories The following accessories are available for electric external vibrators of the series NEA and NEG: Description Comment Shim washers Compensation for removed unbalance discs CC-unbalances Depending on the direction of rotation, two different torques can be achieved. Fastening sets NBS For secure fastening of electric external vibrators Frequency converters For frequency-controlled operation... -
Page 27: Disposal
Copper winding winding winding with resin All units can be disposed of by NetterVibration. ENVIRON- The valid disposal prices are available on request. MENTALLY FRIENDLY DISPOSAL 14 Annex Annex: Further information available on request: Leaflet no.
