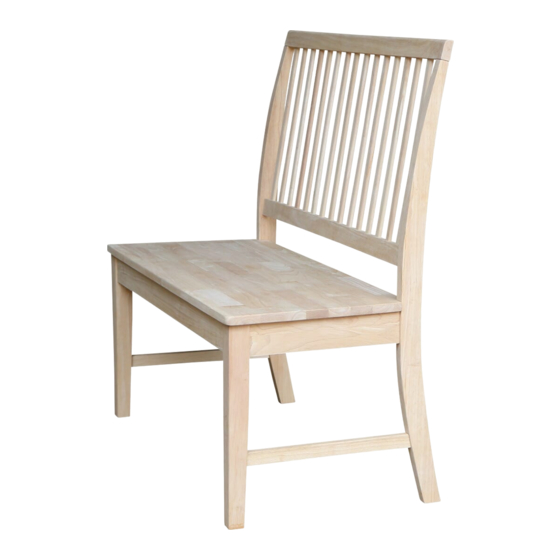

- Page 1 ASSEMBLY INSTRUCTIONS Description : MISSION BENCH RTA Item No. : BE-15 ITEM NO : BE-15 Printed in Vietnam REVISED MAR 10, 2016 - 1 -...
- Page 2 DO NOT tighten all screws and bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDE NOT INCLUDED ITEM NO : BE-15 Printed in Vietnam REVISED MAR 10, 2016 - 2 -...
- Page 3 Description Sketch Description Sketch Long bolt Medium bolt (M6x80mm) (M6x60mm) Short bolt Flat washer (M6x35mm) (6.5x19mm) Screw Lock washer (M4x35mm) (6.5x11mm) Allen Key (M4x80mm) ITEM NO : BE-15 Printed in Vietnam REVISED MAR 10, 2016 - 3 -...
- Page 4 Attach front legs (C) to the seat frame with bolts (2), and washers (4) and (5) as shown below. Tighten with Allen key (7). Attach side stretchers (D) to front and back legs with screws (6) as shown below. Tighten with a screwdriver ITEM NO : BE-15 Printed in Vietnam REVISED MAR 10, 2016 - 4 -...
- Page 5 STEP 3 Attach the seat (E) to top of the seat frame (B) (from Step 2) with screws (6) as shown below. Tighten with the screwdriver. ITEM NO : BE-15 Printed in Vietnam REVISED MAR 10, 2016 - 5 -...
