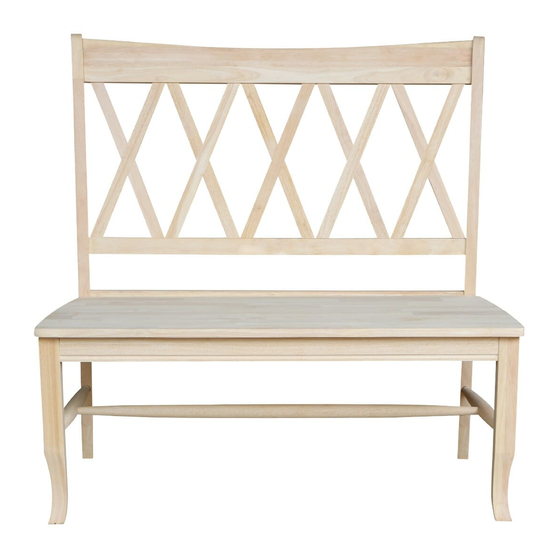

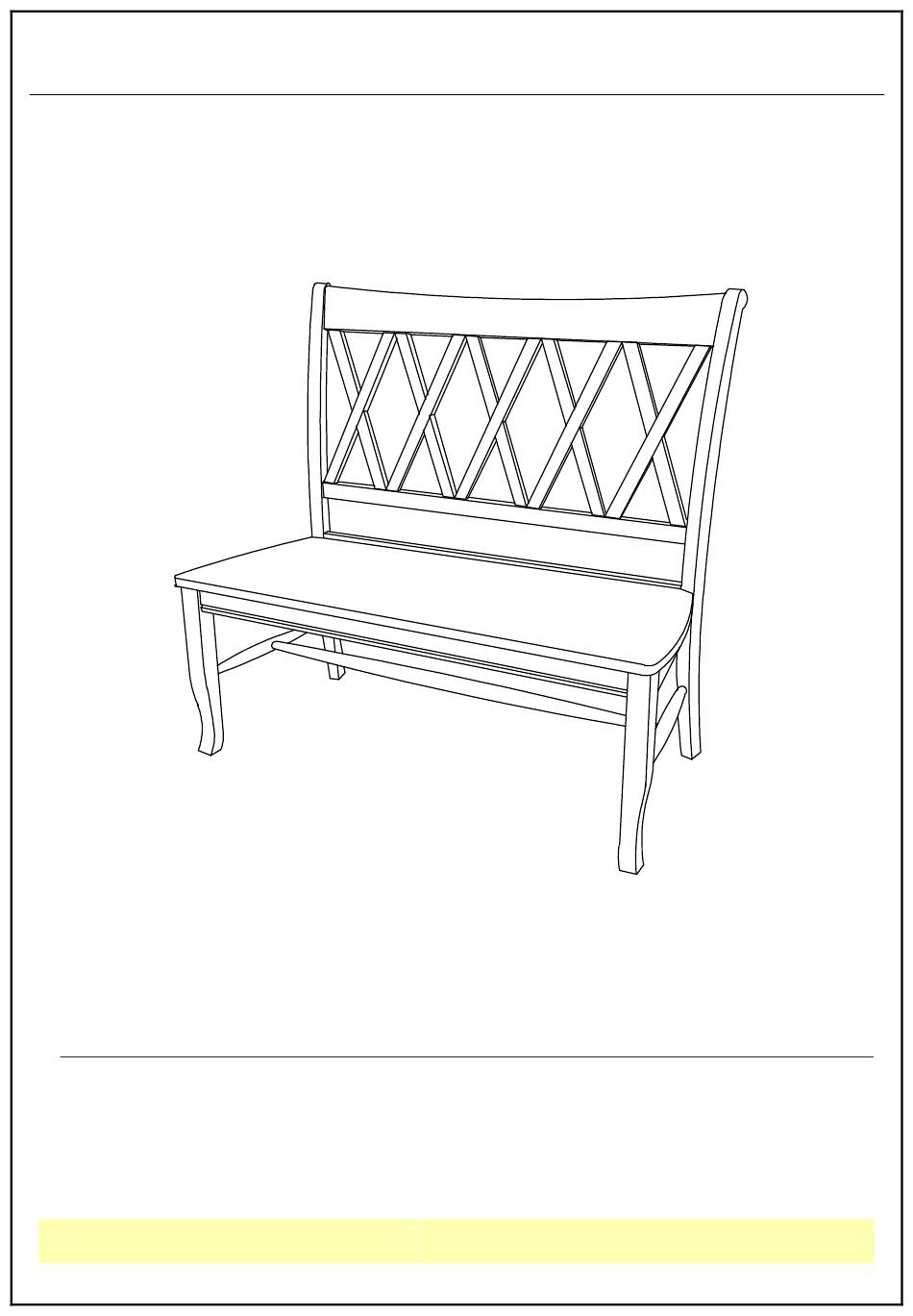

- Page 1 ASSEMBLY INSTRUCTIONS Description : DOUBLE X BACK BENCH Item No. : BE-20 ITEM NO.: BE-20 Printed in Vietnam REVISED MAR 09, 2016 - 1 -...
- Page 2 Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws, bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: BE-20 Printed in Vietnam REVISED MAR 09, 2016 - 2 -...
- Page 3 Description Sketch Description Sketch Short bolt Medium bolt ( M6x35mm) (M6x60mm) Long bolt Wood Screw (M6x80mm) (M4x35mm) Lock Washer Flat Washer (6.5x13mm) (6.5x19mm) Allen Key (M4x80mm) ITEM NO.: BE-20 Printed in Vietnam REVISED MAR 09, 2016 - 3 -...
- Page 4 Tighten with Allen key (7). Place side stretchers (E) and center stretcher (F) between front and back legs. Then attach stretchers with the screws (4) as shown below. Tighten with a screwdriver. ITEM NO.: BE-20 Printed in Vietnam REVISED MAR 09, 2016...
- Page 5 STEP 3 Attach the seat (C) to top of the seat frame (B) with screws (4) as shown below. Tighten with a screwdriver. ITEM NO.: BE-20 Printed in Vietnam REVISED MAR 09, 2016 - 5 -...
