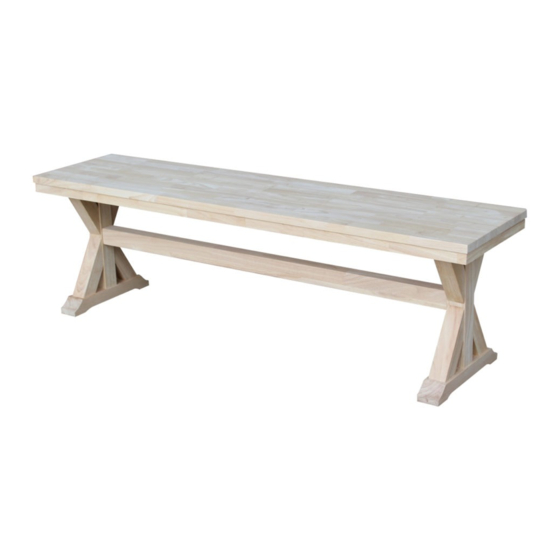

- Page 1 ASSEMBLY INSTRUCTIONS : 60 IN CANYON TRESTLE BENCH Description : BE-6015T Item No. ITEM NO.: BE-6015T Printed in Vietnam ISSUED DEC 08, 2016 - 1 -...
- Page 2 Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws, bolts until completely assembled. Keep all hardware parts out of reach of children. ITEM NO.: BE-6015T Printed in Vietnam ISSUED DEC 08, 2016 - 2 -...
- Page 3 Long bolt ( M6 x 35mm) (M8 x 70mm) Lock washer Flat washer (6.5 x11mm) (6.5 x19mm) U – Washer Allen Key (M4 x 30mm x 110mm) ITEM NO.: BE-6015T Printed in Vietnam ISSUED DEC 08, 2016 - 3 -...
- Page 4 Attach crossbar (B) to bases (C) with bolts (2), and U-washers (5) as shown below. Tighten with Allen key (6). Attach the other base (C) to top (A) with bolts (1), and washers (3) and (4) as shown below. Tighten with Allen key (6). ITEM NO.: BE-6015T Printed in Vietnam ISSUED DEC 08, 2016...
