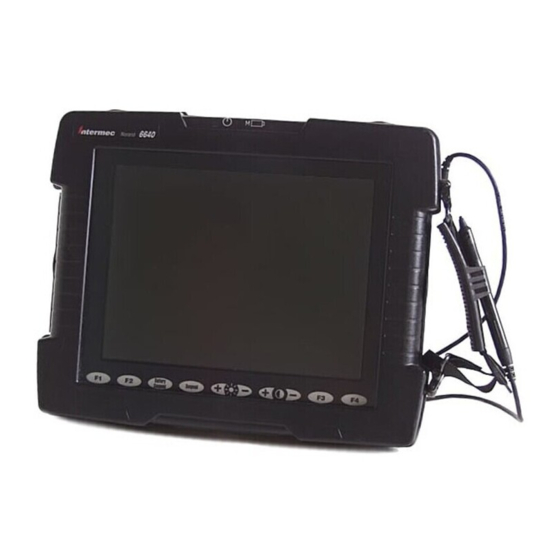

6640 Mobile Computer
TECHNICAL
REFERENCE
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
P/N: 978-054-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6640 and is the answer not in the manual?

Questions and answers

Related Manuals for Intermec 6640

Summary of Contents for Intermec 6640

  • Page 1 6640 Mobile Computer TECHNICAL REFERENCE " " " " " " " " " " " " " " " " " " " " " " " " " " " " P/N: 978-054-001...
  • Page 2 " NOTICE Acknowledgments...
  • Page 3 CONTENTS " " " " " " " " " " " " " " " " " " " " " " " " " " " " SECTION 1 Introduction 6640 Mobile Computer Technical Reference...
  • Page 4 CONTENTS SECTION 2 CMOS Setup ii 6640 Mobile Computer Technical Reference...
  • Page 5 CONTENTS SECTION 3 Hotkeys (Virtual Screen Keys) SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference...
  • Page 6 CONTENTS SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference...
  • Page 7 CONTENTS 6640 Mobile Computer Technical Reference...
  • Page 8 CONTENTS SECTION 6 Minimal Windows 98 Load SECTION 7 Recovery Procedures TABLES GLOSSARY INDEX 6640 Mobile Computer Technical Reference...

  • Page 9: Related Publications

    " " " " Related Publications " About the Book " " " " " " " " " " " " 6640 Mobile Computer Technical Reference Section 1 Introduction " " " " " " " " " "...

  • Page 10: An Open System Environment

    Introduction " " " " An Open System Environment 6640 Mobile Computer Technical Reference SECTION 1...
  • Page 11 SECTION 1 6640 Computer AC Power Batteries " NOTE: A backup battery that no longer accepts a charge must be replaced by a factory-approved service provider. 6640 Mobile Computer Technical Reference Introduction...
  • Page 12 Introduction SECTION 1 Battery Meter BIOS Display Flash 6640 Mobile Computer Technical Reference...

  • Page 13: Floppy Drives

    SECTION 1 Floppy Drives USB Floppy Drive EXAMPLE: If at DOS the USB floppy is drive B:, at Windows it may be drive D:. Bootable as Drive A: 6640 Mobile Computer Technical Reference Introduction...

  • Page 14: Parallel Floppy Drive

    Introduction SECTION 1 Nonbootable as Drive B: Parallel Floppy Drive ½ Embedded Floppy Drive 6640 Mobile Computer Technical Reference...

  • Page 15: Hard Drives

    SECTION 1 Introduction Hard Drives 6640 Mobile Computer Technical Reference...

  • Page 16: Indicator Leds

    Introduction Indicator LEDs " " " " " " " " " " Memory 6640 Mobile Computer Technical Reference SECTION 1...

  • Page 17: Pc Card Slots

    SECTION 1 Introduction PC Card Slots Power Management Processor 6640 Mobile Computer Technical Reference...
  • Page 18 Introduction Scanner Touchpad " " " " Docks AC Power 1-10 6640 Mobile Computer Technical Reference SECTION 1...

  • Page 19: Parallel Port

    SECTION 1 Introduction Connections I/O Panel Keyboard Network Parallel Port Serial Port USB Connector 6640 Mobile Computer Technical Reference 1-11...

  • Page 20: Tips For Getting Started

    Introduction Tips for Getting Started " " " " " " 1-12 6640 Mobile Computer Technical Reference SECTION 1...

  • Page 21: System Configuration

    SECTION 1 " " System Configuration " " " " " " 6640 Mobile Computer Technical Reference Introduction 1-13...

  • Page 22: Set Up For Pc Development

    Introduction Set Up for PC Development " NOTE: Always keep the 6640 Computer on charge while doing any setup. " " 1-14 6640 Mobile Computer Technical Reference " " SECTION 1...

  • Page 23: Development Environments

    SECTION 1 " NOTE: See Section 2 for CMOS options. Development Environments Windows 98 Microsoft Visual C++ or Borland C++ for Windows 6640 Mobile Computer Technical Reference Introduction 1-15...

  • Page 24: Microsoft Visual Basic For Windows

    Introduction Microsoft Visual Basic for Windows " " Pen for Windows 2.0 1-16 6640 Mobile Computer Technical Reference SECTION 1...

  • Page 25: Other Environments

    SECTION 1 Other Environments Customer Support Factory Service Customer Response Center 6640 Mobile Computer Technical Reference Introduction 1-17...

  • Page 26: Web Site

    Introduction Web Site Bulletin Board Service " " 1-18 6640 Mobile Computer Technical Reference SECTION 1...

  • Page 27: Cmos Setup

    Using the External Keyboard " " " " " " " " " " " " " " " " 6640 Mobile Computer Technical Reference Section 2 CMOS Setup " " " " " " " " " " "...
  • Page 28 CMOS Setup SECTION 2 Using the Stylus Pen in Setup " " " " " 6640 Mobile Computer Technical Reference...
  • Page 29 SECTION 2 Main " " 6640 Mobile Computer Technical Reference CMOS Setup...
  • Page 30 CMOS Setup SECTION 2 " ½ " 6640 Mobile Computer Technical Reference...
  • Page 31 SECTION 2 CMOS Setup " " " 6640 Mobile Computer Technical Reference...
  • Page 32 CMOS Setup Advanced " " 6640 Mobile Computer Technical Reference SECTION 2...
  • Page 33 SECTION 2 CMOS Setup " " " 6640 Mobile Computer Technical Reference...
  • Page 34 CMOS Setup SECTION 2 " " " " " " 6640 Mobile Computer Technical Reference...
  • Page 35 " NOTE: When the external floppy is attached, this port mode is ignored. However, the port itself must be enabled. Once the floppy drive is removed, the port mode is reset. " " " 6640 Mobile Computer Technical Reference CMOS Setup...
  • Page 36 CMOS Setup SECTION 2 " " " 2-10 6640 Mobile Computer Technical Reference...
  • Page 37 SECTION 2 CMOS Setup " " " 6640 Mobile Computer Technical Reference 2-11...
  • Page 38 CMOS Setup SECTION 2 " " " 2-12 6640 Mobile Computer Technical Reference...
  • Page 39 SECTION 2 CMOS Setup " " 6640 Mobile Computer Technical Reference 2-13...
  • Page 40 CMOS Setup Security " " 2-14 6640 Mobile Computer Technical Reference SECTION 2...
  • Page 41 SECTION 2 CMOS Setup " " " 6640 Mobile Computer Technical Reference 2-15...
  • Page 42 CMOS Setup Power " " 2-16 6640 Mobile Computer Technical Reference SECTION 2...
  • Page 43 SECTION 2 CMOS Setup " " " " " " 6640 Mobile Computer Technical Reference 2-17...
  • Page 44 CMOS Setup SECTION 2 Boot 2-18 6640 Mobile Computer Technical Reference...
  • Page 45 SECTION 2 CMOS Setup Information 6640 Mobile Computer Technical Reference 2-19...
  • Page 46 CMOS Setup Exit " " " " 2-20 6640 Mobile Computer Technical Reference SECTION 2...
  • Page 47 SECTION 2 CMOS Setup " " 6640 Mobile Computer Technical Reference 2-21...
  • Page 48 CMOS Setup SECTION 2 2-22 6640 Mobile Computer Technical Reference...
  • Page 49 Section 3 Hotkeys (Virtual Screen Keys) " " " " " " " " " " " " " " " " " " " " " " " " " " " " 6640 Mobile Computer Technical Reference...

  • Page 50: Dos Hotkeys

    DOS Virtual Keys " " " " " " " " " " " " NOTE: These button assignments are not programmable and retain these values regardless of how they may be reprogrammed in Windows. 6640 Mobile Computer Technical Reference SECTION 3...
  • Page 51 SECTION 3 Hotkeys (Virtual Screen Keys) Windows Hotkeys Hotkey Alignment Utility " 6640 Mobile Computer Technical Reference...
  • Page 52 Hotkeys (Virtual Screen Keys) SECTION 3 " " " " " " 6640 Mobile Computer Technical Reference...
  • Page 53 [Enter]. Do not touch the display to press the Cancel button (via the stylus pen or your finger) as this touch will be assumed to be a coordinate assignment. " " Hotkeys (Virtual Screen Keys) 6640 Mobile Computer Technical Reference...
  • Page 54 Hotkeys (Virtual Screen Keys) SECTION 3 " Change/New Dialog " " 6640 Mobile Computer Technical Reference...
  • Page 55 SECTION 3 Hotkeys (Virtual Screen Keys) " 6640 Mobile Computer Technical Reference...

  • Page 56: Hotkey Commands

    Hotkeys (Virtual Screen Keys) SECTION 3 " Hotkey Commands 6640 Mobile Computer Technical Reference...

  • Page 57: Registry Hotkey Values

    //BIOS call to increase contrast //Tells unit to suspend unconditionally //Request a suspend, may be rejected by the operating system or a device driver //Windows Key. (start) 0–Disabled, 1–Enabled [1–255] [1–255] [BitMasks 0|1|2|4|8 or combination] [0/1] [PO/FO/PF] 6640 Mobile Computer Technical Reference...
  • Page 58 Hotkeys (Virtual Screen Keys) " " " NOTE: The InputMode stays in the controller until set to a new value. 3-10 6640 Mobile Computer Technical Reference SECTION 3...

  • Page 59: Creating A Hotkey

    SECTION 3 Hotkeys (Virtual Screen Keys) Creating a Hotkey 6640 Mobile Computer Technical Reference 3-11...
  • Page 60 Hotkeys (Virtual Screen Keys) SECTION 3 3-12 6640 Mobile Computer Technical Reference...
  • Page 61 Section 4 Toolkit for the 6640 Computer " " " " " " " " " " " " " " " " " " " " " " " " " " " " 6640 Mobile Computer Technical Reference...

  • Page 62: Toolkit Set Up

    Toolkit for the 6640 Computer 6640 Toolkit Set Up " NOTE: If you need to do a manual installation of any of these components, locations for drivers or installation files are provided. " " " " " " " "...
  • Page 63 SECTION 4 Toolkit for the 6640 Computer " " " " " " " " " " " " 6640 Mobile Computer Technical Reference...

  • Page 64: Installing Toolkit Components

    Toolkit for the 6640 Computer SECTION 4 Installing Toolkit Components 6640 Mobile Computer Technical Reference...
  • Page 65 SECTION 4 Toolkit for the 6640 Computer " NOTE: Drag the scroll bar up and down to view all the components. 6640 Mobile Computer Technical Reference...
  • Page 66 Toolkit for the 6640 Computer SECTION 4 Component Executables 6640 Mobile Computer Technical Reference...
  • Page 67 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference...
  • Page 68 Toolkit for the 6640 Computer SECTION 4 " " 6640 Mobile Computer Technical Reference...

  • Page 69: Completing The Installation

    SECTION 4 Toolkit for the 6640 Computer Completing the Installation 6640 Mobile Computer Technical Reference...
  • Page 70 Toolkit for the 6640 Computer SECTION 4 4-10 6640 Mobile Computer Technical Reference...

  • Page 71: Setting Up The Driver

    SECTION 4 Toolkit for the 6640 Computer Setting Up the Driver " " " " " " " " " " " " " " " " " " " " " " 6640 Mobile Computer Technical Reference 4-11...
  • Page 72 Toolkit for the 6640 Computer SECTION 4 Setting Up the Ethernet NDIS5 Driver 4-12 6640 Mobile Computer Technical Reference...
  • Page 73 SECTION 4 Toolkit for the 6640 Computer System Properties 6640 Mobile Computer Technical Reference 4-13...
  • Page 74 Toolkit for the 6640 Computer SECTION 4 4-14 6640 Mobile Computer Technical Reference...
  • Page 75 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-15...
  • Page 76 Toolkit for the 6640 Computer SECTION 4 Update Device Driver Wizard 4-16 6640 Mobile Computer Technical Reference...
  • Page 77 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-17...
  • Page 78 Toolkit for the 6640 Computer SECTION 4 4-18 6640 Mobile Computer Technical Reference...
  • Page 79 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-19...
  • Page 80 " NOTE: The TDK CyberExpress 5600 modem driver runs from MS_DOS. Do not attempt to run this driver from the Windows DOS box. You must exit Windows and reboot the 6640 Computer to start from the MS_DOS prompt. " NOTE: Be sure to have the TDK Model DF5600 CyberExpress PC Modem Card inserted in the 6640 Computer before continuing.
  • Page 81 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-21...
  • Page 82 Toolkit for the 6640 Computer " NOTE: To return to the Windows desktop, reboot the 6640 Computer or type “win” at the prompt. 4-22 6640 Mobile Computer Technical Reference SECTION 4...
  • Page 83 SECTION 4 Toolkit for the 6640 Computer Setting Up the TDK Global Freedom 5660 6640 Mobile Computer Technical Reference 4-23...
  • Page 84 Toolkit for the 6640 Computer SECTION 4 Install Help Files 4-24 6640 Mobile Computer Technical Reference...
  • Page 85 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-25...
  • Page 86 Toolkit for the 6640 Computer SECTION 4 4-26 6640 Mobile Computer Technical Reference...
  • Page 87 SECTION 4 Toolkit for the 6640 Computer Install TDK PC Card Utilities 6640 Mobile Computer Technical Reference 4-27...
  • Page 88 Toolkit for the 6640 Computer SECTION 4 4-28 6640 Mobile Computer Technical Reference...
  • Page 89 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-29...
  • Page 90 Toolkit for the 6640 Computer SECTION 4 4-30 6640 Mobile Computer Technical Reference...
  • Page 91 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-31...
  • Page 92 Toolkit for the 6640 Computer SECTION 4 4-32 6640 Mobile Computer Technical Reference...
  • Page 93 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-33...
  • Page 94 Toolkit for the 6640 Computer Loading Pen Drivers " NOTE: The Pen Drivers are preinstalled on full and minimal loads. Load the Pen Drivers from the toolkit only if you need to reinstall. Loading Microsoft Pen Windows 2.0 4-34 6640 Mobile Computer Technical Reference...
  • Page 95 Use of this software requires an additional license. Talk to your sales representative. " NOTE: If you are outside of the United States or Canada, you can also call 425-356-1799 for support. Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-35...
  • Page 96 Toolkit for the 6640 Computer SECTION 4 4-36 6640 Mobile Computer Technical Reference...
  • Page 97 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-37...
  • Page 98 Toolkit for the 6640 Computer SECTION 4 4-38 6640 Mobile Computer Technical Reference...
  • Page 99 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-39...
  • Page 100 Toolkit for the 6640 Computer SECTION 4 4-40 6640 Mobile Computer Technical Reference...
  • Page 101 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-41...
  • Page 102 Toolkit for the 6640 Computer SECTION 4 4-42 6640 Mobile Computer Technical Reference...
  • Page 103 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-43...
  • Page 104 Toolkit for the 6640 Computer SECTION 4 4-44 6640 Mobile Computer Technical Reference...
  • Page 105 SECTION 4 Toolkit for the 6640 Computer Loading Digital I/O Driver " NOTE: This driver is installed on both the full and minimal loads. 6640 Mobile Computer Technical Reference 4-45...
  • Page 106 Toolkit for the 6640 Computer SECTION 4 Loading General Peripherals 4-46 6640 Mobile Computer Technical Reference...
  • Page 107 SECTION 4 Toolkit for the 6640 Computer Setting Up NPCP Printing 6640 Mobile Computer Technical Reference 4-47...
  • Page 108 Toolkit for the 6640 Computer SECTION 4 4-48 6640 Mobile Computer Technical Reference...
  • Page 109 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-49...
  • Page 110 Toolkit for the 6640 Computer SECTION 4 4-50 6640 Mobile Computer Technical Reference...
  • Page 111 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-51...
  • Page 112 Toolkit for the 6640 Computer SECTION 4 4-52 6640 Mobile Computer Technical Reference...
  • Page 113 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-53...
  • Page 114 Toolkit for the 6640 Computer SECTION 4 4-54 6640 Mobile Computer Technical Reference...
  • Page 115 SECTION 4 Toolkit for the 6640 Computer Loading Tethered Scanner 6640 Mobile Computer Technical Reference 4-55...
  • Page 116 Toolkit for the 6640 Computer Setting Up the USB TEAC Floppy Driver " NOTE: This driver is available on both full and minimal loads. 4-56 6640 Mobile Computer Technical Reference SECTION 4...
  • Page 117 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-57...
  • Page 118 Toolkit for the 6640 Computer Loading APM Guard Driver " NOTE: This driver is available on both full and minimal loads. Loading Battery Meter 4-58 6640 Mobile Computer Technical Reference SECTION 4...
  • Page 119 SECTION 4 Toolkit for the 6640 Computer Radhook Radio Components 6640 Mobile Computer Technical Reference 4-59...

  • Page 120: Setting Up The Ashtech G8 Gps Radio

    Setting Up the Ashtech G8 GPS Radio " NOTE: “HyperTerminal” is a standard Windows application which may al- ready be installed on the 6640 Computer. If the application is installed, use the “HyperTerminal” application via the Windows desk- top, by selecting Start...
  • Page 121 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-61...
  • Page 122 Toolkit for the 6640 Computer SECTION 4 4-62 6640 Mobile Computer Technical Reference...
  • Page 123 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-63...
  • Page 124 Toolkit for the 6640 Computer SECTION 4 4-64 6640 Mobile Computer Technical Reference...
  • Page 125 SECTION 4 Toolkit for the 6640 Computer Loading GSM Motorola D10 Radio 6640 Mobile Computer Technical Reference 4-65...

  • Page 126: Setting Up The Mobitex Rim 902 Radio

    Toolkit for the 6640 Computer SECTION 4 Setting Up the Mobitex Rim 902 Radio 4-66 6640 Mobile Computer Technical Reference...

  • Page 127: Setting Up The Proxim Lan Radio

    SECTION 4 Toolkit for the 6640 Computer Setting Up the Proxim LAN Radio 6640 Mobile Computer Technical Reference 4-67...
  • Page 128 Toolkit for the 6640 Computer SECTION 4 4-68 6640 Mobile Computer Technical Reference...
  • Page 129 SECTION 4 Toolkit for the 6640 Computer Setting Up the Radhook Driver Setting Up the Sierra Wireless Inc. SB300 6640 Mobile Computer Technical Reference 4-69...
  • Page 130 Toolkit for the 6640 Computer SECTION 4 Unzip Sierra Wireless Files 4-70 6640 Mobile Computer Technical Reference...
  • Page 131 SECTION 4 Toolkit for the 6640 Computer Setup Wireless Expert 6640 Mobile Computer Technical Reference 4-71...
  • Page 132 Toolkit for the 6640 Computer SECTION 4 4-72 6640 Mobile Computer Technical Reference...
  • Page 133 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-73...
  • Page 134 Toolkit for the 6640 Computer SECTION 4 4-74 6640 Mobile Computer Technical Reference...
  • Page 135 SECTION 4 Toolkit for the 6640 Computer Configure for Sierra Wireless Modem 6640 Mobile Computer Technical Reference 4-75...
  • Page 136 Toolkit for the 6640 Computer SECTION 4 4-76 6640 Mobile Computer Technical Reference...
  • Page 137 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-77...
  • Page 138 Toolkit for the 6640 Computer SECTION 4 Setting Up to Create Recovery Media " " " " 4-78 6640 Mobile Computer Technical Reference...
  • Page 139 SECTION 4 Toolkit for the 6640 Computer Bootable Network Recovery Diskette 6640 Mobile Computer Technical Reference 4-79...
  • Page 140 Toolkit for the 6640 Computer " NOTE: It is recommended that you do not use a computer name or a share name with a space or a wild character, such as an asterisk (*), a semicolon (:), or an exclamation point (!). These characters or a blank space may cause confusion.
  • Page 141 SECTION 4 Toolkit for the 6640 Computer " " 6640 Mobile Computer Technical Reference 4-81...
  • Page 142 Toolkit for the 6640 Computer SECTION 4 " 4-82 6640 Mobile Computer Technical Reference...
  • Page 143 SECTION 4 Toolkit for the 6640 Computer " NOTE: Do not use the C: drive as the destination directory as it will over- write AUTOEXEC.BAT, MSDOS.SYS, and other system files. 6640 Mobile Computer Technical Reference 4-83...
  • Page 144 Toolkit for the 6640 Computer SECTION 4 4-84 6640 Mobile Computer Technical Reference...
  • Page 145 SECTION 4 Toolkit for the 6640 Computer Bootable Network Cloning Diskette 6640 Mobile Computer Technical Reference 4-85...
  • Page 146 Toolkit for the 6640 Computer " NOTE: We recommend that you avoid a computer name or a share name with a space or a wild character, such as an asterisk (*), a semicolon (:), or an exclamation point (!). These characters or a blank space may cause unpredictable results.
  • Page 147 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-87...
  • Page 148 Toolkit for the 6640 Computer SECTION 4 4-88 6640 Mobile Computer Technical Reference...
  • Page 149 SECTION 4 Toolkit for the 6640 Computer " NOTE: Do not use the “C:\” root directory as the destination directory be- cause it will overwrite AUTOEXEC.BAT, MSDOS.SYS, and other system files. 6640 Mobile Computer Technical Reference 4-89...
  • Page 150 Toolkit for the 6640 Computer Bootable Network Diskette " NOTE: Do not use the “C:\” root directory as the destination directory be- cause it will overwrite AUTOEXEC.BAT, MSDOS.SYS, and other system files. 4-90 6640 Mobile Computer Technical Reference SECTION 4...
  • Page 151 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-91...
  • Page 152 Toolkit for the 6640 Computer SECTION 4 4-92 6640 Mobile Computer Technical Reference...
  • Page 153 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-93...
  • Page 154 XMS Bootable Network Frequency ROM Binary Image " NOTE: You can create the XMS binary image on the 6640 Computer only if it has a parallel floppy drive attached. Otherwise, it must be done on a different computer that does have an A: in Windows.
  • Page 155 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-95...
  • Page 156 Toolkit for the 6640 Computer " NOTE: If you do not have a floppy disk in the parallel drive, the following message appears. Follow the information, then click the OK button to continue. 4-96 6640 Mobile Computer Technical Reference SECTION 4...
  • Page 157 SECTION 4 Toolkit for the 6640 Computer " " " 6640 Mobile Computer Technical Reference 4-97...
  • Page 158 Toolkit for the 6640 Computer " " " NOTE: RIMAGE.EXE does not work well with subdirectories and will not properly recreate subdirectories in the XMS Binary image. Thus, do not make subdirectories off the “Image” subdirectory. Loading the Retro98 Installation...
  • Page 159 SECTION 4 Toolkit for the 6640 Computer Setting Up the Video Driver 6640 Mobile Computer Technical Reference 4-99...
  • Page 160 Toolkit for the 6640 Computer SECTION 4 4-100 6640 Mobile Computer Technical Reference...
  • Page 161 SECTION 4 Toolkit for the 6640 Computer 6640 Mobile Computer Technical Reference 4-101...

  • Page 162: Support Files

    Toolkit for the 6640 Computer 6640 Support Files 664NVPRM.EXE CMOS.EXE CRC32.EXE 4-102 6640 Mobile Computer Technical Reference SECTION 4...
  • Page 163 SECTION 4 Toolkit for the 6640 Computer FLASH42.EXE MT.BAT PARTUTIL.EXE 6640 Mobile Computer Technical Reference 4-103...
  • Page 164 Toolkit for the 6640 Computer SECTION 4 PHDISK.EXE SAVECMOS.EXE WIPECMOS.COM 4-104 6640 Mobile Computer Technical Reference...

  • Page 165: Desktop Applications

    Section 5 Desktop Applications " " " " " " " " " " " " " " " " " " " " " " " " " " " " Pen Recognition Services 6640 Mobile Computer Technical Reference...
  • Page 166 Desktop Applications SECTION 5 Microsoft Pen Services 2.0 6640 Mobile Computer Technical Reference...
  • Page 167 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference...
  • Page 168 Desktop Applications SECTION 5 6640 Mobile Computer Technical Reference...
  • Page 169 SECTION 5 Desktop Applications CIC PenX Recognition Software " " " " " " 6640 Mobile Computer Technical Reference...
  • Page 170 Desktop Applications SECTION 5 " 6640 Mobile Computer Technical Reference...
  • Page 171 SECTION 5 Desktop Applications Battery Meter Utility 6640 Mobile Computer Technical Reference...
  • Page 172 Desktop Applications SECTION 5 Alarm Settings 6640 Mobile Computer Technical Reference...

  • Page 173: Display Properties

    SECTION 5 Desktop Applications Display Properties " " 6640 Mobile Computer Technical Reference...
  • Page 174 Desktop Applications SECTION 5 5-10 6640 Mobile Computer Technical Reference...
  • Page 175 SECTION 5 Desktop Applications " " " " 6640 Mobile Computer Technical Reference 5-11...
  • Page 176 Desktop Applications SECTION 5 " 5-12 6640 Mobile Computer Technical Reference...
  • Page 177 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-13...
  • Page 178 Desktop Applications SECTION 5 " " " 5-14 6640 Mobile Computer Technical Reference...
  • Page 179 SECTION 5 Desktop Applications Exit 6640 Mobile Computer Technical Reference 5-15...

  • Page 180: Radio Components

    Desktop Applications Radio Components " " " " " " Registry Editor 5-16 6640 Mobile Computer Technical Reference SECTION 5...
  • Page 181 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-17...
  • Page 182 Desktop Applications SECTION 5 5-18 6640 Mobile Computer Technical Reference...

  • Page 183: Ping Utility

    SECTION 5 Desktop Applications Ping Utility Async Ping 6640 Mobile Computer Technical Reference 5-19...
  • Page 184 Desktop Applications SECTION 5 Host Info Quit 5-20 6640 Mobile Computer Technical Reference...

  • Page 185: Ashtech G8 Gps

    Ashtech G8 GPS HyperTerminal " NOTE: “HyperTerminal” is a standard Windows application which may al- ready be installed on the 6640 Computer. If the application is installed, use the “HyperTerminal” application via the Windows desk- top, by selecting Start Programs...
  • Page 186 Desktop Applications " NOTE: The required settings may change. Consult the README.TXT file for current information. 5-22 6640 Mobile Computer Technical Reference SECTION 5...
  • Page 187 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-23...
  • Page 188 Desktop Applications SECTION 5 5-24 6640 Mobile Computer Technical Reference...
  • Page 189 SECTION 5 Desktop Applications Ashtech Evaluate Setting Up the Ashtech Evaluate Application Using the Ashtech Evaluate Application 6640 Mobile Computer Technical Reference 5-25...
  • Page 190 Desktop Applications SECTION 5 5-26 6640 Mobile Computer Technical Reference...
  • Page 191 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-27...
  • Page 192 Desktop Applications SECTION 5 " 5-28 6640 Mobile Computer Technical Reference...
  • Page 193 SECTION 5 Desktop Applications " 6640 Mobile Computer Technical Reference 5-29...
  • Page 194 Desktop Applications SECTION 5 GPS Receiver Terminal 5-30 6640 Mobile Computer Technical Reference...

  • Page 195: Registry Entries

    SECTION 5 Desktop Applications Skychart Registry Entries 6640 Mobile Computer Technical Reference 5-31...

  • Page 196: Gsm Motorola D10

    Desktop Applications GSM Motorola D10 " NOTE: “HyperTerminal” is a standard Windows application which may al- ready be installed on the 6640 Computer. If the application is installed, use the “HyperTerminal” application via the Windows desk- top, by selecting Start nications The “C:\6640Utilities\gsm”...
  • Page 197 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-33...
  • Page 198 Desktop Applications SECTION 5 5-34 6640 Mobile Computer Technical Reference...
  • Page 199 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-35...

  • Page 200: Mobitex Rim 902

    Desktop Applications Mobitex Rim 902 " NOTE: A Mobitex Rim 902 radio must be installed in the 6640 Computer for these applications to work. WRADTST 5-36 6640 Mobile Computer Technical Reference SECTION 5...
  • Page 201 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-37...

  • Page 202: Site Survey And Configuration Tool

    Registry Entries Proxim LAN " NOTE: Be sure to have the “Proxim RangeLAN2 7400 PC Card Adapter” installed in a PC Card before turning on the 6640 Computer. Site Survey and Configuration Tool 5-38 6640 Mobile Computer Technical Reference SECTION 5...
  • Page 203 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-39...
  • Page 204 Desktop Applications SECTION 5 Masters 5-40 6640 Mobile Computer Technical Reference...
  • Page 205 SECTION 5 Desktop Applications Snoop " " " 6640 Mobile Computer Technical Reference 5-41...
  • Page 206 Desktop Applications SECTION 5 Configuration 5-42 6640 Mobile Computer Technical Reference...
  • Page 207 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-43...
  • Page 208 Desktop Applications Site Survey " NOTE: If no nodes are displayed, then none of the matching security IDs and Domains are within the range of this unit. 5-44 6640 Mobile Computer Technical Reference SECTION 5...
  • Page 209 SECTION 5 Desktop Applications Adding a New RangeLAN2 7400 PC Card Adapter 6640 Mobile Computer Technical Reference 5-45...
  • Page 210 Desktop Applications SECTION 5 5-46 6640 Mobile Computer Technical Reference...
  • Page 211 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-47...
  • Page 212 Desktop Applications SECTION 5 5-48 6640 Mobile Computer Technical Reference...
  • Page 213 SECTION 5 Desktop Applications " NOTE: You may need to set up an IP address for the 6640 Computer if it does not already have one assigned. 6640 Mobile Computer Technical Reference 5-49...
  • Page 214 Desktop Applications SECTION 5 Reinstalling the RangeLAN2 7400 PC Card Network Adapter Remove Old RangeLAN2 7400 PC Card Adapter 5-50 6640 Mobile Computer Technical Reference...
  • Page 215 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-51...
  • Page 216 Desktop Applications SECTION 5 5-52 6640 Mobile Computer Technical Reference...
  • Page 217 SECTION 5 Desktop Applications Verify RangeLAN2 PC Card Adapter Removal " " 6640 Mobile Computer Technical Reference 5-53...
  • Page 218 Desktop Applications SECTION 5 Replace with New RangeLAN2 Adapter 5-54 6640 Mobile Computer Technical Reference...
  • Page 219 SECTION 5 Desktop Applications Update Network Properties 6640 Mobile Computer Technical Reference 5-55...
  • Page 220 Desktop Applications SECTION 5 5-56 6640 Mobile Computer Technical Reference...
  • Page 221 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-57...

  • Page 222: Sierra Wireless Inc

    Desktop Applications Radhook " NOTE: You do have the option to change this directory. Sierra Wireless Inc. Watcher 5-58 6640 Mobile Computer Technical Reference SECTION 5...
  • Page 223 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-59...
  • Page 224 Desktop Applications HyperTerminal " NOTE: “HyperTerminal” is a standard Windows application which may al- ready be installed on the 6640 Computer. If the application is installed, use the “HyperTerminal” application via the Windows desk- top, by selecting Start nications The “C:\6640Utilities\sb300\hypertrm” directory also contains the “HyperTerminal”...
  • Page 225 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-61...
  • Page 226 Desktop Applications SECTION 5 5-62 6640 Mobile Computer Technical Reference...
  • Page 227 SECTION 5 Desktop Applications 6640 Mobile Computer Technical Reference 5-63...

  • Page 228: Create Shortcut Icons

    Desktop Applications Create Shortcut Icons 5-64 6640 Mobile Computer Technical Reference " C:\Program Files\Watcher\watcher.exe " C:\Program Files\Watcher\SwiExpert.exe SECTION 5...
  • Page 229 Section 6 Minimal Windows 98 Load " " " " " " " " " " " " " " " " " " " " " " " " " " " " 6640 Mobile Computer Technical Reference...
  • Page 230 Minimal Windows 98 Load Application Integration 6640 Mobile Computer Technical Reference " " " SECTION 6...
  • Page 231 SECTION 6 Minimal Windows 98 Load " NOTE: You must leave sufficient disk space for virtual memory manage- ment or disable virtual memory. 6640 Mobile Computer Technical Reference...
  • Page 232 Minimal Windows 98 Load SECTION 6 http://www.sysinternals.com/filemon.htm 6640 Mobile Computer Technical Reference...
  • Page 233 SECTION 6 Minimal Windows 98 Load EXAMPLE: Below is a sample FILEMON screen: 6640 Mobile Computer Technical Reference...
  • Page 234 Minimal Windows 98 Load SECTION 6 6640 Mobile Computer Technical Reference...
  • Page 235 –LB: Listing is a DOS batch file that can be used to copy the touched files. <program>: The DOS program to monitor. EXAMPLE: logfiles –DD –FDIR.ALZ –LA command /c dir d:*. /s logfiles –FWINCOPY.BAT –LB c:windowswin.com then execute batch file in DOS box: WINCOPY c: c: Minimal Windows 98 Load 6640 Mobile Computer Technical Reference...
  • Page 236 Minimal Windows 98 Load Create a Parent (Reference) Load Run LOGFILES.EXE EXAMPLE: logfiles –Fwincopy.bat –LB c:\windows\win.com Exercise Desired Functionality 6640 Mobile Computer Technical Reference " " SECTION 6...
  • Page 237 Examples files in “windows\command” or “windows\inf” – shr io.sys – shr msdos.sys – a config.sys – a autoexec.bat – a command.com – a windows\setver.exe – a windows\himem.sys – a windows\dblbuff.sys – a windows\ifshlp.sys – a windows\system\iosubsys\*.* 6640 Mobile Computer Technical Reference Minimal Windows 98 Load...
  • Page 238 Minimal Windows 98 Load SECTION 6 " " " 6-10 6640 Mobile Computer Technical Reference...

  • Page 239: Recovery Procedures

    Section 7 Recovery Procedures " " " " " " " " " " " " " " " " " " " " " " " " " " " " 6640 Mobile Computer Technical Reference...
  • Page 240 Recovery Procedures Assumptions " " " " " " 6640 Mobile Computer Technical Reference SECTION 7...

  • Page 241: Required Components

    SECTION 7 Required Components " " " " " " " " " " Recovery Procedures 6640 Mobile Computer Technical Reference...

  • Page 242: Bios Recovery Procedure

    Recovery Procedures SECTION 7 BIOS Recovery Procedure 6640 Mobile Computer Technical Reference...

  • Page 243: Shared Location Recovery Process

    SECTION 7 Shared Location Recovery Process Before Reimaging 6640 Computer Determine Server Name Ensure Enabled File-Sharing Recovery Procedures 6640 Mobile Computer Technical Reference...

  • Page 244: Determine Name Of Shared Location

    Recovery Procedures SECTION 7 Determine Name of Shared Location 6640 Mobile Computer Technical Reference...
  • Page 245 SECTION 7 Recovery Procedures Ensure Protocols Are Available 6640 Mobile Computer Technical Reference...

  • Page 246: Create Network Recovery Media

    Recovery Procedures SECTION 7 Create Network Recovery Media 6640 Mobile Computer Technical Reference...

  • Page 247: Shared Location Reimaging Process

    SECTION 7 " " Shared Location Reimaging Process " 6640 Mobile Computer Technical Reference Recovery Procedures ½...
  • Page 248 Recovery Procedures " NOTE: You will need an external keyboard on the 6640 Computer to contin- ue this recovery procedure. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Imaging of 6640 complete Remove any Diskettes from A: Power off system before running windows A:\>_ ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 7-10 6640 Mobile Computer Technical Reference "...

  • Page 249: System Cloning Process

    SECTION 7 System Cloning Process Create an Image " " " " 6640 Mobile Computer Technical Reference Recovery Procedures 7-11...

  • Page 250: Clone Source Computer Image

    Recovery Procedures " NOTE: You need the external keyboard on both the source 6640 Computer and the target 6640 Computer to continue. Clone Source Computer Image Image Target Computer 7-12 6640 Mobile Computer Technical Reference SECTION 7...

  • Page 251: Advanced Topics

    Image file name is used, the process pauses for five seconds to al- low you to override the default using the external keyboard. If you change the default, your change (the override name) is saved as the new default. Recovery Procedures 6640 Mobile Computer Technical Reference 7-13...
  • Page 252 Recovery Procedures Intermec Developed Supporting Programs " " " " 7-14 6640 Mobile Computer Technical Reference SECTION 7...
  • Page 253 INDEX " " " " " " " " " " " " " " " " " " " " " " " " " " " " NOTE: NUMBERS 6640 Mobile Computer Technical Reference Index-1...
  • Page 254 INDEX Index-2 6640 Mobile Computer Technical Reference...
  • Page 255 6640 Mobile Computer Technical Reference INDEX Index-3...
  • Page 256 INDEX Index-4 6640 Mobile Computer Technical Reference...
  • Page 257 INDEX 6640 Mobile Computer Technical Reference Index-5...
  • Page 258 INDEX Index-6 6640 Mobile Computer Technical Reference...

Table of Contents
