Intermec 6300 Installation Instructions Manual

Multi dock
Hide thumbs Also See for 6300:

Advertisement

Available languages

Available languages

Quick Links

Download this manual See also: User Manual
Installation Instructions
P/N 962-020-001
Revision A
April 1996
Multidock
Power Supply
6300 Multi Dock
P/N 962-020-001 Revision A

Advertisement

loading

Related Manuals for Intermec 6300

Summary of Contents for Intermec 6300

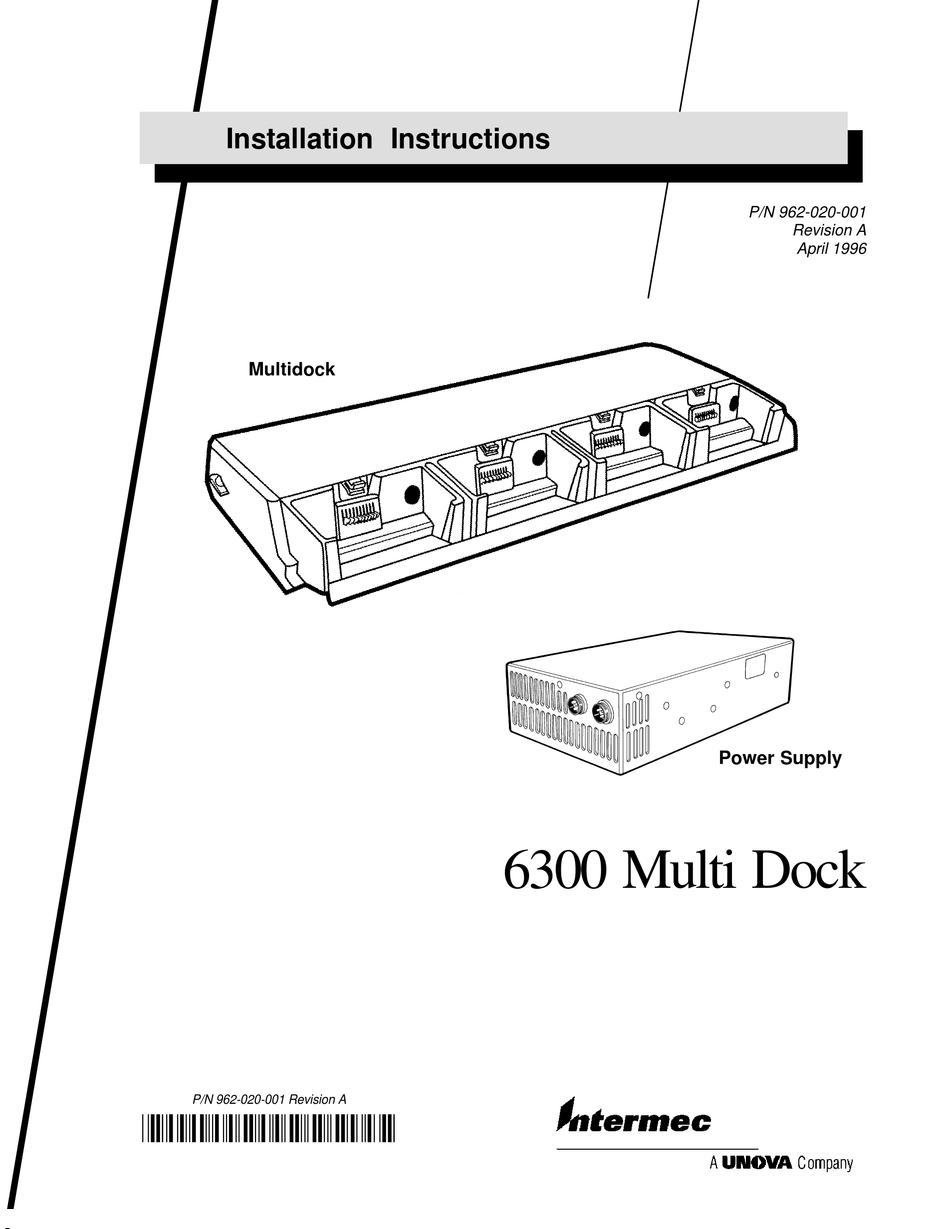

  • Page 1 Installation Instructions P/N 962-020-001 Revision A April 1996 Multidock Power Supply 6300 Multi Dock P/N 962-020-001 Revision A...
  • Page 2 Item# Description power supply power cable AC input cord RS-485 terminator LAN cable wall bracket wall bracket, pwr. supply Description 10.0 2.05 851-027-00X ref.* 216-932-00X ref.* 321-054-003 ref.* 216-975-001 ref.* 216-926-00X ref.* 699-883-002 ref.* 699-894-002 ref.* Dimensions (lbs) (length, width/depth, height) 26”...

  • Page 3: Introduction To Installation

    Introduction to Installation Mounting Distances Vertical clearance (minimum) for terminal insertion/removal. Horizontal clearance (minimum) for connecting RS485 cables. Distance (maximum) to ac power for power supplies. Distance (maximum) from power supply to multidocks.

  • Page 4: Final Connections

    Final Connections Connect all communication cables, as required. Connect power cables from multidocks to power supplies. Connect ac power cords to power supplies. Plug the other end of ac power cords into wall outlets.
  • Page 5 Introduction à l’installation Espacement d’installation Hauteur libre (minimum) pour l’installation ou l’enlèvement du ter- minal. Dégagement horizontal (minimum) pour le branchement des câbles RS485. Distance (maximum) entre la prise de courant alternatif et le bloc d’alimentation. Distance (maximum) entre le bloc d’alimentation et la station multi– accueil.
  • Page 7 Connexions finales Brancher tous les câbles de communication. Brancher les câbles d’alimentation des stations multi-accueil sur les blocs d’alimentation. Connecter une extrémité des cordons d’alimentation c.a. sur les blocs d’alimentation. Brancher l’autre extrémité des cordons d’alimentation c.a. dans les prises murales.
  • Page 8 15” Minimum Vertical Distance Horizontal 21” Minimum Distance (note: can be reduced to 10-inches when using LAN communication) Figure 1 Minimum Clearances for Mounting Bracket...
  • Page 9 Mounting Hole Vertical Spacing ” Mounting Holes 16” on-center Use four 1/4-inch screws or bolts (lag screw shown for use in stud wall) Keyhole Cut-outs Hang multi dock on these when bracket is secure. Figure 2 Mounting Bracket Detail...
  • Page 10 Connectors DC Power Connector RS485 Connector (one on each end of multi dock) Connector Figure 3 Multi Dock Connectors (bottom view)
  • Page 11 ” 4.9” ” ” 2.0” Mounting Holes 2-inch vertical spacing 2-3/4 inch horizontal spacing Figure 4 Power Supply Wall Bracket (NPN: 699-894-002)
