Instructions
Winch Kit for RoadLazer
RoadPak HD
For use on RoadPak
Model 25M713
Important Safety Instructions
Read all warnings and instructions in this manual and in related manuals.
Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
Related Manuals:
3A5384
Operation
Line Striping System
™
Line Striping Systems to lift the gun arm during spray operations.
™
™
RoadPak
™
3A5405B
EN

Advertisement

loading

Related Manuals for Graco 25M713

Summary of Contents for Graco 25M713

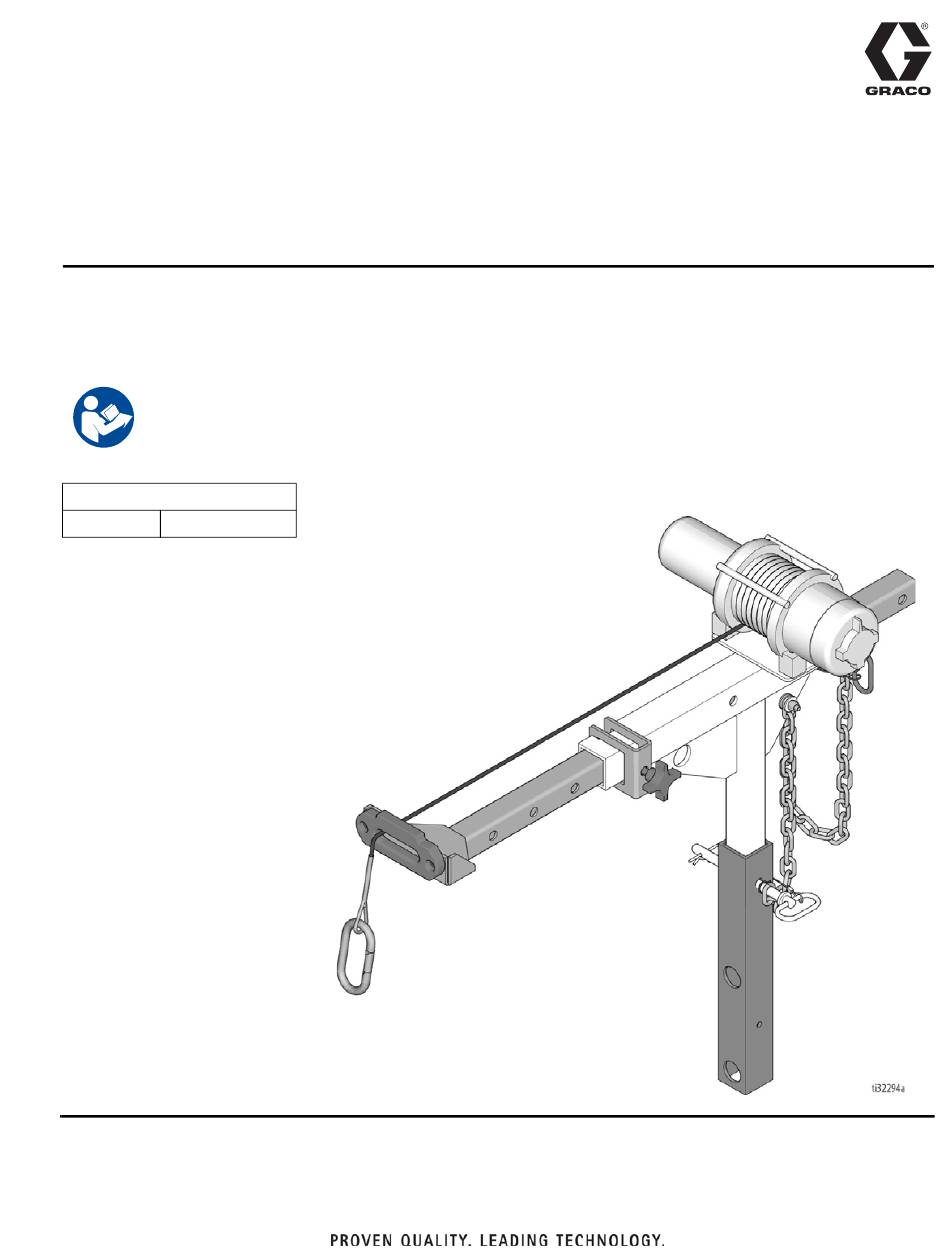

  • Page 1 For use on RoadPak Line Striping Systems to lift the gun arm during spray operations. ™ Model 25M713 Important Safety Instructions Read all warnings and instructions in this manual and in related manuals. Be familiar with the controls and the proper usage of the equipment.

  • Page 2: Installation

    Installation Installation 1. Assemble adapter bracket (1) to height adjustment 3. Use bolts, washers, and nuts (supplied) to bracket on both sides. Fasten with bolts (6), assemble cable guide onto winch arm bracket (3). washers (7), and nuts (8). Torque to 28 ft-lb. 4.
  • Page 3 Installation 5. Insert winch assembly into one of the adapter brack- 7. Install split sleeving (26) over cables (25) and cut to ets (1) and secure with pin (9). needed length. 8. Connect blue and yellow cables (25) from the winch terminals to the blue and yellow color-coded termi- nals on the winch switch terminal.

  • Page 4: Wiring Diagram

    Wiring Diagram 10. Adjust the winch arm (3) so it is in line with the lifting 12. When transporting the RoadPak system, the gun point on the gun arm. Ensure the winch arm is arm must be properly stowed (see manual 3A5384) secured by pinning it and tightening the extension and the winch arm must be adjusted to fit within the clamp (15).

  • Page 5: Parts List

    Parts List Parts List Ref. Part Description Qty. Ref. Part Description Qty. 111040 NUT, lock, insert, nylock, 5/16 16G688 BRACKET, adapter, winch, painted 100023 WASHER, flat 24G839 ARM, winch, painted 238813 CLAMP, extension 24G841 BRACKET, arm, winch, painted 17U973 SWITCH, corded remote 25M738 WINCH, RoadLazer 16H068 CARBINER, 1-3/8 in.
  • Page 6 Original instructions. This manual contains English. MM 3A5405 Graco Headquarters: Minneapolis International Offices: Belgium, China, Japan, Korea GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA Copyright 2016, Graco Inc. All Graco manufacturing locations are registered to ISO 9001. www.graco.com...
