TS-PEC002

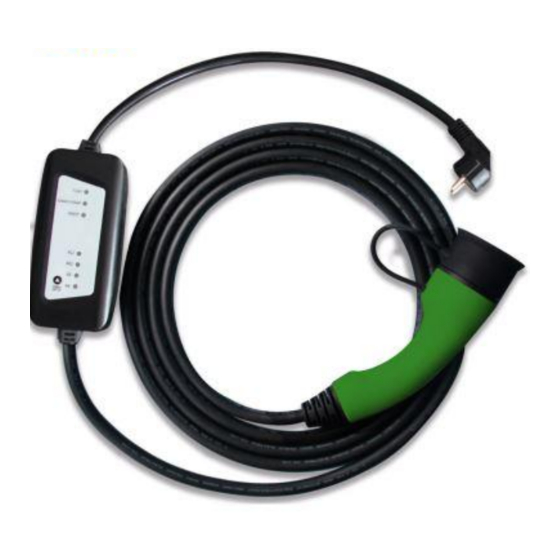

Portable EV Charging Cable is so convenient , portable, and plug-and-play. This product
is independently researched and accordance with the latest national standards. It has
good performance when charging. There are more electric protections and direct human-
computer interaction interface. Control box is durable by adopting ergonomic surface
design which makes the shell become solider and stronger.
Advertisement
Table of Contents
Related Manuals for Teison TS-PEC002
Summary of Contents for Teison TS-PEC002

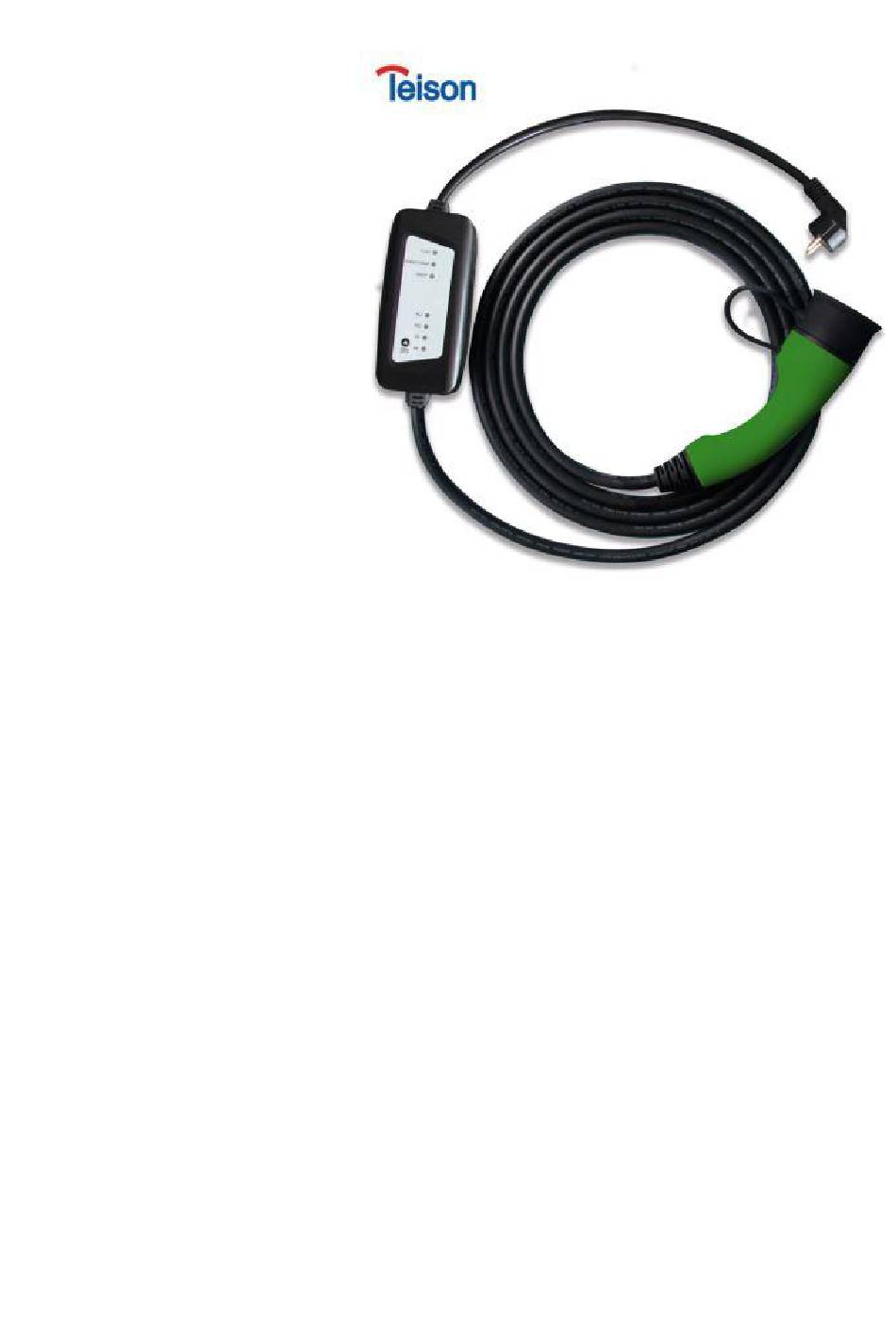

- Page 1 TS-PEC002 Portable EV Charging Cable is so convenient , portable, and plug-and-play. This product is independently researched and accordance with the latest national standards. It has good performance when charging. There are more electric protections and direct human- computer interaction interface. Control box is durable by adopting ergonomic surface...
-
Page 2: Technical Specifications
Technical Specifications Dimension Control Box:170(L)*84(M)*42mm(H) Device cable: 6M or customized(L) Install Portable, plug and play Power Supply AC power supply socket Voltage(choose one only) AC220V/120V/208V/240V Current 6A Min - 16A Max Frequency 50Hz Or 60Hz Safety Protection Leakage current; under and over voltage, frequency, current;... -
Page 3: Function Feature
Function Feature 1. Functions Of Circuit Control Box 2. EV Charging Control box with LED Display 3. Leakage protection(Restart) 4. Over-voltage or Low-voltage protection 5. Over-load protection (Restart after Self-checking ) 6. Lightning protection 7. Over-heat protection(Cooling down to restart) 8. -
Page 4: Led Display Status
LED display status... - Page 5 11LED Display condition Status Normal Short Circuit Blink Once Leakage Current Abnormal Blink Twice Input Connection Abnormal Blink Thrice Input Plug High Temperatu Fault Blink Quartet Over Current Blink Quint CP Signal Abnorm Blink Sext Control Box High Temperatu Blink Septet CP Signal Duty Ratio Abnormal Charging Ready/charge...
- Page 6 Disconnected Power Is Normal Blink Power Over Voltage power Power Under Voltage Output Current:12A Blink Output Current:13A Output Current:10A Blink Output Current:11A Output Current:8A Blink Output Current:9A Output Current:6A Blink Output Current:7A 8A On Output Current:14A 6A On 8A & 6A 8A On Output Current:15A 6A Blink...
-
Page 7: Security Statements
Step 4. Factory default current is 13A, please press the button of "CURRENT SETTING" if it does not match the charging requirement. The current increases 1A while press once. The current will be the minimum value (6A) when continue to press once if the current is 16A OR 13A.The device reproduces the last setting when we charge next time.
