TS-PEC-002
Portable EV charger
Manual
Yangzhou Teison New Energy Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-PEC-002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teison TS-PEC-002

Summary of Contents for Teison TS-PEC-002

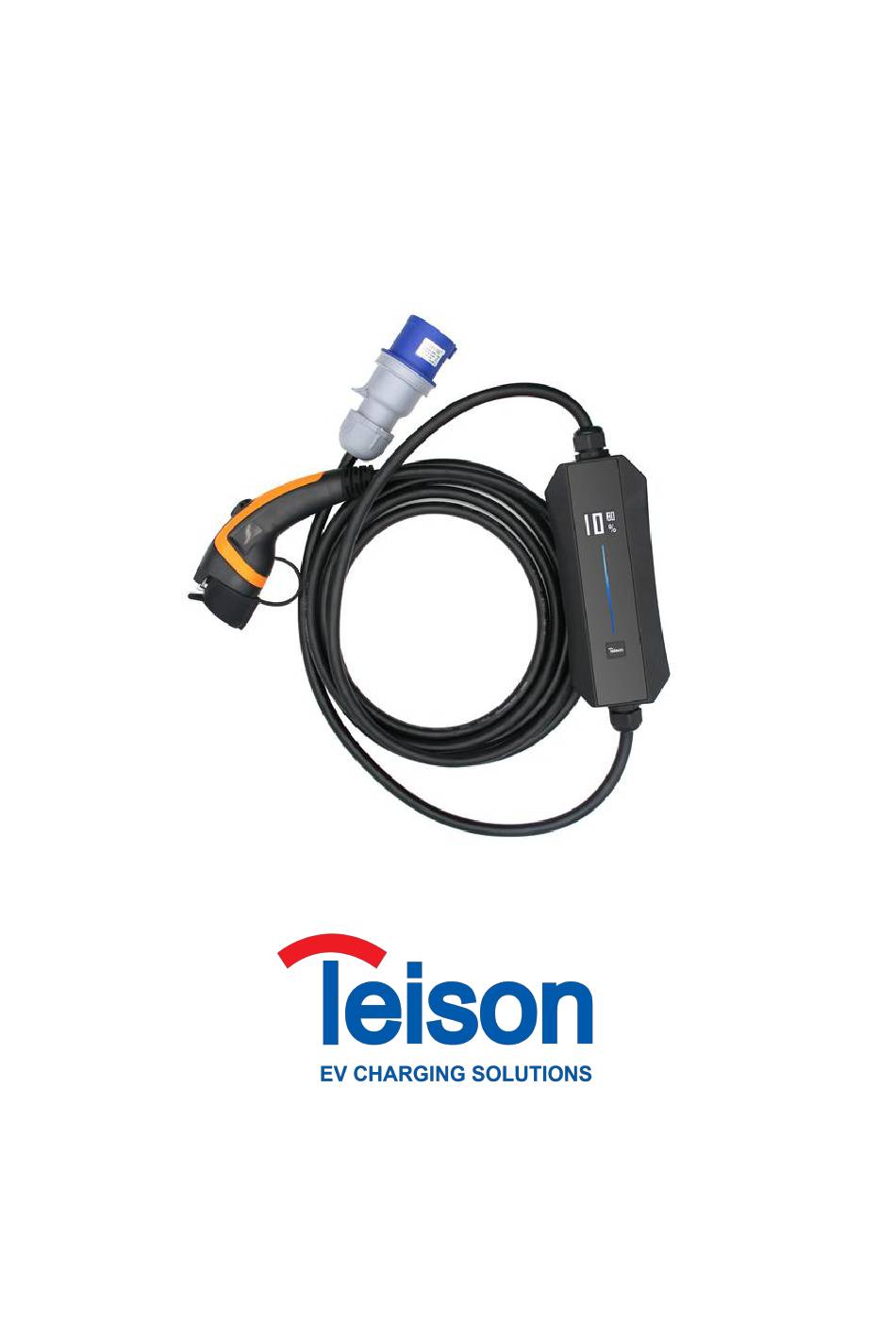

  • Page 1 TS-PEC-002 Portable EV charger Manual Yangzhou Teison New Energy Co., Ltd.

  • Page 2: Table Of Contents

    Content Safety Guidance PRODUCT OVERVIEW Product Appearance................4 Reference Standard................5 Product Specification................5 Product Packing..................6 Charging Principle................6 Technology Index Environmental Performance..............7 Electrical Properties................7 Mechanical Properties................7 Product Function.................8 Instructions and Status Display.........8 Troubleshooting............11 After Sale service..............13...

  • Page 3: Safety Guidance

    Safety Guidance Warning Strictly forbidden for non-professionals to modify, disassemble or repair the equipment.  External wires or adapters/converters are strictly prohibited.  Stop using the device immediately when charging failure or abnormality occurs.  It is strictly forbidden to have water contact plugs on your hands. ...

  • Page 4: Product Overview

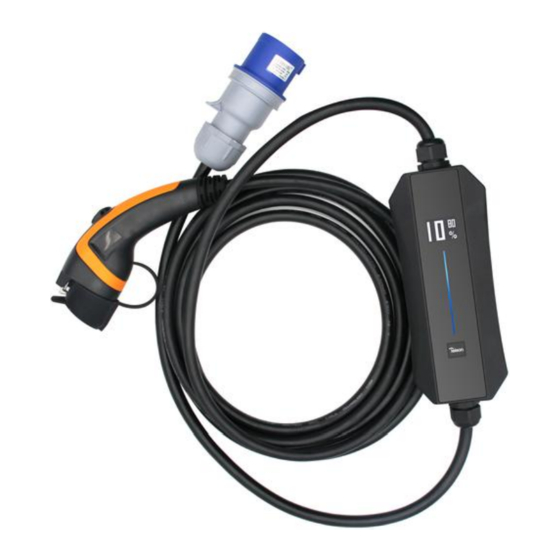

    1.Product Overview The type 2 portable EV charger is a household charging device for electric vehicles. Its appearance is shown in Figure 1 and its interface is shown in Figure 2. The product meets the requirements of IEC 61851-1:2017 and IEC 62752:2017 Mode 2 AC charging system.

  • Page 5: Reference Standard

    Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories SAE_J1772-20 SAE_Electric_Vehicle_and_Plug_in_Hybrid_Electric_Vehicle _Conductive_Charge_Coupler Product Specification Subject Specification TS-PEC-002 Item No. Product Type 2 Portable EV Charger Type 2 16A/32A Type F plug Power side cable Length 700 mm,Specification 3*2.5mm²/3*6mm²...

  • Page 6: Product Packing

    Weight ≤3.6kg Note：Actual size is subject to the actual product Product Package Five-layer corrugated carton packaging is used for transportation， measured42 0mm（L）x 420mm（W）x 200 mm（H）. 2PCS/CTN, together with a product manual in it. Charging Principle Figure3. Charging Principle Charging Charging Successful CP signal voltage①...

  • Page 7: Technology Index

    Technology Index 2.1 Environmental Performance Article Specification Working temperature -30℃~~65℃ Storage temperature -40℃~~80℃ Working humidity 5%~~95%，No condensation Control box IP67 Plug on car（Unconnected）IP54 IP level Plug on car（connected）IP55 Altitude ≤2000m Salt spray test MEET EN 62752:2017 Atmospheric pressure 80kPa~101kPa Temperature and MEET EN 62752:2017 humidity cycle Note：...

  • Page 8: Product Function

    plug-out AC charging 10000 times plug Control box Meet: UL94 LV: V-0 Flammability EV Charging Meet: UL94 LV: V-0 Plug EV Charging Meet: UL1581 LV: VW-1 Cable EV rolling test Meet: IEC 62752:2017 Cable Deflection Meet: IEC 62752:2017 Drop Meet: IEC 62752:2017 Plug-in and plug-out test is under no-load condition Note：...
  • Page 9 always on, and the screen will display the gear and status. Step 2: Connect the vehicle and insert the plug into the vehicle socket. The control panel will automatically detect the connection status of the vehicle. After the connection is successful, the connection indicator (green) will be turned on and kept constant, and the screen will display the insertion status.
  • Page 10 LED display instruction Status of Voltage Standby Standby Rated current Statue of Voltage Connecti Connecting Rated current Status of Charging capacity charging Rated current Voltage /Current Charging Time Temperature...

  • Page 11: Troubleshooting

    4.Troubleshooting Trouble： Screen display： Resolution： Leakage Protection Stop charging immediately. The relay is cut off and the red light flashes. You need to manually power on Over temperature When the temperature is higher protection than 85 °C, the charging will stop automatically, the relay will be disconnected, the red light will start to flash, when the temperature...
  • Page 12 Over voltage protection Above maximum limit voltage, the relay is cut off and the red light flashes. After restoring the normal voltage, the manual power-on can be restored.

  • Page 13: After Sale Service

    After Sale service: Teison New Energy company, ensure the production lines of EV Charging are through strict quality inspection, within two years from the date of purchase under the correct use of caused by product quality problems, the company will give users the quality maintenance.
  • Page 14 Warranty card: Information register Product name Model Warranty date User name Contact phone Mail address Dealers shop Email address...
  • Page 16 Yangzhou Teison New Energy Co.,Ltd. Add: Bowuguran Rd #. 547, Yangzhou , China,225111 Website: www.evs-cn.com...
