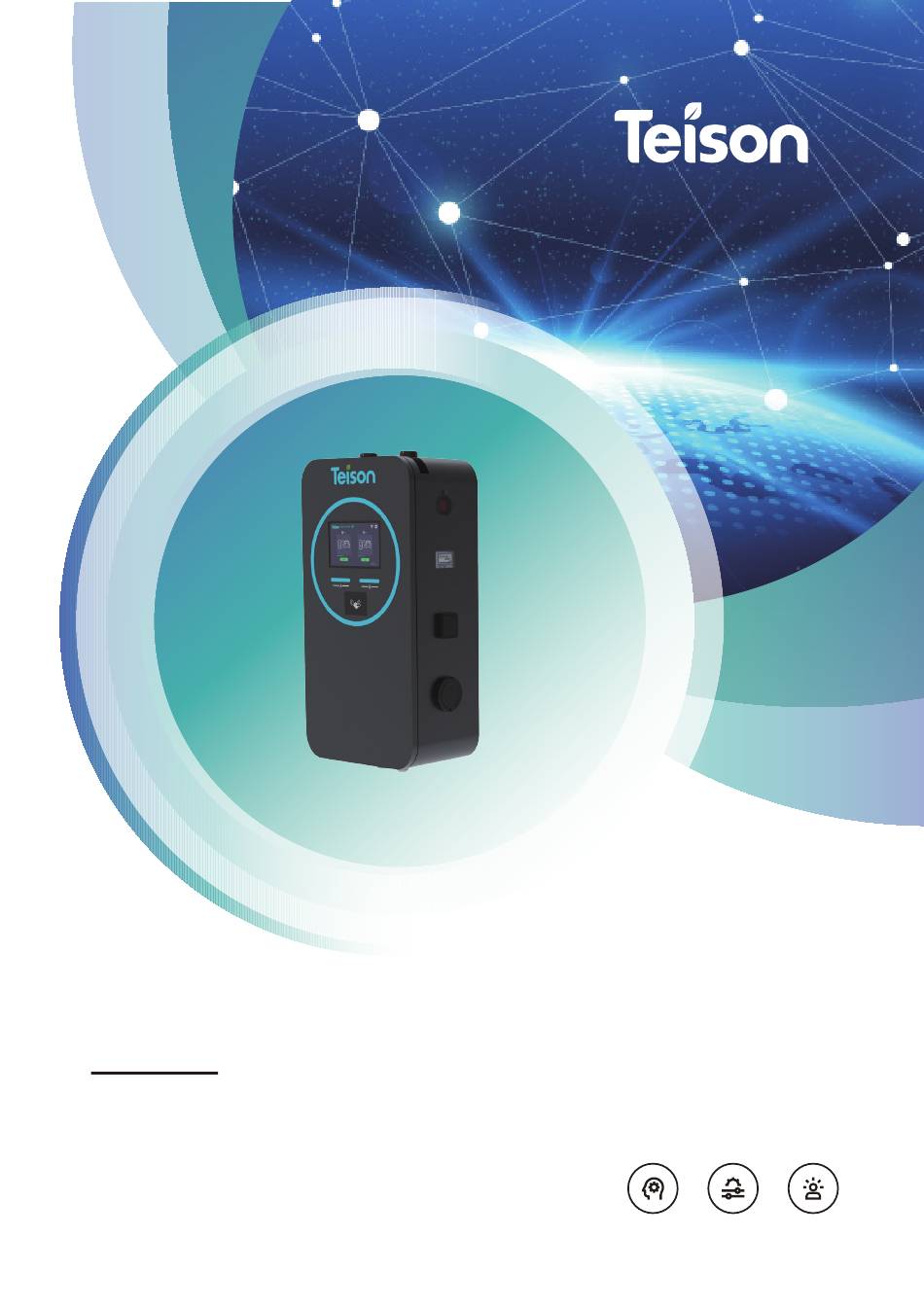

- Page 1 Teison Smart Twins TS-EVC07-002C-003(S) TS-EVC11-002C-003(S) TS-EVC22-002C-003(S)
- Page 2 Product overview Product features Parameter Product size Installation Charging instruction APP charge Teison profile Factory history...
-
Page 3: Product Overview
Product overview A charger comes with high-integrated smart board and communication function, the wallbox designed meet IP55, can be used indoor and outdoor. It support OCPP 1.6J protocol, and RFID. Owners can collect all data in platform and manage the charger, master all the status of the charger. To realize the real smart charging. -
Page 4: Product Features
Product features Sturdy metal casing Meet IP55 & IK10 standard by lab test 7 inch HD Android touch screen Easiest user interaction and real-time status view Indicator light Showing real time wallbox status RFID Sensor Identification & payment solution Waterproof port For the best security Emergency button Press to cut off the power immediately... - Page 5 Designed for future smart charging network Timeless and classic design fits in urban space and architecture. Compatible with full smart functions under OCPP 1.6 J-SON Authorization for use on a mobile application or a cloud platform to monitor the charger operation remotely Connecting to the network by 4G,WIFI and Ethernet Independent Access hole, wiring entrance and rail-mounted components for most effective installation and maintenance.
- Page 6 Parameter Specification TS-EVC07-002C-003(S) TS-EVC11-002C-003(S) TS-EVC22-002C-003(S) Model Electrical Properties Voltage 230V AC ±10% 400V AC ±10% 400V AC ±10% Max Output Current 2*32A 2*16A 2*32A Frequency 50/60HZ Max Output Power 2*7kW 2*11kW 2*22kW Residual current protection 30mA AC+ DC 6mA Design Emergency Stop Button Display 7"...
-
Page 7: Product Size
Product size 380mm 240.2mm 285.2mm... -
Page 8: Installation
Installation Wall mounted installation 1. Select the appropriate 2. Knock the expansion 3. Use M10/M12 bolts to installation position and pipe into the hole horizontally fix the mounting punch the screw hole position plate to the wall. according to the mounting plate mark. - Page 9 Column installation 1. Install the column in place 2. Use M10/M12 bolts to fix the 3. Hang the charger on the mounting plate on the column mounting plate. (holes are reserved on the column). 4. After installation, connect the incoming line (3 * 16mm +2 * 10mm ) to the power supply.
- Page 10 Instructions 1. After powering on, please check if the communication is normal and whether pressing the emergency stop button displays as follows. If the emergency stop status is not shown, it indicates a communication abnormality between the screen and the main control board. Please contact technical support for assistance.
- Page 11 3. To change the charging mode, you need to access the settings interface. The user password for the settings interface is initially set to 'No Password'. 4. The settings accessible to the user include General Settings, Network Settings, OCPP Settings, Device Information, and Records.
- Page 12 5. General Settings are divided into System Settings, User Preferences, Charging Station Configuration, and Charging connector Configuration. System settings include brightness adjustment, full screen display, language configuration, time zone setting, and screen restart. As shown in the following figure. User preferences include password settings and four charging modes (with POS machines being a non-standard option).
- Page 13 The charging station configuration includes "advertising playback" and "plug and charge" functions (plug and charge function is a customized function). A. The "advertisement playback" function requires: （1）. Activate the local playback button （2）. Import the video that needs to be played （3）.
- Page 14 Charging connector Configuration allows you to set the maximum power, maximum voltage, minimum voltage, QR code, whether to enable Base64 encoding for QR code, and the billing price per kWh. 25 3.0 2 07.0 Connector 2 6. OCPP settings include: charging station ID number, UL1 OCPP platform connection address, UL2 OCPP platform connection address, basic identity verification, and offline recording function.
- Page 15 A.Cloud platform connection supports dual platform simultaneous connection. UL1 has functions such as remote control of charging stations, access to charging logs, charging data, charging status, and remote firmware upgrades; UL2 only supports remote firmware upgrade, access to charging logs, and access to charging status. (UL2 connection platform function, UL1 platform must be turned on to work) B.After completing the settings, click the OCPP Start Button.
- Page 16 8. Charging records: The device stores charging records and logs A. Support querying the charging date, charging time, charging power, and charging amount for each order. B. Support querying charging logs for charging stations and exporting them locally using a USB drive.
- Page 17 APP charge Register your information and login Scan the code when charging Choose charging mode to charge Charging status Check your account and bill information...
- Page 18 Europe, the Middle East, South America, and Southeast Asia to provide users with e cient and fast technical support. As a safety charging expert, Teison insists on putting safety first, and product quality is the essential guarantee of safety. It creates aesthetically designed, high-quality, and safety-friendly charging scenes...
- Page 19 Factory history Teison brand established， committed to creating the most reliable charging solution for 2018 global customers. 1. Built R&D team 2019 2. Developed LVD+EMC TUV-certified OCPP full-featured charging station 1. Established a new 4000m production facility 2020 2. Developed full-featured OCPP for AC series 3.
