- Page 1 Portable EV charger Manual...
-
Page 2: Table Of Contents
Safety Guidance Product Overview 1.1 Product Appearance ................5 1.2 Reference Standard ................. 6 1.3 Product Specification ................6 1.4 Product Packing ..................7 1.5 Charging Principle ..................7 Technology Index 2.1 Environmental Performance .............. 8 2.2 Electrical Properties ................8 2.3 Mechanical Properties ................ -
Page 3: Safety Guidance
Product Overview warranty. ● The charger must not be used in the vicinity of volatile gases or Teison portable EV charger is a household charging device for flammable objects. electric vehicles. Its appearance is shown in Figure 1 and its ●... -
Page 4: Product Appearance

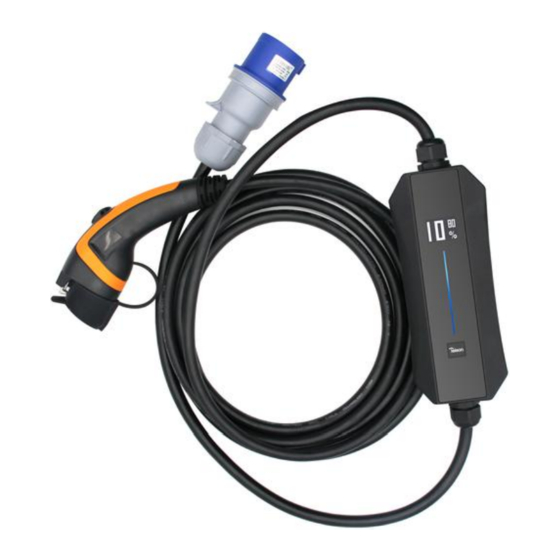

SAE Electric Vehicle and Plug in Hybrid Electric Vehicle SAE-J1772-2017 Conductive Charge Coupler Figure 1: Portable EV charger 1.3 Product Specification Subject Specification Item No. TS-PEC-002 Product Portable EV Charger Power plug Schuko/UK/AU/NEMA/CEE or customized Power side cable L1 Length 1000 mm,Specification 3*2.5mm²/3*6mm² IEC 61851-1:2017 & IEC/EN 62752：2016 Control box on cable Control box size: 255mm（H）x109mm(W)x55mm(D) -
Page 5: Charging Principle
1.4 Product Package Technology Index Five-layer corrugated carton packaging is used to fit the charger measured 410mm（L）x 350mm（W）x 80 mm（H）for 1 pc. 2.1 Environmental Performance Outer package 1 PCS/CTN（425mm x 365mm x 95mm）or 7 Article Specification PCS/CTN（600mm x 435mm x 410mm）. Working temperature -30℃~~60℃... -
Page 6: Mechanical Properties
2.3 Mechanical Properties Instructions and Status Display Article Specification The operation steps are as follows: CEE 16/32A PLUG 5000 times Life of plug-in and plug-out Step 1: Connect with the power, the control box starts to be AC charging plug 10000 times energized, the blue light bar is always on, and the screen will Control box... - Page 7 Step 4: Connect the vehicle and insert the plug into the vehicle LCD Status socket. The control panel will automatically detect the connection Waiting for charging indicator Blue light is on constantly status of the vehicle. After the connection is successful, the Connection indicator Green light is on constantly connection indicator (green) will be turned on and kept constant,...
-
Page 8: After Sale Service
After Sale service Warranty card Teison New Energy company, ensure the production lines of EV Charging are through strict quality inspection, within one year from the date of purchase under the correct use of caused by product quality problems, the company will give users the quality maintenance.
