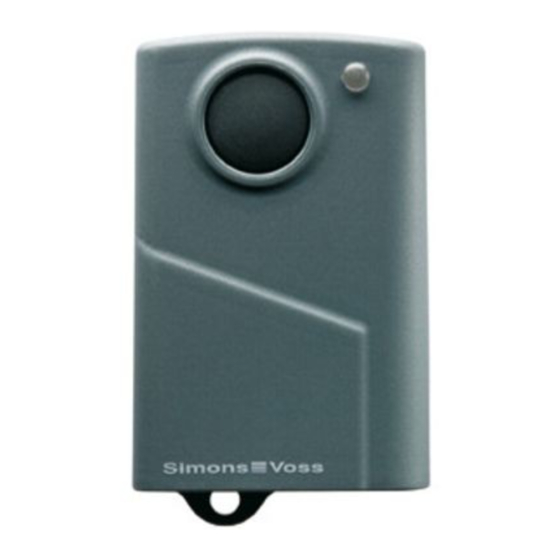

- Page 1 Programming Transponder 3067 State of: June 2006...
- Page 2 Programming Transponder 3067 Content Introduction _________________________________________3 Backup Card _________________________________________3 Programming Notes ___________________________________4 Error Messages __________________________________________ 4 Initial Programming ______________________________________ 4 Reading Out a Transponder _______________________________ 5 Adding a New Transponder ________________________________ 5 Emergency Opening ______________________________________ 6 Blocking a Lost Transponder ______________________________ 6...
- Page 3 The entire system is protected by a secret password that is saved at the factory on the Programmer Transponder 3067. The system password is stored on the backup card. The password is covered by a scratch panel and does not have to be scratched free for programming.
- Page 4 Programming Transponder 3067 Page 4 Programming Notes Always position only one locking cylinder in the immediate vicinity of the Programming Transponder during programming. All other components must be at a distance of at least 1 m (3.3 feet). Error Messages If you receive one of the following signals when not expected during the programming, there has been an error.
- Page 5 Programming Transponder 3067 Page 5 button one time. Attention: you must press the button during the LED’s blinking phase. The data is then transferred. The locking cylinder makes several signal tones during this part of the programming. If the programming was successful, the cylinder couples and the LED on the Programming Transponder lights green.
- Page 6 Programming Transponder 3067 Page 6 Emergency Opening It is possible to perform an emergency opening with the Programming Transponder. Proceed as follows: 1. Press the Programming Transponder button briefly one time. Then the LED blinks green. 2. Hold the Programming Transponder at a distance of approximately 10 to 20 cm (approximately 4 to 8 inches) from the locking cylinder and briefly press the button.
- Page 7 Programming Transponder 3067 Page 7 4. The Programming Transponder repeats the ID number that you enter as a check. First the LED briefly lights yellowish. Then the Programming Transponder outputs the ID number with red and green blinking. The color then changes back to yellow and finally the LED blinks green.
