- Page 1 Transponder 3064 Manual 25.08.2021...
-
Page 2: Table Of Contents
Contents Transponder 3064 (Manual) 2 / 22 Contents General safety instructions........................ 3 General ................................ 6 How it works............................... 6 Incorporating the transponder in different locking systems............ 7 Higher-ranking locking level........................ 8 Special models ............................ 10 Password transponder.......................... 10 Switch transponder ............................ 10 Explosion protection transponder (EX protection)............... 10 Bonded transponder ............................ -
Page 3: General Safety Instructions
1. General safety instructions Transponder 3064 (Manual) 3 / 22 1 General safety instructions Signal word (ANSI Possible immediate effects of non-compliance Z535.6) DANGER Death or serious injury (likely) WARNING Death or serious injury (possible, but unlikely) CAUTION Minor injury... - Page 4 1. General safety instructions Transponder 3064 (Manual) 4 / 22 CAUTION Fire hazard posed by batteries The batteries used may pose a fire or burn hazard if handled incorrectly. 1. Do not try to charge, open, heat or burn the batteries.
- Page 5 1. General safety instructions Transponder 3064 (Manual) 5 / 22 Communication interference due to metallic surfaces This product communicates wirelessly. Metallic surfaces can greatly reduce the range of the product. Do not mount or place the product on or near metallic surfaces.
-
Page 6: General

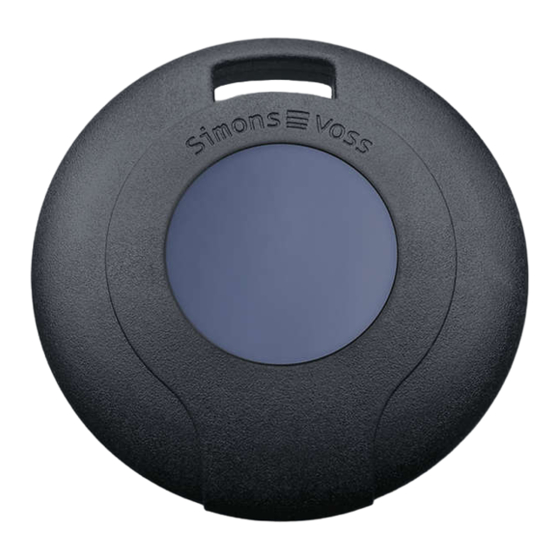

(Manual) 6 / 22 2 General Transponder 3064 is a digital "key" which is programmed with locking plan software and functions using contactless, wireless communication. All functions are activated by pressing a button. These include authorisation identification and the opening and locking of doors, gates, barriers, furniture locks and similar items. -
Page 7: Incorporating The Transponder In Different Locking Systems
2. General Transponder 3064 (Manual) 7 / 22 Digital Cylinder AX 5 cm to 20 cm Locking Cylinder 3061 15 cm to 40 cm SmartHandle AX 5 cm to 30 cm SmartHandle 3062 5 cm to 40 cm SmartLocker AX 5 cm to 30 cm Padlock AX 5 cm to 20 cm Padlock 15 cm to 40 cm... -
Page 8: Higher-Ranking Locking Level
2. General Transponder 3064 (Manual) 8 / 22 Firma: Filiale: Eigenheim: Schließungen Schließungen Schließungen Schließanlage 1 Schließanlage 2 Schließanlage 3 Fig. 1: A transponder for several separate locking systems 2.3 Higher-ranking locking level Transponders can be authorised for more than three [G1] or four [G2] locking systems. - Page 9 2. General Transponder 3064 (Manual) 9 / 22 Company D Company C Company B Company A Central locking system Fig. 2: Higher-ranking transponder Four companies are based in an office building with a main lock which is used by all the companies. Each company manages its own locking system with its own password.
-
Page 10: Special Models
Remote activation of a digital locking cylinder or SmartRelay 3.3 Explosion protection transponder (EX protection) This transponder has the same functions as a Transponder 3064, but it is also approved for use in Explosion Protection Zone 1 (see Explosion protection transponder [ 12]... -
Page 11: Fire Service Key Tube Transponder
3. Special models Transponder 3064 (Manual) 11 / 22 LEGIC® advant 128 3.6 Fire service key tube transponder Almost identical to the standard transponder, but has a narrower casing (33 mm) and can be kept in a standardised fire service key tube. -
Page 12: Explosion Protection Transponder
The following aspects must be taken into account: The casing must not be opened. Unlike with Standard Transponders 3064, only SimonsVoss may change the battery in this transponder. As a general rule, users must comply with explosion protection ... -
Page 13: Additional Functions
5. Additional functions Transponder 3064 (Manual) 13 / 22 5 Additional functions The functions described below can be activated in the LSM software. 5.1 Time zone control Transponders can be programmed to have locking authorisation for digital access control locking devices at certain times only (time zones). Such time zones are added to the LSM software and the transponders are then allocated to the relevant time zone group. -
Page 14: Battery Replacement
6. Battery replacement Transponder 3064 (Manual) 14 / 22 6 Battery replacement The transponder battery can be replaced at any time. 1. Carefully open the casing at the notches, so that you can see the bat- tery. 2. Open the battery holder. - Page 15 6. Battery replacement Transponder 3064 (Manual) 15 / 22 WARNING Risk of explosion due to incorrect battery replacement A battery fitted incorrectly into a explosion protection transponder may ig- nite an explosive atmosphere. Therefore, only SimonsVoss Technologies GmbH may replace the battery in explosion protection transponders.
-
Page 16: Loss Of The Transponder
7. Loss of the transponder Transponder 3064 (Manual) 16 / 22 7 Loss of the transponder 7.1 Emergency opening You may carry out an emergency opening with the SmartCD and PDA and by entering the locking system password. 7.2 Replacement transponder [G1] If a transponder is lost, it can be blocked in the locking plan and a replacement transponder added. -
Page 17: Overview Of Differences Between G1 And G2 Protocols
8. Overview of differences between G1 and G2 Protocols Transponder 3064 (Manual) 17 / 22 8 Overview of differences between G1 and G2 Protocols Locks per locking cylin- 16,000 64,000 der on a transponder Number of locking sys- 4 [G2] + 3 [G1] tems Max. -
Page 18: Technical Data
9. Technical data Transponder 3064 (Manual) 18 / 22 9 Technical data Weatherproof plastic Material (polyamide) Casing: black Colours Housing Buttons: different col- ours Diameter 42.0 mm Height 13.7 mm Temperature range -20 °C to 60 °C IP65 Standard protection Ambient conditions rating IP66 (.SPEZ version) -
Page 19: Dimensions
9. Technical data Transponder 3064 (Manual) 19 / 22 Radio emissions -20 dBµA/m (10 m dis- 24.50 kHz - 25.06 kHz tance) RFID (depending on 13.564 MHz - 13.564 -19.57 dBµA/m (10 m equipment) distance) There are no geographical restrictions within the EU. -
Page 20: Eu/Uk Declaration Of Conformity
10. EU/UK Declaration of conformity Transponder 3064 (Manual) 20 / 22 10 EU/UK Declaration of conformity The company SimonsVoss Technologies GmbH hereby declares that article TRA2 complies with the following guidelines: 2014/53/EU "Radio equipment" as well as the corresponding UK statutory 2017 No. 1206 "Radio equipment"... -
Page 21: Help And Other Information
11. Help and other information Transponder 3064 (Manual) 21 / 22 11 Help and other information Information material/documents You will find detailed information on operation and configuration and other documents on the website: www.simons-voss.com/en/documents.html Declarations of conformity You will find declarations of conformity and other certificates on the website: www.simons-voss.com/en/certificates.html... - Page 22 This is SimonsVoss SimonsVoss, the pioneer in remote-controlled, cable-free locking technology provides system solutions with a wide range of products for SOHOs, SMEs, major companies and public institutions. SimonsVoss locking systems combine intelligent functionality, high quality and award- winning design Made in Germany. As an innovative system provider, SimonsVoss focuses on scalable systems, high security, reliable components, powerful software and simple operation.
