Hydraulic
Air/Manual

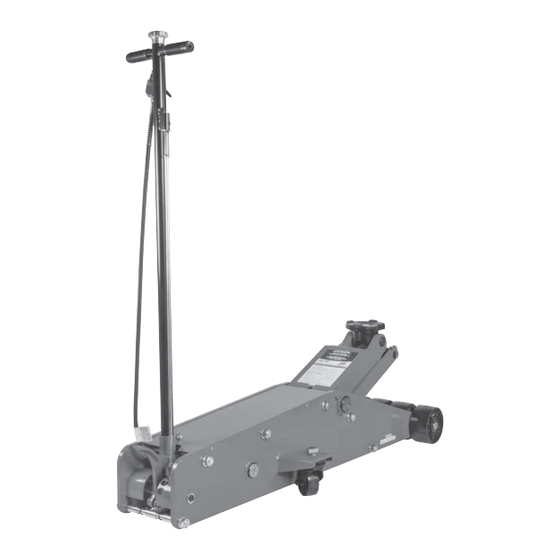

Service Jack
Operating Instruction & Parts Manual
Model Number
Capacity
ATD-7392
20 Ton
WARNING: This product may contain chemicals, including lead, known to the State of California to cause cancer,
birth defects or other reproductive harm. Wash hands after handling.
Printed In Taiwan
ATD7392_rev_0417
Visit us at www.atdtools.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATD Tools 7392
Summary of Contents for ATD Tools 7392
- Page 1 Service Jack Operating Instruction & Parts Manual Model Number Capacity ATD-7392 20 Ton WARNING: This product may contain chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling.
- Page 2 Manual are available from manufacturer (see page 6, Replacement Parts). PRODUCT DESCRIPTION ATD Tools Air Actuated Hydraulic Service Jack is designed to lift, but not sustain, rated capacity loads. Always reference the Product Label and Manual to establish rated capacity. Model ATD-7392 is designed to be used in conjunction with jack stands.
- Page 3 BEFORE USE WARNING 1. Verify that the product and the application are compatible, if in doubt call for Technical Assistance (888) 332-6419. Study, understand, and follow all instructions provided 2. Before using this product, read the owners manual with and on this device. Do not exceed rated completely and familiarize yourself thoroughly with capacity.
- Page 4 MAINTENANCE Lubrication 1. When used on a daily basis, air actuated units Important: Use only a good grade hydraulic jack oil. should be internally lubricated before each use. Use Avoid mixing different types of fluid and Never use Only good quality air tool lubricant. If no in-line oiler brake fluid, turbine oil, transmission fluid, motor oil or is used, pour a teaspoon of air tool oil into the inlet of glycerin.
- Page 5 AIR MOTOR ASSEMBLY G62S-03300-200 OIL FILLER PLUG G100-90004-K02 FRONT WHEEL G55-4-5000-200 REAR CASTER ASSEMBLY G55-6-4201-106 SADDLE 521-2-0370-104 RETURN SPRING 421-3-9004-101 FOOT PEDAL G55-4-2300-106 HANDLE ASSEMBLY G55-6-4120-106 COVER PLATE LABEL OWNER'S MANUAL Figure 2 - Replacement Parts Illustration for model ATD-7392...
- Page 6 T s i other rights which vary from state to state. other rights which vary from state to state. ATD Tools, Inc. 160 Enterprise Drive Wentzville, MO 63385 www.atdtools.com...
- Page 7 ATD Tools, Inc. 160 Enterprise Drive Wentzville, MO 63385 www.atdtools.com...
- Page 8 ATD Tools, Inc. 160 Enterprise Drive Wentzville, MO 63385 www.atdtools.com...
