Summary of Contents for ATD Tools 7514

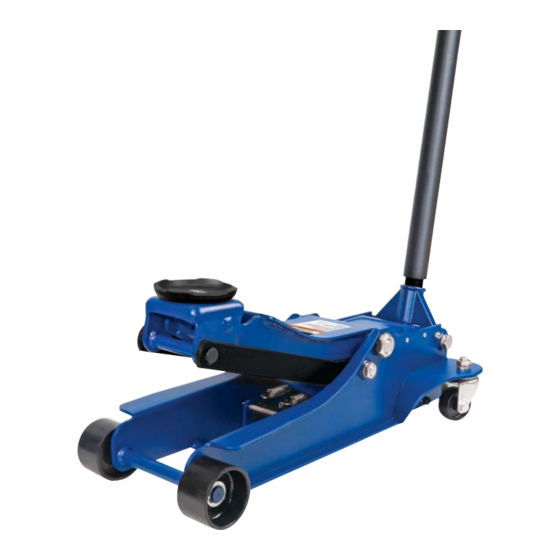

- Page 1 ATD-7514 4-TON SERVICE JACK OWNER’S MANUAL 4-Ton Service Jack Specifications: Features: ATD7514_rev_0421...
-
Page 2: Safety And Warning Information
Service Jack Model Number: ATD-7514 Jack Size Capacity Min. Height Max Height Saddle Diameter Net Weight (L x W x H) 28-1/4"x 13-5/8"x 7-7/16" 4 Ton 4-7/16” 19-7/8” 85.8 LB 4" SAFETY & WARNING INFORMATION This is the safety n... - Page 3 SAFETY & WARNING INFORMATIO This jack is designed to Support the vehicle with jack stands as outlined below. Jack Stands are designed to support stated capacity. Stands should only be used to support par al loads that consist of one end of a vehicle. Always use as a matched pair to support one end of a vehicle only.
- Page 4 SETUP, OPERATION & PREVENTIVE MAINTENANCE LOWERING Turn the handle/release valve clockwise to the closed posi on. Do not over ghten. Pump the handle up and down to li vehicle o jack stands. Remove the jack stands and safety pins. DO NOT get under or let anyone get under the vehicle while lowering.
-
Page 5: Inspection, Storage & Troubleshooting
SETUP, OPERATION & PREVENTIVE MAINTENANCE Altera ons Because of poten al hazards associated with this type of equipment, no altera ons should be made to the product. A achments and Adapters Only a achments and/or adapters supplied by the manufacturer should be used. Oil Filler Plug Handle Fork Handle... -
Page 6: Troubleshooting
INSPECTION, STORAGE & TROUBLESHOOTIN STORAGE The service jack and jack stands should be stored in a dry loca on on a level surface. TROUBLESHOOTING Symptom Possible Causes Solu on 1. Release valve not ghtly 1. Tighten release valve. Jack will not li the load. 2. -
Page 7: Exploded View & Replaceable Part Numbers
EXPLODED VIEW & REPLACEABLE PART NUMBERS PART NO. FACTORY NO. DESCRIPTION LYD3G-100 Front Wheel Assembly LYD3G-PJ-2 Saddle W/ Pad LYD3G-PJ-1A Handle Assembly w/ Foam LYD3G-PJ-4 Power Unit Assembly LYD3F-500 Handle Fork Assembly LYD3G-PJ-6 Rear Caster Assembly LYD3A-5 Return Springs LYD3A-8A Saddle Pad ATD7514-L Product Label... -
Page 8: Warranty
WARRANTY 1 YEAR LIMITED WARRANTY THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES...
