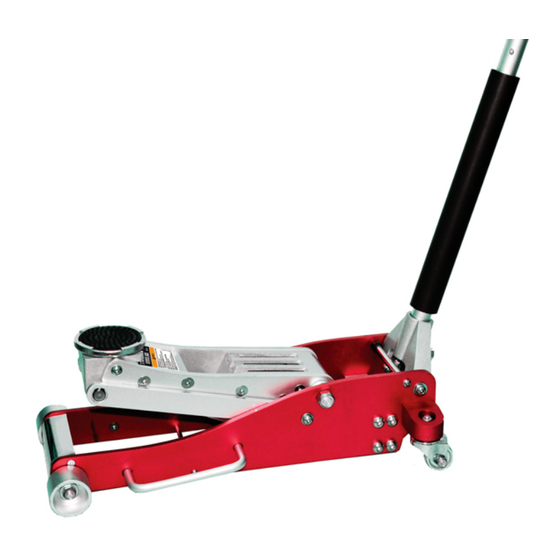

3 ton low profile aluminum floor jack

Advertisement

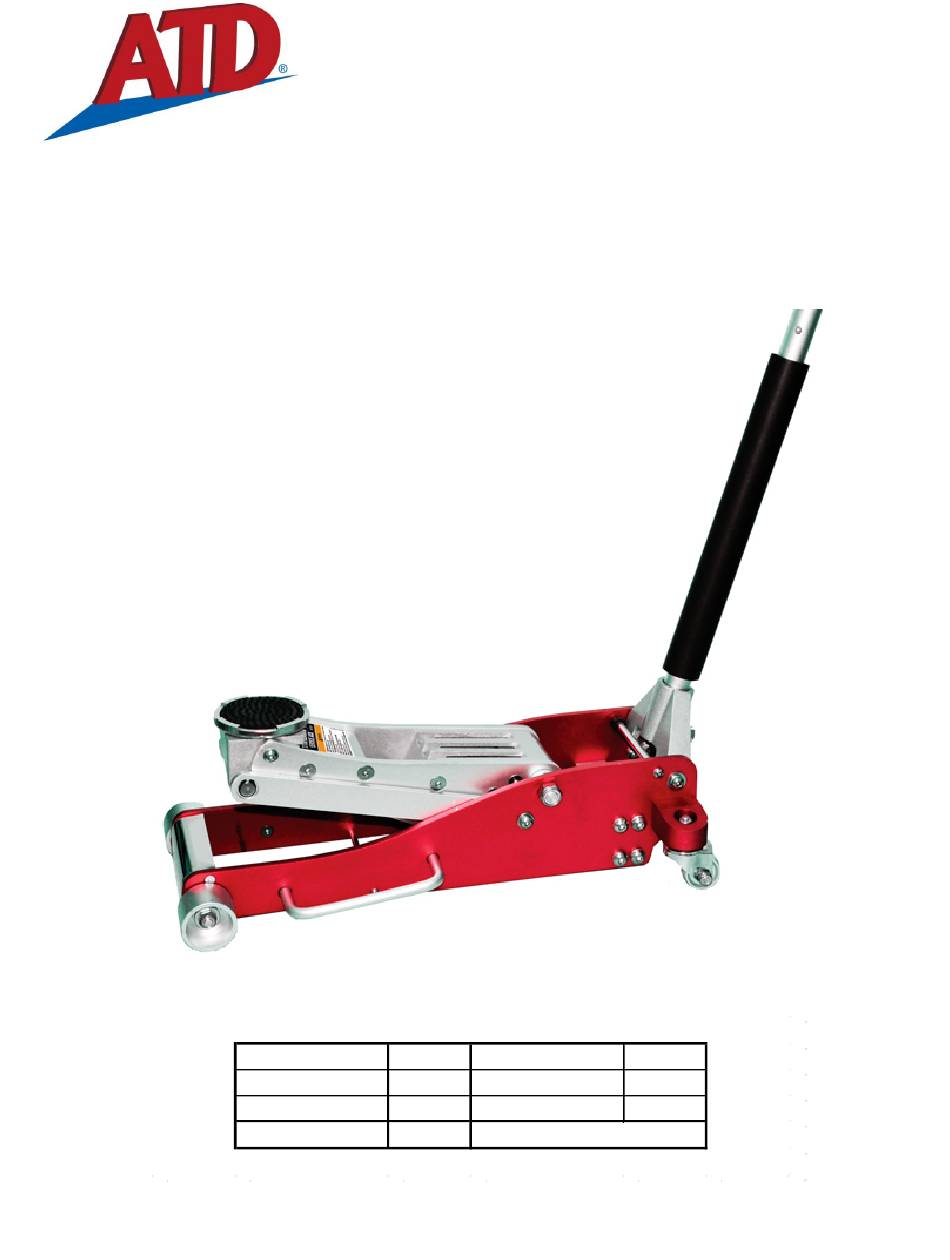

3 TON LOW PROFILE ALUMINUM FLOOR JACK
Specifications:
Capacity:
Min Height:
Max Height:
Length:
This hydraulic jack conforms to all "ANSI / ASME" safety standards.
ATD-7343
USER'S MANUAL
3 Tons
Chassis Width:
3.75"
Saddle Diameter: 4.52"
Net Weight:
18.1"
26.4"
13"
55 lbs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7343 and is the answer not in the manual?

Questions and answers

Summary of Contents for ATD Tools 7343

  • Page 1 ATD-7343 3 TON LOW PROFILE ALUMINUM FLOOR JACK USER’S MANUAL Specifications: Capacity: 3 Tons Chassis Width: 13" Min Height: 3.75" Saddle Diameter: 4.52" Max Height: Net Weight: 18.1" 55 lbs Length: 26.4" This hydraulic jack conforms to all “ANSI / ASME” safety standards.
  • Page 2: Safety Warning And Precautions

    SAFETY WARNING AND PRECAUTIONS  General Safety Warnings:  WARNING:  The instructions and warnings contained in this manual should be read and understood before using  or operating this tool. Do not allow anyone to use or operate this tool until they have read this manual and have  developed a thorough understanding of how this tool works. Failure to observe any of the following instructions could  result in severe personal injury to tool user and bystanders, or cause damage to the tool and property. Keep this manual  for future reference.  Note:  The warnings and cautions discussed in this instruction manual cannot cover all possible conditions and  situations that may occur. It must be understood by the operator that common sense and caution are factors which  cannot be built into this product, but must be supplied by the operator.  WARNING:  Use safety equipment. User and bystanders should use safety goggles or safety glasses with side shields  which comply with current national standards, or when needed, a face shield. Use an ANSI approved dust mask or respirator  when  working  around  metal,  wood,  and  chemical  dusts  and  mists.  This  applies  to  all  persons  in  the  work  area.  Also  use  non‐skid safety shoes, hardhat, gloves, dust collection systems, and hearing protection when appropriate.      WARNING:  Keep bystanders and children out of the work area while operating this tool. ...
  • Page 3: Prior To Operation

    WARNING:  Ensure that there are no persons inside the vehicle to be lifted. Switch off the engine and apply the brake.  Chock each unlifted tire in BOTH directions as shown below.    WARNING:  Position the jack under the manufacturer's recommended lifting point for the vehicle. Off centered loads  can slip and accidents may result.  WARNING:  During raising and lowering of the load, precautions should be taken to avoid movement of the vehicle.  WARNING:  Traffic may cause the raised vehicle to rock during roadside use of the jack.  WARNING:  Never work on, under or around a raised vehicle supported only by a hydraulic jack. Always use  adequately rated jack stands.  WARNING:  Never position any part of your body near the movable parts of the jack.  WARNING:  Ensure that there are no persons, tools or obstructions underneath the vehicle prior to lowering.  WARNING:  Do not adjust the overload bypass valve under any circumstance.    PRIOR TO OPERATION:  Air may become trapped in the hydraulic system during transit.    To Purge Air    1. Insert the handle into the socket and secure it with the set screw provided.  2. Turn the handle counterclockwise until release valve is open; pump the jack several times to purge the accumulated  air in the system.  3. Turn the handle clockwise to close the release valve. The jack is now ready to use.    OPERATING INSTRUCTIONS:  To Lift a Vehicle: Turn the handle clockwise. Move the handle up and down. Use the full stroke of the piston for greater speed.   ...
  • Page 4: Maintenance

        Support the vehicle with appropriate jack stands.    Lift the vehicle to remove the jack stands, ensuring that there are no persons or obstructions under the vehicle.    Turn the handle counter‐clockwise.    MAINTENANCE:  Important:  Both  the  maintenance  and  repair  of  the  jack  may  only  be  performed  by  qualified  persons,  who  have  sufficient  knowledge of the hydraulic system used in these jacks  Regularly lubricate the moving parts in the wheels, arms, handle and pump roller pin.  Only original replacement parts should be used.  EXTREMELY IMPORTANT: NEVER use brake fluid OR transmission fluid for lubrication, or for filling the  hydraulic system. Use ONLY quality hydraulic jack oil for lubrication and filling of the hydraulic system.  • When the jack is not in use, make sure the lifting arm is fully retracted to avoid corrosion.  • Replace the hydraulic fluid in the reservoir at least once a year. To check the hydraulic fluid level, lower the lifting  arm completely.  •...
  • Page 5: Troubleshooting

    TROUBLESHOOTING:  CAUTION:   To prevent personal injury, all inspection, maintenance, and repair procedures must be performed when  the jack is free of load.          Trouble  Cause  Solution  1.  Release valve is open  1. Verify the release valve is  closed. Release valve may  need cleaning  2.  Low/no hydraulic fluid in  2. Fill with approved hydraulic  reservoir  fluid and bleed system  3.  Air trapped in hydraulic  3. Follow the purge air  system  procedure  Jack Does Not Lift  4.  Load is above capacity of jack  4. Use the correct equipment  5.  Delivery valve and/or bypass  5. Clean to remove dirt or  valve not working correctly  foreign objects from the  system. Replace hydraulic ...
  • Page 6 ATD-7343 ITEM# ORDERING PART# PART DESCRIPTION ITEM# ORDERING PART# PART DESCRIPTION PRT7343-01 P01 - SADDLE PAD PRT7343-11 P11 - NUT, M12 PRT7343-02 P02 - SADDLE SCREW PRT7343-12 P12 - HANDLE YOLK PRT7343-03 P03 - SADDLE PRT7343-13 P13 - HANDLE SET SCREW...
  • Page 7: Warranty

    DATE PURCHASED: ________________________________________________    INVOICE/RECIEPT NUMBER:_________________________________________    Your ATD‐7343 is warranted for a period of 12 months from the original date of. Any consumable items, such as the rubber  saddle  pad,  are  covered  by  a  90  day  warranty.  This  warranty  is  valid  for  defects  in  workmanship  or  materials  only,  and  is  handled at the point of sale.      The  warranty  given  on  this  tool  is  against  defects  in  workmanship  and  materials  only.  Any  misuse,  abuse  or  accidental  and ...
