Operating Instructions & Parts Manual
Model Number
ATD-7435
ATD-7436
ATD-7437

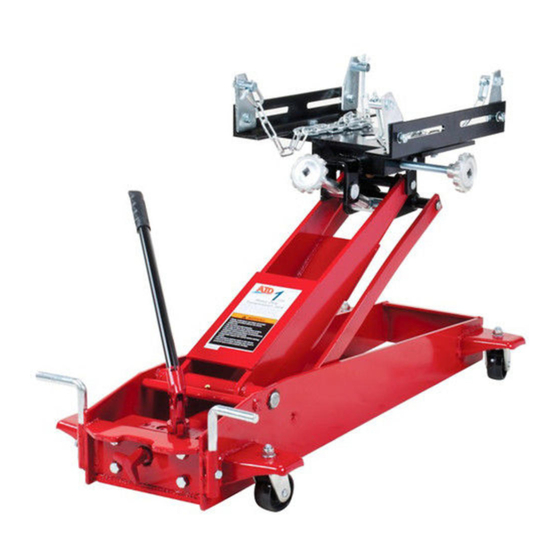

Model ATD-7436
WARNING: This product may contain chemicals, including lead, known to the State of California
to cause cancer, birth defects or other reproductive harm. Wash hands after handling.
Hydraulic
Transmission
Jacks
Capacity
1000 0 lbs.
2000 lbs.
3000 lbs.
Model ATD-7435
Model ATD-7437
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATD Tools ATD-7435
Summary of Contents for ATD Tools ATD-7435

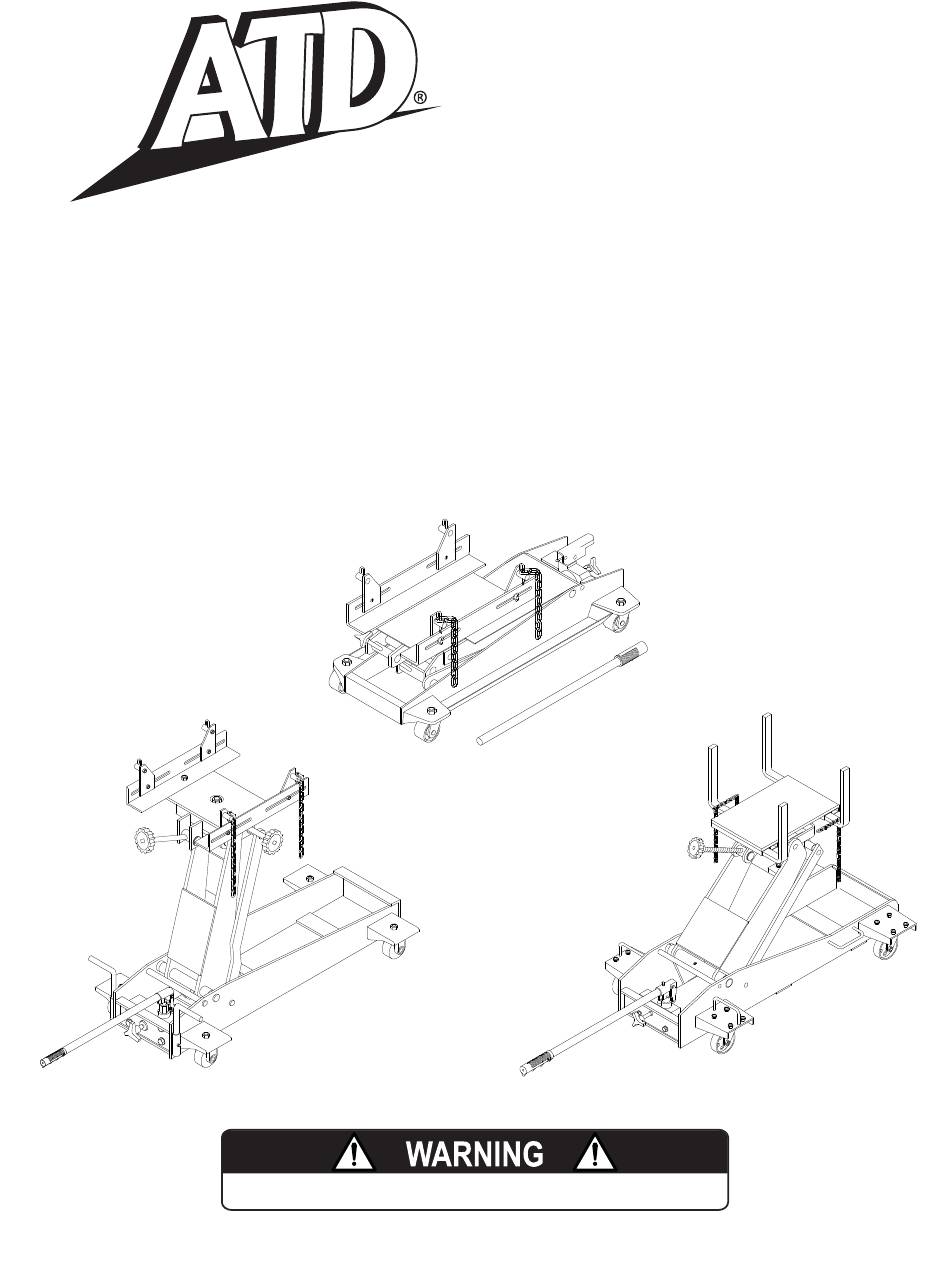

- Page 1 1000 0 lbs. 2000 lbs. ATD-7436 3000 lbs. ATD-7437 Model ATD-7435 Model ATD-7436 Model ATD-7437 WARNING: This product may contain chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling.
-
Page 2: Product Description
SPECIFICATIONS Capacity Minimum Maximum Expanded Saddle Handle Model Saddle Base Base Size Weight Height Height Area Length ATD-7435 1000 lbs. 8-1/2” 24-3/4” 12-5/8” x 7-7/8” 17” x 19-3/8” 31” x 15” 22-1/2” 106 lbs. ATD-7436 2000 lbs. 7-7/8” 33-1/2” 14-1/4” x 8”... -
Page 3: Operation
Knob service manual or repair guide. Figure 1 - Model ATD-7435 components 3. Secure load with provided chains. Ensure the load’s center of gravity is centered on the saddle and load is stable before moving jack. -
Page 4: Maintenance
MAINTENANCE Important: Use only a good grade hydraulic jack oil. Avoid Lubrication mixing different types of fluid and NEVER use brake fluid, A periodic coating of light lubricating oil to pivot points, turbine oil, transmission fluid, motor oil or glycerin. axles and hinges will help to prevent rust and assure Improper fluid can cause premature failure of the jack that wheels, casters and pump assemblies move freely. - Page 5 450-3-5700-108 Tilt Screw 450-3-5600-205 Saddle Holder G89-0-9003-7002 Caster Assembly 450-6-4409-107 Hydraulic Unit Pivot Pin G52-3-9903-104 Handle 450-4-1700-104 Release Valve Assembly 450-3-9901-107 Repair Kit for Hydraulic Unit ATD7435-L0 Product Label ATD7435-M0 Manual Figure 4 - Replacement Parts Illustration for model ATD-7435...
- Page 6 Replacement Parts for model ATD-7436: Item Part# Description 505-9-0092-207 Oil Filler Plug 4200-01000-000-18 Hydraulic Unit G36-6-7000-102 Chain G52-3-4204-103 Saddle Assembly G52-6-4207-107 Angle Bar G52-6-4402-105 Tilt Screw G52-6-4401-103 Tilt Screw G52-6-1709-106 Tilt Knob G52-3-4300-109 Saddle Holder G52-4-5200-106 Caster Assembly G52-3-9903-104 Handle G52-6-1701-100 Release Valve G34-6-1709-104...
- Page 7 Replacement Parts for model ATD-7437: Item Part# Description 324-4-1900-208 Oil Filler Screw G62-1-1000-108 Hydraulic Unit G36-6-7000-102 Chain G52-4-4102-101 Hook & Chain G62-3-4200-101 Saddle Plate G62-6-4302-109 Support Bar G62-6-4501-105 Tilt Screw G52-6-1709-106 Tilt Knob G62-3-4203-109 Saddle Holder G38-4-5200-102 Caster Assembly G46-6-2101-101 Handle G62-6-1701-108 Release Valve...
