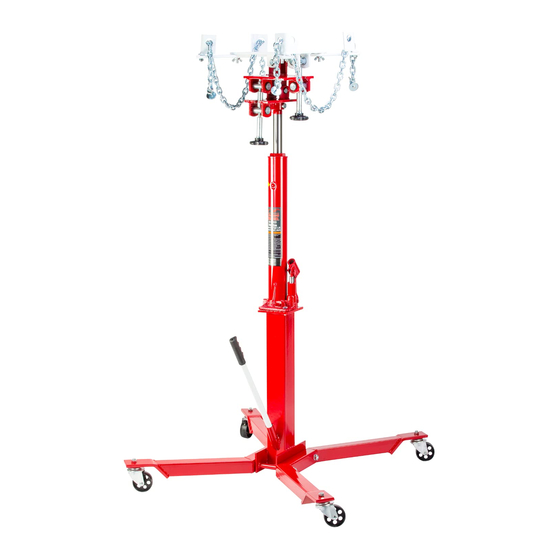

700 lbs High Lift Telescopic
Transmission Jack
Operating Instructions & Parts Manual
BH7000
SFA Companies ©2005
10939 N. Pomona Ave. Kansas City, MO 64153
816-891-6390
sales@blackhawk-automotive.com
- Before using this product, read this manual and follow all its Safety Rules and Operating Instructions
Made in PRC
Advertisement
Table of Contents
Related Manuals for Blackhawk Automotive BH7000
Summary of Contents for Blackhawk Automotive BH7000
- Page 1 700 lbs High Lift Telescopic Transmission Jack Operating Instructions & Parts Manual BH7000 SFA Companies ©2005 10939 N. Pomona Ave. Kansas City, MO 64153 816-891-6390 sales@blackhawk-automotive.com - Before using this product, read this manual and follow all its Safety Rules and Operating Instructions...
-
Page 2: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY For a period of one (1) year from date of purchase, SFA Companies will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy. -
Page 3: Product Description
PRODUCT DESCRIPTION Blackhawk Automotive High Lift Telescopic Transmission Jack is designed to be used as an aid in the removal and installation of automotive and light truck transmissions, transfer cases and transaxles. It is intended for use under an overhead lift or in a garage pit. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS BEFORE USE 1. Verify that the product and the application are compatible, if in doubt call Blackhawk Automotive Technical Service (816) 891-6390. 2. Read the operator's manual completely and familiarize yourself thoroughly with the product and the hazards associ- ated with its improper use before using this product. -
Page 5: Operation
OPERATION Raise saddle: WARNING 1. Turn release valve clockwise until firm. Pump handle until load is contacted. To avoid crushing and related injuries: 2. Follow vehicle manufacturers recommended NEVER work on, under or procedures for removing the load as outlined in vehicle around a load supported only service manual or repair guide. -
Page 6: Troubleshooting
TROUBLESHOOTING Symptom Possible Causes Corrective Action • Release valve not tightly closed • Ensure release valve tightly closed Jack will not lift load • Overload condition • Remedy overload condition • Release valve not tightly closed • Ensure release valve tightly closed Jack bleeds off after lift •... -
Page 7: Replacement Parts
Release Valve Lever T250-90037-003 Bolt Assy. T250-08000-000 Tilt Screw L100-05000-000 Chain Assy. T250-04000-000 Saddle Bracket T250-03000-000 Saddle Assy. T250-90009-K01 Hardware Kit ( all bolts & nuts) BH7000-L0 Product Label BH7000-M0 Manual Figure 3 - Replacement Parts Illustration for Model BH7000... - Page 8 memo.
