Operating Instructions & Parts Manual
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
ADVERTENCIA
!
• Leer, comprender, y seguir las instrucciónes antes
de utilizar el aparato.
• El manual de instrucciónes y la información de
seguridad deben estar comunicado en lengua del
operador antes del uso.
• No seguir estas indicaciónes puede causar daños
personales o materiales.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
Made by
SFA Companies, Kansas City, MO
Hydraulic Transmission Jacks
Model
BH7011
BH7210
!
To avoid crushing and related injuries:
NEVER work on, under or around a
load supported only by a hydraulic
jack. Immediately transfer the load to
an appropriate work station.
10939 N. Pomona Ave. Kansas City, MO 64153
Capacity
1/2 Ton
WARNING
SFA Companies
sales@blackhawk-automotive.com
BH7011-M0_082018
1 Ton
Made in PRC
Advertisement
Table of Contents
Related Manuals for Blackhawk Automotive BH7210
Summary of Contents for Blackhawk Automotive BH7210
- Page 1 Blackhawk Automotive is a Licensed Trade Mark Made by SFA Companies, Kansas City, MO Hydraulic Transmission Jacks Operating Instructions & Parts Manual Model Capacity BH7011 1/2 Ton BH7210 1 Ton This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
-
Page 2: Safety And General Information

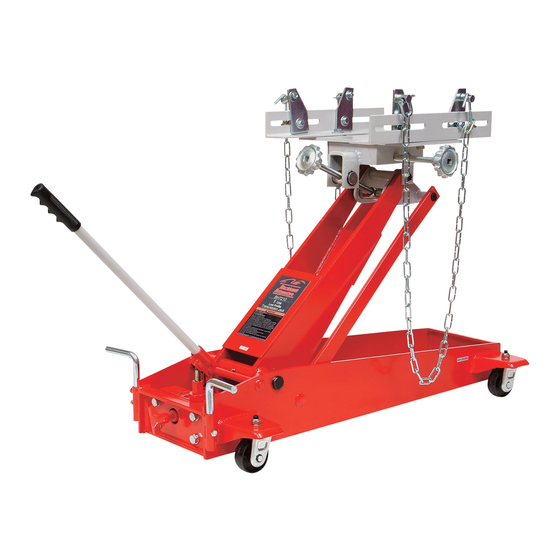

Labels and Operator's Manuals are available from manufacturer. PRODUCT DESCRIPTION Blackhawk Automotive Hydraulic Transmission Jack is designed to be used as an aid in the removal and installation of automotive and light truck transmissions, transfer cases and transaxles. This jack is for use under portable lift equipment, where vehicle must be supported by a pair of appropriately rated jack stands. - Page 3 4. Repeat for the other angle bar. Before Use 1. Verify that the product and application are compatible, if in doubt call Blackhawk Automotive technical service (816) 891-6390. 2. Before using this product, read the operator's manual completely and familiarize yourself thoroughly with the product, its components and recognize the hazards associated with its use.
