Blackhawk Automotive is a Licensed Trade Mark
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
Made by
SFA Companies, Kansas City, MO

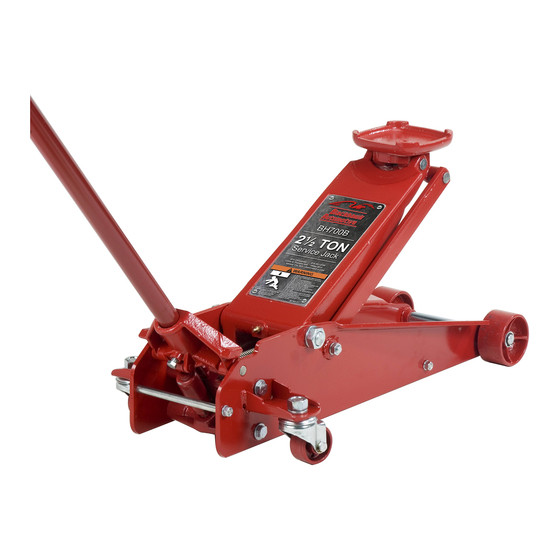

Hydraulic Service Jack
Operating Instructions & Parts Manual
Model
BH700B
WARNING
!
To avoid crushing and related injuries:
NEVER work on, under or around a
load supported only by a hydraulic
jack. ALWAYS use adequately rated
jack stands.
10939 N. Pomona Ave. Kansas City, MO 64153
sales@blackhawk-automotive.com
Capacity
2-1/2 Ton
SFA Companies
Printed in China
BH700B-M0_052016
Advertisement
Table of Contents
Related Manuals for Blackhawk Automotive BH700B
Summary of Contents for Blackhawk Automotive BH700B
- Page 1 Blackhawk Automotive is a Licensed Trade Mark Made by SFA Companies, Kansas City, MO Hydraulic Service Jack Operating Instructions & Parts Manual Model Capacity BH700B 2-1/2 Ton This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
- Page 2 Labels and Operator's Manuals are available from the manufacturer. PRODUCT DESCRIPTION Blackhawk Automotive Hydraulic Service Jack is designed to lift, but not support, one end of a vehicle. Immediately after lifting, loads must be supported by a pair of appropriately rated jack stands.
- Page 3 WARNING WARNING • Study, understand, and follow all instructions before operating this device. • Do not exceed rated capacity. To avoid crushing and related injuries: • Use only on hard, level surface. • Never work on, under or around a load supported •...
- Page 4 OPERATION Lifting 1. Follow the vehicle manufacturer’s recommended guidelines for lifting. Engage the emergency brake and chock each unlifted wheel in both directions to prevent inadvertent vehicle movement. 2. Close the release valve by turning the handle clockwise until firm resistance is felt. 3.
- Page 5 Handle - Red 248731 Universal Joint 234677 Front Wheel Assy G750-00000-000 Power Unit 239304 Saddle 6420-10000-000 Air Vent w/Gasket 234956 Handle Retaining Bolt 243618 Return Spring (2 pc.) 890-021-666 Pump Piston Assembly Figure 2 - Replacement Parts Illustration for Model BH700B...
- Page 6 TROUBLESHOOTING Symptom Possible Causes Corrective Action • Release valve not tightly closed • Ensure release valve tightly closed Jack will not lift load • Load is too heavy • Consider higher capacity jack • Release valve not tightly closed • Ensure release valve tightly closed Jack will lift, but not maintain •...
