Operating Instructions & Parts Manual
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
© November 2017
Made by
SFA Companies, Kansas City, MO

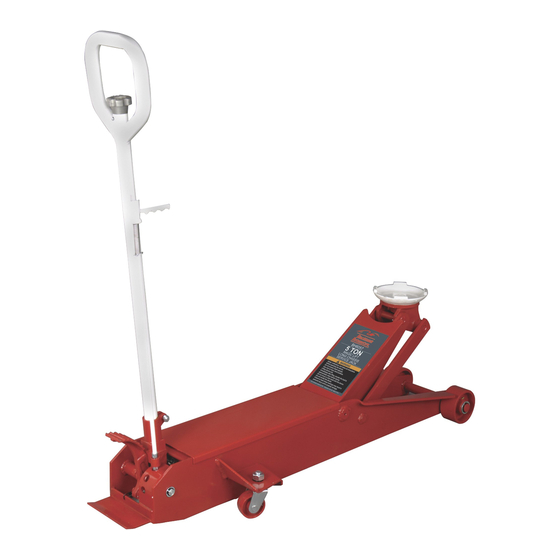

Magic Lift
Model
BH6057
BH6107
!
WARNING
To avoid crushing and related injuries:
NEVER work on, under or around a
load supported only by a hydraulic
jack. ALWAYS use adequately rated
jack stands.
TM
Service Jacks
10939 N. Pomona Ave. Kansas City, MO 64153
sales@blackhawk-automotive.com
Hydraulic
Capacity
5 Ton
10 Ton
SFA Companies
BH6057-M0_112017
Advertisement
Table of Contents
Related Manuals for Blackhawk Automotive Magic Lift BH6057
Summary of Contents for Blackhawk Automotive Magic Lift BH6057
- Page 1 Blackhawk Automotive is a Licensed Trade Mark Made by SFA Companies, Kansas City, MO Magic Lift Hydraulic Service Jacks Operating Instructions & Parts Manual Model Capacity BH6057 5 Ton BH6107 10 Ton WARNING To avoid crushing and related injuries: NEVER work on, under or around a load supported only by a hydraulic jack.
- Page 2 SAFETY and GENERAL INFORMATION Save these instructions. For your safety, read, understand, and follow the information provided with and on this jack before using. The owner and operator of this equipment shall have an understanding of this jack and safe operating procedures before attempting to use.
- Page 3 PREPARATION Assembly Insert handle into the handle sleeve. Tighten the bolt on handle sleeve to prevent accidental removal of handle while in use. Before Use 1. Verify that the product and application are compatible, if in doubt call Blackhawk Technical Service (888) 332-6419. 2.
- Page 4 OPERATION MAINTENANCE Lifting Important: Use ONLY premium grade hydraulic jack oil. Avoid mixing different types of fluid and Never use NOTICE Only attachments and/or adapters brake fluid, turbine oil, transmission fluid, motor oil or supplied by the manufacturer shall be used. Lift only glycerin.
- Page 5 REPLACEMENT PARTS (refer to page 5-9) Not all components of the jack are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. When ordering parts, please give the Model number, part number and parts description.
- Page 6 Replacement Parts Illustration for Model BH6107...
- Page 7 Replacement Parts List for Model BH6107 Part No. for: Item Description Model BH6057 Model BH6107 G251-20002-100 G661-40002-000 Reservoir G62S-03300-200 Air Vent Screw Assy. G251-20008-000 Filter G251-20004-000 Release Valve B300-14002-000 Washer G251-23001-000 G651-31002-000 Pump Cylinder G251-23002-000 G651-31001-000 Pump Piston G251-23000-000 G651-31000-000 Pump Assy.
- Page 8 TROUBLESHOOTING Symptom Possible Causes Corrective Action Jack will not lift load • Release valve not tightly closed • Ensure release valve tightly closed • Load is too heavy • Consider higher capacity jack Jack will lift, but not maintain • Release valve not tightly closed •...
