Blackhawk Automotive is a Licensed Trade Mark

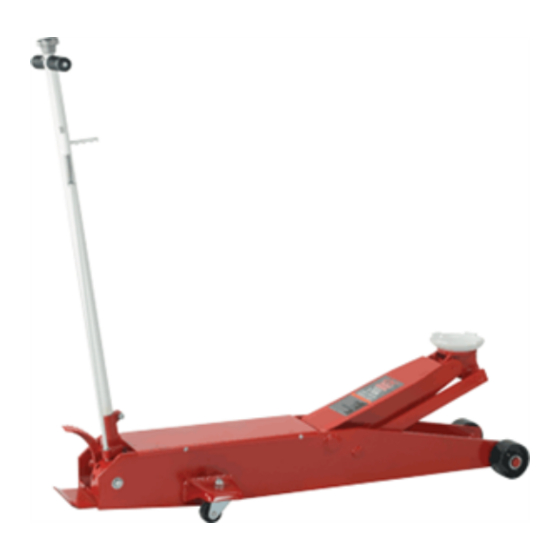

Long Chassis Hydraulic Service Jacks
Operating Instructions & Parts Manual
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
ADVERTENCIA
!
• Leer, comprender, y seguir las instrucciónes antes
de utilizar el aparato.
• El manual de instrucciónes y la información de
seguridad deben estar comunicado en lengua del
operador antes del uso.
• No seguir estas indicaciónes puede causar daños
personales o materiales.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
Made by
SFA Companies, Kansas City, MO
Model
BH6050
BH6051
BH6010
BH6011
(Manual)
(Air/Manual)
(Manual)
(Air/Manual)
WARNING
!
To avoid crushing and related injuries:
NEVER work on, under or around a
load supported only by a hydraulic
jack. ALWAYS use adequately rated
jack stands.
10939 N. Pomona Ave. Kansas City, MO 64153
sales@blackhawk-automotive.com
Capacity
5 Ton
5 Ton
10 Ton
10 Ton
SFA Companies
BH6050-M0_082018
Advertisement
Table of Contents
Related Manuals for Blackhawk Automotive BH6050
Summary of Contents for Blackhawk Automotive BH6050
- Page 1 Blackhawk Automotive is a Licensed Trade Mark Made by SFA Companies, Kansas City, MO Long Chassis Hydraulic Service Jacks Operating Instructions & Parts Manual Model Capacity BH6050 5 Ton (Manual) BH6051 5 Ton (Air/Manual) BH6010 10 Ton (Manual) BH6011 10 Ton (Air/Manual) This is the safety alert symbol.
-
Page 2: Safety And General Information
Labels and Operator's Manuals are available from manufacturer. PRODUCT DESCRIPTION Blackhawk Automotive Long Chassis Hydraulic Service Jacks are designed to lift, but not support, one end of a vehicle. Immediately after lifting, loads must be supported by a pair of appropriately rated jack stands. Air actuated function available for Models BH6051 &... - Page 3 PREPARATION Assembly Always secure the handle into the handle sleeve by means of the bolt lock washer and nut provided. Tighten securely to prevent accidental removal of handle while in use. Before Use 1. Verify that the product and application are compatible, if in doubt call Technical Service (816) 891-6390. 2.
-
Page 4: Operation
OPERATION Lifting Only attachments and/or adapters supplied by the manufacturer shall be used. Lift only on area of the vehicle as specified by the vehicle manufacturer. Note: The jack is equipped with handle position lock. To adjust the handle, release lock device by pulling the lever up, then back until lever is locked into place. -
Page 5: Troubleshooting
Cleaning Periodically check the pump piston and ram for signs of rust or corrosion. Clean as needed and wipe with an oily cloth. Note: Never use sandpaper or abrasive material on these surfaces! Storage When not in use, store the jack with saddle fully lowered. TROUBLESHOOTING Symptom Possible Causes... -
Page 6: Replacement Parts
When ordering parts, give Model number, serial number and parts description. Call or write for current pricing: SFA Companies, 10939 N. Pomona Ave. Kansas City, MO 64153, U.S.A. Tel:(816)891- 6390 Fax:(816)891-6599 E-Mail: sales@blackhawk-automotive.com Figure 2 - Replacement Parts Illustration for Model BH6050 & BH6051. - Page 7 Figure 3 - Replacement Parts Illustration for Model BH6011 & BH6010.
- Page 8 Replacement Parts List: Item Part# for BH6050 Part# for BH6051 Part# for BH6011 Part# for BH6010 Description G251-20008-000 G251-20008-000 Filter G250-20002-000 G100-40003-000 Reservoir G62S-03300-200 G62S-03301-000 Filler Plug 5901-00071-000 5901-00071-000 O-ring, D7.1x2.65 G250-20004-000 G251-20004-000 Release Valve B300-14002-000 B300-14002-000 Washer G651-31002-000 G651-31002-000...
