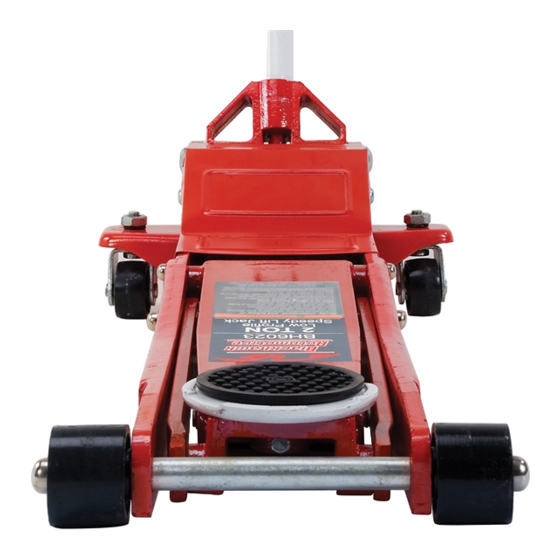

Fast Lift Low Profile Service Jack
Operating Instructions & Parts Manual
U.S. Patent No's. 6,199,379 • 5,946,912
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
ADVERTENCIA
!
• Leer, comprender, y seguir las instrucciónes antes
de utilizar el aparato.
• El manual de instrucciónes y la información de
seguridad deben estar comunicado en lengua del
operador antes del uso.
• No seguir estas indicaciónes puede causar daños
personales o materiales.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
Model
BH6023
WARNING
!
To avoid crushing and related injuries:
• NEVER work on, under or around
a load supported only by a hydraulic
jack.
• ALWAYS use adequately rated jack
stands.
10939 N. Pomona Ave. Kansas City, MO 64153
sales@blackhawk-automotive.com
Capacity
2 Ton
SFA Companies
Made in China
BH6023-M2 rev 07/10
Advertisement
Table of Contents
Related Manuals for Blackhawk Automotive BH6023
Summary of Contents for Blackhawk Automotive BH6023
- Page 1 • No seguir estas indicaciónes puede causar daños personales o materiales. SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 sales@blackhawk-automotive.com Read this manual and follow all the Safety Rules and Operating Instructions before using this product. Made in China BH6023-M2 rev 07/10...
- Page 2 NEVER place any portion of your body beneath the vehicle when lifting OR lowering! SPECIFICATIONS Model Capacity Jack Size (L x W x H) Min. Height Max. Height Saddle Dia. BH6023 2 Ton 42-1/2" x 13-3/4" x 6-3/4" 2-1/2" 20" 4-7/8"...
- Page 3 5. Replace worn or damaged parts and assemblies with Blackhawk authorized replacement parts only. Lubricate as instructed in Maintenance Section. handle lift arm saddle Vent screw (under cover plate, on reservoir) handle sleeve front wheel rear caster Figure 1 - Model BH6023 Components...
- Page 4 WARNING WARNING • Study, understand, and follow all printed materials provided with/on this product before use. • Do not exceed rated capacity. • Use only on hard, level surface. To avoid crushing and related injuries: • This is a lifting device only! •...
- Page 5 MAINTENANCE Important: Use only good grade hydraulic jack oil. Avoid mixing different types of fluid and Never use brake fluid, turbine oil, transmission fluid, motor oil or glycerin. Improper fluid can cause failure of the jack and the potential for sudden and immediate loss of load.
- Page 6 When ordering parts, give Model number, serial number and parts description. Call or write for current pricing: SFA Companies, 10939 N. Pomona Ave. Kansas City, MO 64153, U.S.A. Tel:(816)891-6390 Fax:(816)891-6599 E-Mail: sales@blackhawk-automotive.com Figure 2 - Replacement Parts Illustration for Model BH6023...
- Page 7 Replacement Parts List for Model BH6023 Item# Part# Description Qty. G86301-0001 Saddle Pad G86301-0017 Saddle G86308-0001 Hydraulic Unit G86301-0004 Front Wheel Assembly G86301-0003 Rear Caster Assembly G86301-0008 Handle Grip G86301-0019 Handle Assembly G86308-0003 Handle Sleeve G48900-0024 Bolt, M10x16 G86308-0004 U-joint...
- Page 8 ONE YEAR LIMITED WARRANTY For a period of one (1) year from date of purchase, SFA Companies will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy.
