KT&C 120-E230-001 Operation Manual

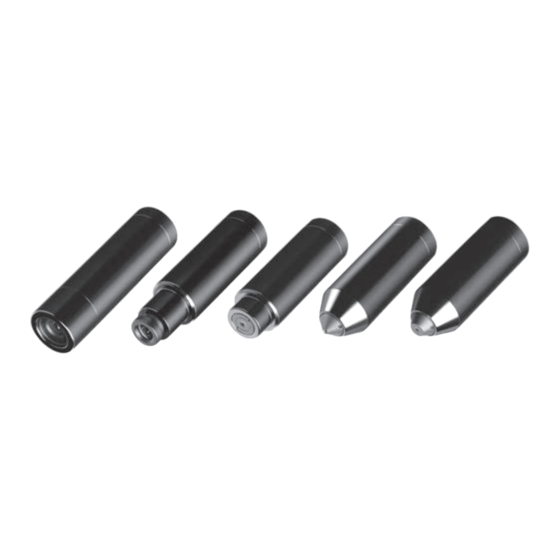

HIGH PERFORMANCE BULLET CAMERA
Thank you for choosing our high quality camera.
Before attempting to connect operate this unit, please read and follow these instructions.
ACCE SS OR I ES FU RN IS HE D
Bullet Camera
Mounting Bracket
S PECI FI CATI ON S
Signal Format
Image Device
Scanning System
H.Resolution
Scanning Frequency
Total Pixels
Effective Pixels
Electronic Shutter
S/N Ratio
Gamma
Min. Illumination
Sync System
Video Output
White Balance
2DNR
Power Consumption
Operating
Temperature
Storage
Humidity
Lens
Specifications and designs are subject to change for improving the functionality of this product without notice.
DI M EN SI O NS
Unit : mm
IN STA LL ATI ON
• MOUNTING POSITION
W h e n y o u i n sta l l t he ca mera, plea se glue u p t h e e n d o f ca b le t o ke e p i t s t abl e .
Th i s i s f o r p r o t ec t in g t he cam er a f r om t he h u m id it y p ro b le m s.
OPE RATI ON MANUAL
NTSC
15.734KHz(H), 59.94Hz(V)
1020(H) X 508(V)
976(H) X 494(V)
1/60 ~ 1/100,000 sec
• MONITOR CONNECTION
Screw 3ea
Operation Manual
1/3" 960H SONY EXview HAD CCD II
2 : 1 Interlace
700TV Lines
More than 50dB(AGC OFF)
r =0.45
0.1Lux
Internal
1.0 Vp-p Composite 75(Ω)
PUSH
ON
DC 12V (±10%), Max 83mA
14̊F ~ 122̊F(-10℃ ~ +50℃)
-4̊F ~ 140̊F(-20℃ ~ +60℃)
Less than 80%
Board Lens, Pinhole Lens
1/4"-20 UNC
BNC FEMALE
DC12V
M 12 0 - E 2 3 0 -0 0 1
PAL
15.625KHz(H), 50Hz(V)
1020(H) X 596(V)
976(H) X 582(V)
1/50 ~ 1/100,000 sec
Ф40
28.6
TV MONITOR
VIDEO IN
DC12V POWER SUPPLY
3-Ф3.2
