KT&C DR28V12IR Operation Manual

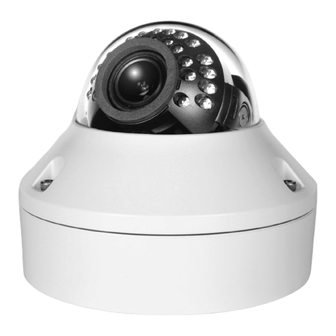

Ultra high resolution vandal dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ULTRA HIGH RESOLUTION
V AN DAL DOME C AMERA
OPER ATI ON M ANUAL
Thank you for choosing our high quality camera.
Before attempting to connect or operate, please read and follow these instructions.
M222-DR28V12-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR28V12IR and is the answer not in the manual?

Questions and answers

Related Manuals for KT&C DR28V12IR

Summary of Contents for KT&C DR28V12IR

  • Page 1 M222-DR28V12-001 ULTRA HIGH RESOLUTION V AN DAL DOME C AMERA OPER ATI ON M ANUAL Thank you for choosing our high quality camera. Before attempting to connect or operate, please read and follow these instructions.

  • Page 2: For Your Safety

    C O NT E NT S 1. NOTICES 2. FOR YOUR SAFETY 3. FEATURES 4. EQUIPMENT AND ACCESSORIES 5. OVERVIEW AND FUNCTION 6. INSTALLATION 7. CONNECTION 8. DIMENSIONS 9. SPECIFICATION 10. OSD MENU STRUCTURE CAU T ION These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
  • Page 3 1. N OT I C E S This device complies with Part 15 of FCC regulations. Operation is subject to the following two conditions: 1. This device may cause harmful interference. 2. This device may receive interference that can cause affect the operation of this equipment.
  • Page 4 1 . C AUT IO N S WEEE (Waste Electrical & Electronic Equipment) This marking shown on the product or its remove, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
  • Page 5 2 . F O R Y OU R S AF E T Y 1) All warning and instruductions in this manual should be followed. 2) Save this manual for future reference. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a dry cloth.
  • Page 6 3 . F E AT U R E S • Superlative resolution of over 750 horizontal TV lines for amazing image quality. • 960H CCD for sensor sensitivity of .001 lux in low light without DSS boost. 960H CCD sensor with high IR sensitivity. (LED Type) •...
  • Page 7 4 . EQ UI P ME N T AN D A C CE SS O R I ES Camera Manual Template Screws(3ea) / Plastic Anchors (3ea) Service Video Output Test Cable / Wrench / Micro Screw (1ea) Pigtail Cable (12VDC only) Pigtail Jack (Dual)

  • Page 8: Optional Accessories

    OP T I ON A L ACCE SSORIE S Box adapter - Junction box mount adapter for outdoor dome camera - Rough-in box adapter fits 1 or 2 gang or 4" octagonal/square/round boxes -Wall mount bracket : wall mount bracket with ½” conduit fittings top and bottom.

  • Page 9: Ov Ervi Ew A N D F U N C T I O N

    5 . OV ERVI EW A N D F U N C T I O N • LED Type IR LED OSD Joystick Service Video Connector • Standard Type OSD Joystick Service Video Connector...

  • Page 10: Installation

    6 . INS TAL LATI O N • LED Type Plastic Anchors Template Housing Bottom Lens Focus Knob Lens Zoom Knob Screws 3-AXIS Gimbal Shroud Dome Cover Cover Screws...
  • Page 11 6 . INS TAL LATI O N • Standard Type Plastic Anchors Template Housing Bottom Lens Focus Knob Lens Zoom Knob Screw 3-AXIS Gimbal Shroud Dome Cover Cover Screw...
  • Page 12 7 . C ON NE CT I O N DC 12V POWER SUPPLY - DC12V DC 1 2 V (D C J a c k) MO NI TO R V I DE O I N B N C FE MA L E V I D E O - DC12V/AC24V B N C F E M ALE...
  • Page 13 8 . D IM EN S I O N S Unit : mm(inch)

  • Page 14: Specification

    9 . SPE CIF I C ATI ON Standard type LED type Imaging Device 1/3" 960H High Sensitivity CCD Video Format NTSC / PAL Picture Elements NTSC: 1020(H)x508(V) / PAL: 1020(H) X 596(V) Effective Picture Elements NTSC: 976(H) x 494(V) / PAL: 976(H) X 582(V) Horizontal Resolution More than 750 TVL 0.001 lux native from sensor,...

  • Page 15: Menu Structure

    1 0. OS D M E N U ST R U CT U R E • Menu structure Main 1st Sub Menu 2nd Sub Menu 3rd Sub Menu BRIGHTNESS 0 ~ 255 IRIS SPEED 0 ~ 15 LENS RETURN SAVE&END MANUAL BRIGHTNESS 0 ~ 255...

  • Page 16: Day&Night

    1 0. OS D M E N U ST R U CT U R E Main 1st Sub Menu 2nd Sub Menu 3rd Sub Menu COLOR BURST OFF/ON OFF/ON IR GAIN 0 ~ 255 HEIGHT 0 ~ 15 IR SMART WIDTH 0 ~ 15 DAY&NIGHT...
  • Page 17 1 0. OS D M E N U ST R U CT U R E Main 1st Sub Menu 2nd Sub Menu 3rd Sub Menu OFF / ON AREA1 / AREA2 / AREA3 / AREA4 AREA SEL. AREA5 / AREA6 / AREA7 / AREA8 AREA STATE OFF / ON HEIGHT...
