TRASSIR TR-D2123IR3 User Manual

TRASSIR TR-D2123IR3 User Manual

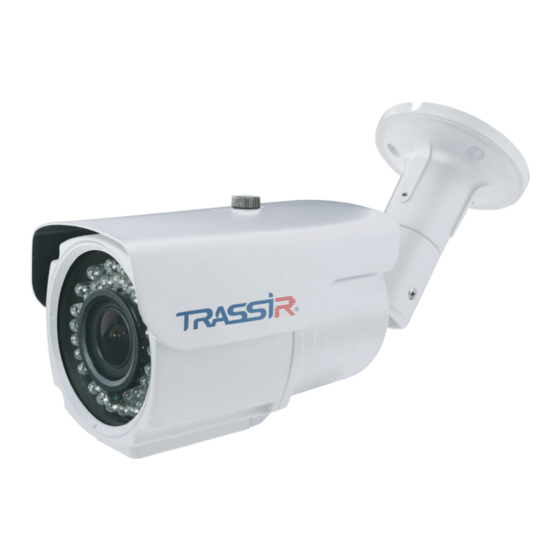

2mp varifocal bullet ip camera

Advertisement

Quick Links

Specification
Model
TR-D2123IR3
Image sensor
1/2.7" CMOS 2.1MP
Resolution
FullHD (1920x1080)
Frame rate
FullHD @25fps
Mechanical ICR
Day/Night Mode
Sensitivity
0.003Lux (F1.4)
0Lux (F1.4, IR on)
IR range
up to 35 m
Lens
Vari-focal 2.8-12 mm
WDR
Real WDR (96dB)
Video compression
Bitrate
USB-port
(USBHDD up to 128Gb)
Audio
Alarm In / Alarm Out
Power supply
PoE (802.3af) / 12V DC
Power consumption
Dimensions (mm)
99x84x246
(with bracket)
Net weight (g)
Ingress protection
Working temperature
-40°C ... +60°C
Camera Package
IP camera TR-D2123IR3
User manual
Н.264
8Mbps
USB 2.0
2-way
1 / 1
5 W
1025
IP66
1 pc
1 pc
TR-D2123IR3
2MP Varifocal Bullet IP camera
2MP
PoE
12V
Note: read User Manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
IR
Cut

Advertisement

loading
Need help?

Need help?

Do you have a question about the TR-D2123IR3 and is the answer not in the manual?

Questions and answers

Summary of Contents for TRASSIR TR-D2123IR3

  • Page 1 Dimensions (mm) 99x84x246 (with bracket) Net weight (g) 1025 Ingress protection IP66 Working temperature -40°C … +60°C Camera Package Note: read User Manual before using IP camera TR-D2123IR3 1 pc Website: www.trassir.com User manual 1 pc For any inquiry: info@trassir.com...
  • Page 2 Manual setting of network parameters. Introduction To get started with TRASSIR IP camera you are required to have a PC IP camera and PC should be in one local network to connect to each Congratulations with purchasing of IP camera TR-D2123IR3.
