TRASSIR TR-D2183ZIR6 Quick Start Manual

Specification
Model TR-D2183ZIR6
Image sensor 1/2.7" CMOS 8MP
Resolution 8MP(3840x2160)
Frame rate 8MP@15fps
Electronic shutter speed 1/3 ~ 1/1 000 s
Day/Night mode
Mechanical ICR
Sensitivity 0.003Lux (F1.3)
IR range
up to 60 m
Lens (mm) 2.7 - 13.5
Field of view (horiz./vert.) 101˚ - 32˚±3˚ / 53˚ - 18˚±3˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264+ / H.264
Bitrate up to 10Mbps
Local storage MicroSD up to 128GB
Audio Built-in microphone
AudioIn / AudioOut
Alarm In/Out
Corridor mode
IVS Human detection
Line crossing
Intrusion detection
Abandonned objects detection
Line crossing statistics
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 8.5W
PoE: 13W
Case material
Dimensions (mm) Ø74.5 x 215.8
Weight Net/Gross (g) 726 / 861
Ingress protection
Lightning protection TVS 2000V
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
3D DNR
1 / 1
Yes
0
Metal
IP67
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

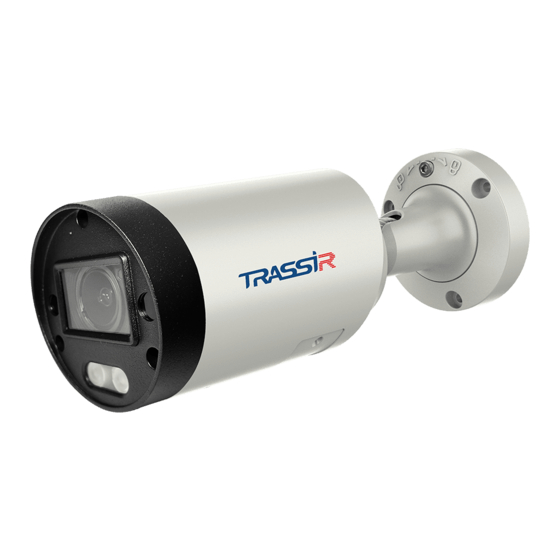

TR-D2183ZIR6
Outdoor IP camera with IR
H.265
8МP
HEVC
-40°
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
