TR NO: 142
Mechanical / Visual
1. Check paintwork for scratches and imperfections.
2. Check print graphics for switches are clear and aligned together.
3. Check Fuelbed for damage.
ELECTRICAL / FUNCTIONAL
Earth Continuity Test
High Voltage / I.R. Test
Press Flash Test button for 3 secs
KV meter must read 1500 volts
TEST MODE BUTTON PANEL (MASTER)
Turn Product ON by pressing Rocker Switch to ON position (l) to hear a BEEP
sound.
described below. Both MASTER and SLAVE will be tested individually.
TEST NO.
TEST MODE
1
2
3
4
5
6
7
NOTE: Sixteen (16) seconds after the last press of a button, the product will knock out of test mode and go straight into
standby mode. Alternatively switch off the product via the main ON/OFF switch.
TEST NO.
TEST MODE
1
2
3
4
5
6
7
NOTE: Sixteen (16) seconds after the last press of a button, the product will knock out of test mode and go straight into
standby mode. Alternatively switch off the product via the main ON/OFF switch.
BUTTON 7
BUTTON 6
BUTTON 4
BUTTON 5
BUTTON 3
TURNS ON THE ELEMENT.(CLICK SOUND SHOULD BE HEARD AND
BUTTON 2
BUTTON 1
BUTTON 7
BUTTON 6
BUTTON 4
BUTTON 5
BUTTON 3
TURNS ON THE ELEMENT.(CLICK SOUND SHOULD BE HEARD AND
BUTTON 2
BUTTON 1
Test Routine
PASS
Earth meter reads less than 0.1
ohms Green light come on
Red light at Flash button does
not come on Amp meter reads
less than 5mAmps
Then press the Test Mode button as
MASTER
TURNS ON THE MAIN LED'S
TURNS ON THE SOUND
TURNS ON THE TRANSDUCER
TURNS ON THE FAN
TURNS ON THE SOLINOIDS
THE READING ON THE CLARE TEST BOX IS BETWEEN 1.7A – 2A)
TURNS ON POWER TO THE FUELBED
SLAVE
TURNS ON THE MAIN LED'S
TURNS ON THE SOUND
TURNS ON THE TRANSDUCER
TURNS ON THE FAN
TURNS ON THE SOLINOIDS
THE READING ON THE CLARE TEST BOX IS BETWEEN 1.7A – 2A)
TURNS ON POWER TO THE FUELBED

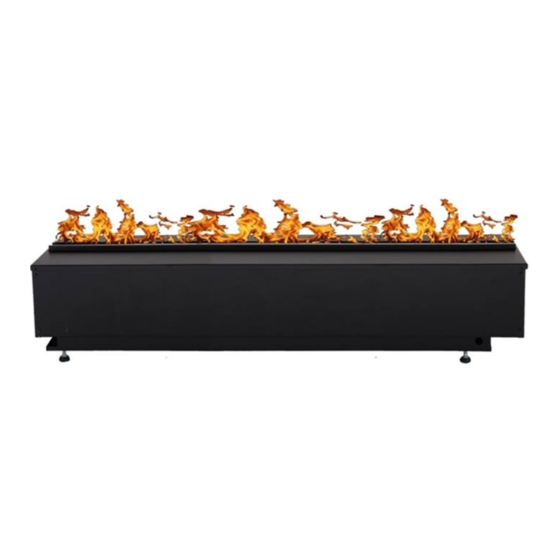

Product: CAS1000
Model: OMC1000L
Page 1 of 2
Earth meter reads over 0.1 ohms
Green light does not come on
Red light at Flash button comes on
Test ring alarms mAmp meter reads
more than 5mAmps
TEST MODE BUTTON PANEL (SLAVE)
FUNCTION
FUNCTION
FAIL
