Summary of Contents for Glen Dimplex Blaze B400

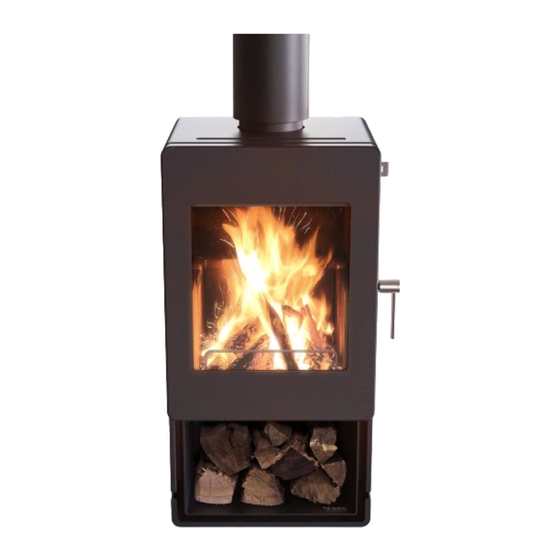

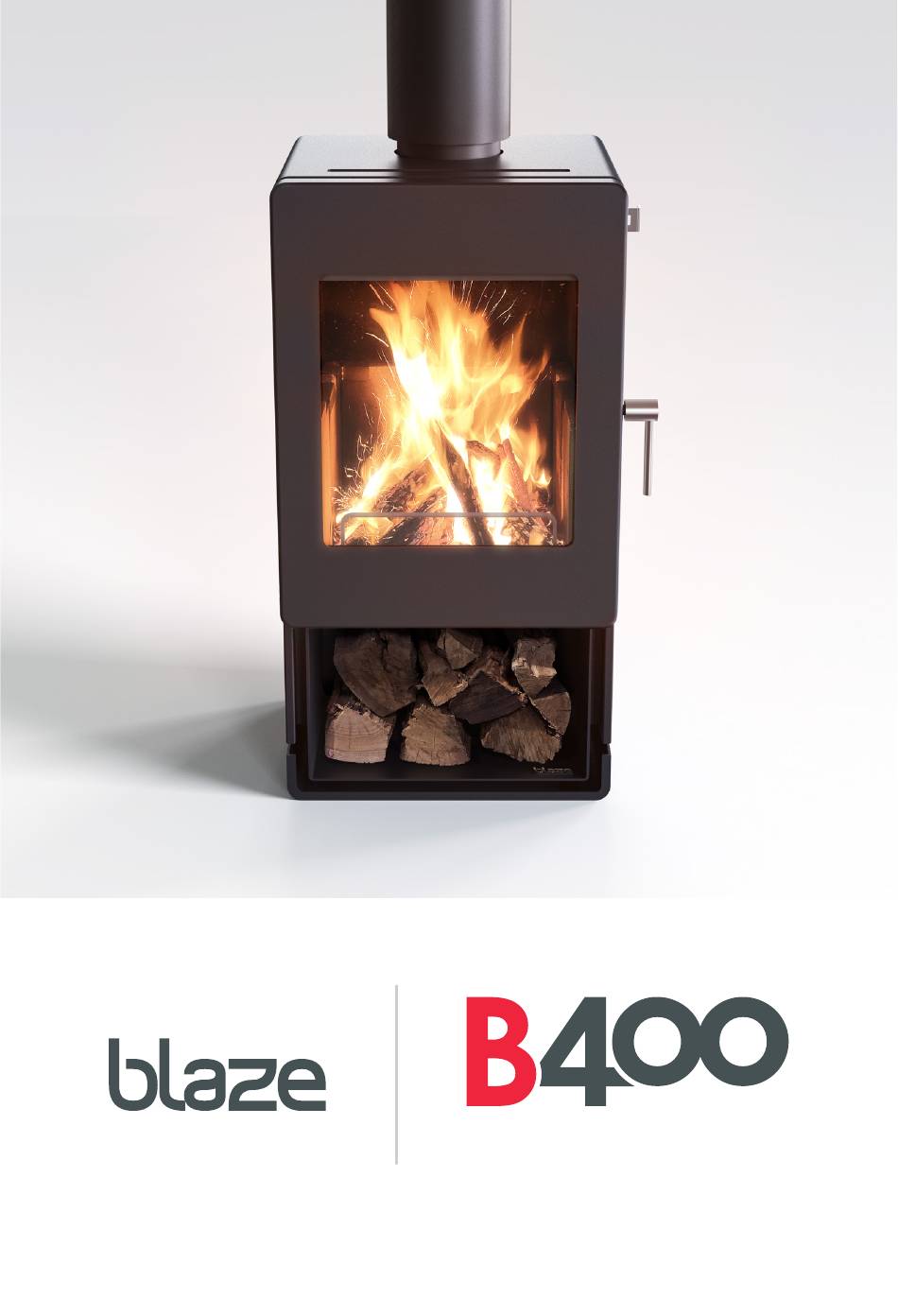

- Page 1 PORTRAIT WOOD HEATER OPERATING INSTRUCTIONS Contemporary Styled Wood Heaters...
- Page 2 Glen Dimplex Australia proudly supports the activities of Landcare Australia through its membership of the AHHA. BLAZE B400 VERSION 1.0...
-
Page 3: Table Of Contents
TABLE OF CONTENTS USER INSTRUCTIONS MAINTENANCE AND SERVICING Introduction ......Replacement of Fire Bricks ....1.1. -
Page 4: User Instructions
User Instructions INTRODUCTION 1.1. AIR CONTROLS Before use of this appliance please read these The Blaze B400 wood heater features a single air instructions fully. control system. It is designed to introduce oxygen into the base of the fire, controlling the rate of WARNING: ANY MODIFICATION OF THE APPLIANCE combustion of the wood. -
Page 5: Fan
RECOMMENDED FUELS 1.4. FAN The fan can be used to spread heat around the Burn only seasoned hardwood timber with a room quicker, as well as distribute heat into other moisture content of less than 20%. Newly cut rooms. It does not have to be on if not required. wood should be allowed to dry/season for 12 to 18 months before use. -
Page 6: Running The Appliance
RUNNING THE APPLIANCE 5.3. RELOAD WITH MORE WOOD Open air slide before opening door. 5.1. MAXIMUM HEAT OUTPUT After establishing the fire and loading it with larger Rake / break up any existing coals. pieces of wood, leave it running with the air slide Load the wood with the length oriented fully open (pulled all the way out). -
Page 7: Flue Draught
ASH REMOVAL 6.2. FLUE DRAUGHT The flue has two main functions: Depending on the type of wood burnt and frequency, the ashes will need removing every 2 To safely remove smoke, gases and fumes to 6 weeks. from the appliance. Retaining a minimum of 10mm of ash helps To provide a sufficient amount of draught protect the base of the firebox, and can make it (suction) in the appliance to ensure the fire... -
Page 8: Cleaning The Flue
10. CLEANING THE FLUE 11. TROUBLESHOOTING TIPS Check inside of flue prior to each season for any 11.1. GLASS IN DOOR BLACKENING build-up of creosote (wood tar). To do this: This can have several possible causes: First remove the baffle (refer to “2. ● Burning unseasoned wood — if the wood is Replacement of Baffle Plate” under too wet, it will cause the glass to blacken. Maintenance &... -
Page 9: Maintenance And Servicing
Maintenance and Servicing REPLACEMENT OF FIRE BRICKS The purpose of the firebricks in the appliance is to increase thermal mass and to guarantee the longevity of the steel firebox. Over time the firebricks may become cracked and crumble away. If so, they should be replaced. To replace the firebricks: Move any ash away from the bricks. Remove the brick retainers and the bricks. Replace with new bricks, and refit the retainers which hold the bricks in place. -
Page 10: Removing The Door
REMOVING THE DOOR ADJUSTING THE DOOR HINGE To remove the door: Over time the screws securing the door hinge plate to the heater may loosen resulting in the Open the door all the way. door dropping, i.e. visually appears on slight angle and no longer perfectly horizontal. -
Page 11: Adjusting The Door Latch
ADJUSTING THE DOOR LATCH LATCH BUSHING LATCH BUSHING 10MM OD 12.5MM OD BARREL NUT Over time, the door seal can become LATCH NUT compressed, resulting in a less than adequate LATCH BOLT seal between the door and the front edge of the firebox. For example, if the wood burns unusually fast even with the air slide shut, it may mean that there is an air leak around the door. -
Page 12: Fitting New Door Glass
FITTING NEW DOOR GLASS CHANGE FAN CONTROLLER FREQUENCY This task may be easier with the door removed from the heater and laid flat on a work-bench. The frequency used by the fan remote control can be changed if interferences are experienced To replace the door glass: in the home. Remove the six M8 button head screws and Unplug the power lead before proceeding. -
Page 13: Fan Replacement
FAN REPLACEMENT 10. RECEIVER REPLACEMENT Over the life of the heater, the fan may fail or Over the life of the heater, the fan receiver may become less efficient. In the event that the fan fail. If this occurs, it will need to be replaced. fails, it will need to be replaced. Unplug the power lead before proceeding. -
Page 14: Replacement Spare Parts List
1690mm x 19mm x 3mm Glass Seal flat adhesive backed Under the terms of this warranty, Glen Dimplex 405mm x 439.5mm x 5mm Door Glass Australia Pty. Ltd. assumes no responsibility for the Robax... - Page 16 Glen Dimplex Australia Pty Ltd 8 Lakeview Drive, Scoresby Victoria 3179 Australia T: 1300 556 816 | F: 1800 058 900 General & Sales Enquiries: flame@glendimplex.com.au Technical Service: service@glendimplex.com.au www.glendimplex.com.au...
