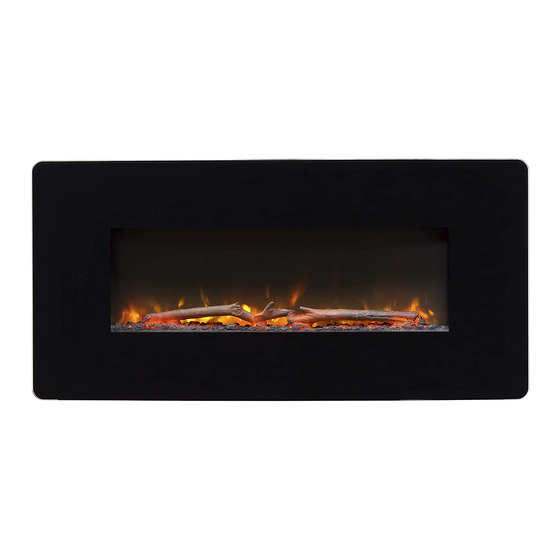

Glen Dimplex Dimplex SWM3520 Owner's Manual
  1. Manuals
  2. Brands
  3. Glen Dimplex Manuals
  4. Indoor Fireplace
  5. Dimplex SWM3520
  6. Owner's manual

Glen Dimplex Dimplex SWM3520 Owner's Manual

Hide thumbs

Advertisement

Table of Contents

Owner's Manual
Model: SWM3520
CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE
INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD,
AND/OR INJURY AND WILL VOID THE WARRANTY.
To view the full line of Dimplex products,
visit www.dimplex.com
A BRAND OF GLEN DIMPLEX AMERICAS
7215850100R02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dimplex SWM3520 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Glen Dimplex Dimplex SWM3520

Summary of Contents for Glen Dimplex Dimplex SWM3520

  • Page 1 INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY. To view the full line of Dimplex products, visit www.dimplex.com 7215850100R02 A BRAND OF GLEN DIMPLEX AMERICAS...

  • Page 2: Table Of Contents

    Table of Contents Welcome ..............3 IMPORTANT INSTRUCTIONS ......4 Specifications ............6 Installation ............7 Operation ............14 Maintenance ............17 Troubleshooting ..........18 Warranty .............19 Technical Support ..........21 Conventions used in this manual: NOTE: Procedures and techniques considered important enough to emphasize. CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment.

  • Page 3: Welcome

    Welcome Please use our convenient online registration page to record your model and serial numbers for future reference at: www.dimplex.com/register Model Number AIR HEATER CHAUFFE-AIR CAUTION CALENTADOR DE AIRE VOLTS VOLTIOS WATTS ATTENTION VATIOS CSA # XXXXX CAT. # № DE CAT. CAT.

  • Page 4: Important Instructions

    IMPORTANT INSTRUCTIONS Read this manual before attempting • Do not insert or allow foreign objects to enter any ventilation or exhaust to install or use the electric fireplace. opening as this may cause an electric Always comply with the warnings and shock, fire, or damage the fireplace.
  • Page 5 IMPORTANT INSTRUCTIONS FCC Compliance • Always connect to properly grounded outlets. CAUTION: This equipment has been tested and found to comply with the limits for • Do not run cord under carpeting. Class B digital devices, pursuant to part 15 Do not cover cord with throw rugs, of the FCC rules.

  • Page 6: Specifications

    Specifications Electrical Dimensions Voltage: 120VAC 60Hz Watts: 1400 Watts SWM3520 Amps: 12 A Width: 36" (91.5 cm) Wiring: Plug-In Height: 17-3/8" (44.1 cm) Bulb Type: LED Height with feet: 20-1/8" (51.0 cm) Depth: 5" (12.8 cm) Approvals: Depth with feet: 11" (28.0 cm) Weight 25.9 lbs (11.75 kg)

  • Page 7: Installation

    Installation GROUNDING INSTRUCTIONS • This product is equipped with a cord that has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Grounding •...
  • Page 8 Package Contents Tools required...
  • Page 9 Installation WALL-MOUNT INSTALLATION IN | PO | PLG (127 cm) MINIMUM / MÍNIMA IN | PO | PLG 91 cm MINIMUM / MÍNIMA...
  • Page 10 Installation Wall...
  • Page 11 Installation Wall TABLE TOP INSTALLATION...
  • Page 12 Installation Remove screw and save for step 3 Replace screw from step 2...
  • Page 13 Installation Feet...

  • Page 14: Operation

    Operation The fireplace can be operated with the multi–function IR remote control or from the control panel located on the right-hand side of the unit. The remote control has an operating range of up to 4m / 13ft. 1. Power ON / OFF 2.
  • Page 15 Operation POWER ON/OFF The Power ON/OFF button turns the fireplace ON and OFF. The fireplace has a built-in memory function. When the fireplace is turned back on, the display will show the last selected function and it will start at the last used settings (except timer).
  • Page 16 Operation Heater Enable & Disable Function: Press and hold the Heat Control button on the side of the fireplace for 10 seconds. The ember bed will flash five times to indicate that the heater is disabled. When the Heat Control button is pressed while the heat is disabled, the ember bed will flash but the heater will not operate.

  • Page 17: Maintenance

    Maintenance • Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim. • The motors used on the fan and the flame generator assembly are pre-lubricated for extended bearing life and require no further lubrication.

  • Page 18: Troubleshooting

    Maintenance Disposal of Used Batteries Batteries may contain hazardous substances that could be endangering to environment and human health. • This symbol marked on the battery and/or packaging indicates that used batteries shall not be treated as municipal waste. Instead they shall be left at the appropriate collection point for recycling.

  • Page 19: Warranty

    What Glen Dimplex Americas will do in the event of a defect What this limited warranty covers and for how long...
  • Page 20 • Limited warranty service will be performed solely by dealers or service agents of Glen What Glen Dimplex Americas and its dealers Dimplex Americas authorized to provide and service agents are also not responsible limited warranty services.

  • Page 21: Technical Support

    Make sure you have your sales receipt, location of purchase, and the model and serial number of your product. 1-888-346-7539 | www.dimplex.com/contact_us In keeping with our policy of continuous product improvement, we reserve the right to make changes without notice. © 2020 Glen Dimplex Americas...
