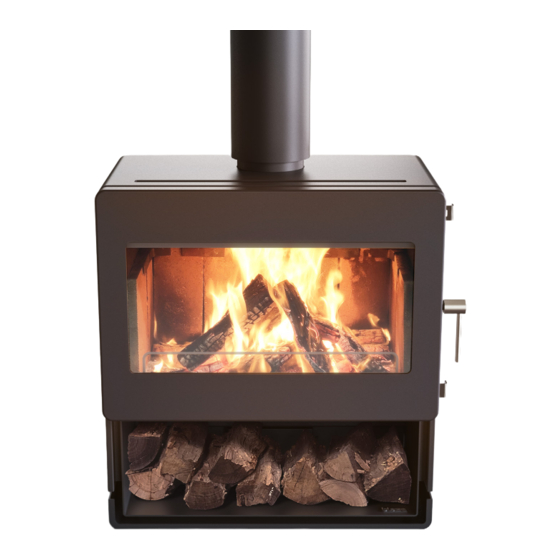

- Page 1 LANDSCAPE WOOD HEATER OPERATING INSTRUCTIONS Contemporary Styled Wood Heaters...
- Page 2 Glen Dimplex Australia proudly supports the activities of Landcare Australia through its membership of the AHHA. BLAZE B700 VERSION 1.0...
-
Page 3: Table Of Contents
TABLE OF CONTENTS USER INSTRUCTIONS MAINTENANCE AND SERVICING Introduction ......Replacement of Fire Bricks ....1.1. -
Page 4: User Instructions
User Instructions INTRODUCTION 1.1. AIR CONTROLS Before use of this appliance please read these The Blaze B700 wood heater features a dual air instructions fully. control system. The upper air slide, located at the top of the firebox, allows air to enter the firebox WARNING: ANY MODIFICATION OF THE APPLIANCE... -
Page 5: Wood Storage Compartment
USING APPLIANCE FOR THE FIRST 1.3. WOOD STORAGE COMPARTMENT TIME Warning: the Blaze B700 features a storage area for a small amount of firewood. Do not overload The first few times the appliance is lit, it will give off this compartment - ensure that there is at least a some odorous fumes. This is caused by the paint 10mm gap to the ceiling of the unit. -
Page 6: Lighting The Fire
LIGHTING THE FIRE 5.2. LOW HEAT OUTPUT The heat output of the appliance can be reduced Place firelighters or paper and dry kindling by closing the top air slide, which will restrict the wood in the base of the firebox. oxygen supplied to the fire and slow down the Light the paper or firelighters. rate at which the wood burns. Open both top and bottom air slides by This setting provides the best energy efficiency pulling the tab handles outwards. -
Page 7: Burning Tips
BURNING TIPS ● High and gusty winds 6.1. FUEL QUALITY ● Outside temperature and weather conditions Use wood with a moisture content of less than 20%. Logs should not feel moist or damp, or have ● Blocked flue moss and fungal growths. For advice on the correction of persistent flue Symptoms related to wet wood: problems consult your supplier/installer. -
Page 8: Cleaning The Flue
10. CLEANING THE FLUE 11. TROUBLESHOOTING TIPS Check inside of flue prior to each season for any 11.1. GLASS IN DOOR BLACKENING build-up of creosote (wood tar). To do this: This can have several possible causes: First remove the baffle (refer to “2. ● Burning unseasoned wood — if the wood is Replacement of Baffle Plate” under too wet, it will cause the glass to blacken. Maintenance &... -
Page 9: Maintenance And Servicing
Maintenance and Servicing REPLACEMENT OF FIRE BRICKS The purpose of the firebricks in the appliance is to increase thermal mass and to guarantee the longevity of the steel firebox. Over time the firebricks may become cracked and crumble away. If so, they should be replaced. To replace the firebricks: Move any ash away from the bricks. Remove the brick retainers and the bricks. Replace with new bricks, and refit the retainers which hold the bricks in place. -
Page 10: Removing The Door
REMOVING THE DOOR ADJUSTING THE DOOR HINGE To remove the door: Over time the screws securing the door hinge plate to the heater may loosen resulting in the Open the door all the way. door dropping, i.e. visually appears on slight angle and no longer perfectly horizontal. -
Page 11: Adjusting The Door Latch
ADJUSTING THE DOOR LATCH LATCH BUSHING LATCH BUSHING 10MM OD 12.5MM OD BARREL NUT Over time, the door seal can become LATCH NUT compressed, resulting in a less than adequate LATCH BOLT seal between the door and the front edge of the firebox. For example, if the wood burns unusually fast even with the air slide shut, it may mean that there is an air leak around the door. -
Page 12: Fitting New Door Glass
FITTING NEW DOOR GLASS CHANGE FAN CONTROLLER FREQUENCY This task may be easier with the door removed from the heater and laid flat on a work-bench. The frequency used by the fan remote control can be changed if interferences are experienced To replace the door glass: in the home. Remove the six M8 button head screws and Unplug the power lead before proceeding. -
Page 13: Fan Replacement
FAN REPLACEMENT 10. RECEIVER REPLACEMENT Over the life of the heater, the fan may fail or Over the life of the heater, the fan receiver may become less efficient. In the event that the fan fail. If this occurs, it will need to be replaced. fails, it will need to be replaced. Unplug the power lead before proceeding. -
Page 14: Replacement Spare Parts List
2012mm x 19mm x 3mm Glass Seal flat adhesive backed Under the terms of this warranty, Glen Dimplex 675.6mm x 329.6mm x Door Glass Australia Pty. Ltd. assumes no responsibility for the 5mm Robax... - Page 16 Glen Dimplex Australia Pty Ltd 8 Lakeview Drive, Scoresby Victoria 3179 Australia T: 1300 556 816 | F: 1800 058 900 General & Sales Enquiries: flame@glendimplex.com.au Technical Service: service@glendimplex.com.au www.glendimplex.com.au...
