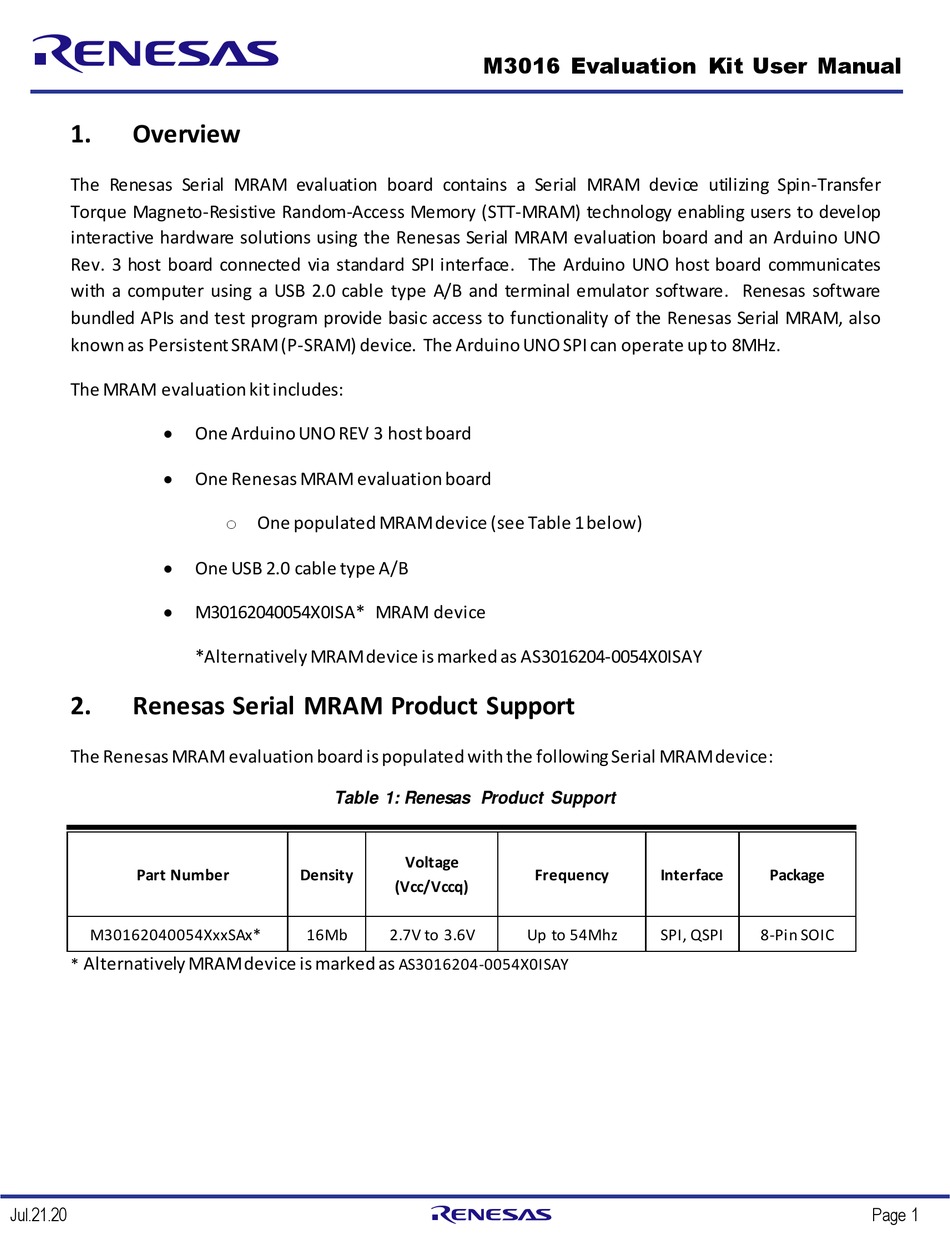

Renesas M3016 User Manual

1.

Overview

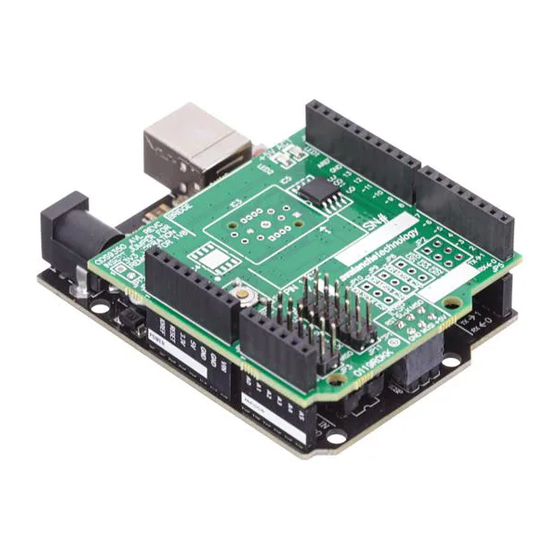

The Renesas Serial MRAM evaluation board contains a Serial MRAM device utilizing Spin-Transfer
Torque Magneto-Resistive Random-Access Memory (STT-MRAM) technology enabling users to develop
interactive hardware solutions using the Renesas Serial MRAM evaluation board and an Arduino UNO
Rev. 3 host board connected via standard SPI interface. The Arduino UNO host board communicates
with a computer using a USB 2.0 cable type A/B and terminal emulator software. Renesas software
bundled APIs and test program provide basic access to functionality of the Renesas Serial MRAM, also
known as Persistent SRAM (P-SRAM) device. The Arduino UNO SPI can operate up to 8MHz.
The MRAM evaluation kit includes:




2.

Renesas Serial MRAM Product Support

The Renesas MRAM evaluation board is populated with the following Serial MRAM device:
Part Number
M30162040054XxxSAx*
Alternatively MRAM device is marked as
*
Jul.21.20
One Arduino UNO REV 3 host board
One Renesas MRAM evaluation board
o One populated MRAM device (see Table 1 below)
One USB 2.0 cable type A/B
M30162040054X0ISA* MRAM device
*Alternatively MRAM device is marked as AS3016204-0054X0ISAY
Table 1: Renesas Product Support
Density
16Mb
M3016 Evaluation Kit User Manual
Voltage
Frequency
(Vcc/Vccq)
2.7V to 3.6V Up to 54Mhz
AS3016204-0054X0ISAY
Interface Package
SPI, QSPI 8-Pin SOIC
Page 1
