MS7724 Beginners Guide
Introduction
This page describes everything you need to know to get started with the MS7724 Evaluation Board (R0P7724LC001/21RL &
R0P7724LC002/21RL).
Hardware Inventory
The following items are included in your evaluation kit or may be ordered as accessory items from Renesas directly:
Item
MS7724 Board (R0P7724LC0011RL)
MS7724 Board (R0P7724LC0021RL)
R0P7724LE0011RL (available
accessory)
R0P7724LE0021RL (available
accessory)
CD-ROM
AC/DC Adapter
USB Memory
Hardware Set Up

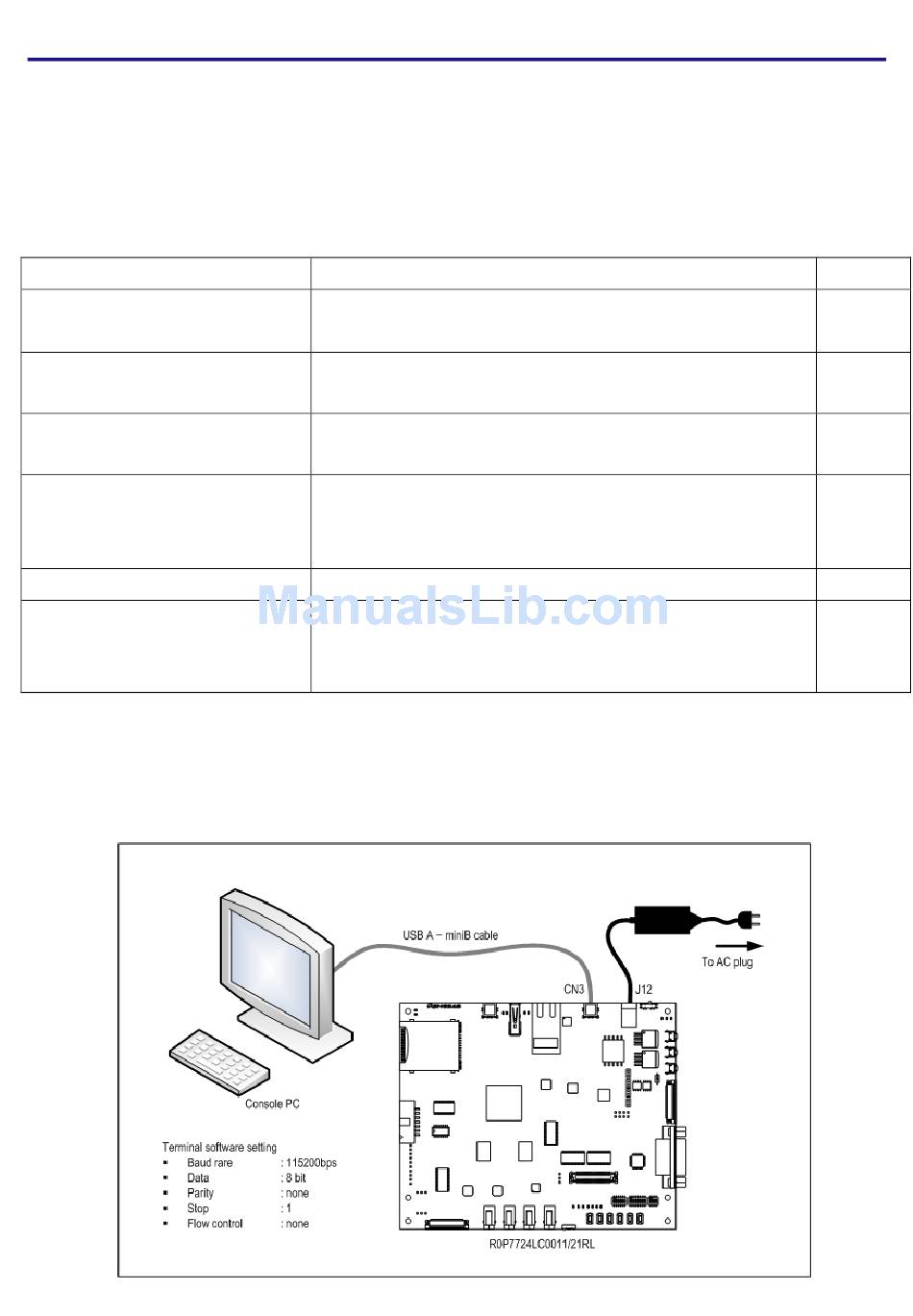

The following diagram describes basic configuration of the hardware prior to initial power up. Additional hardware such as a
DVI Monitor, network cable, etc. can be attached as required. Use of additional hardware is described below.
SH7724 Board limited spec version
SH7724 Board full spec version
Wide-VGA LCD extension board
HD(720p) camera module extension board
User's Manual
u-boot source code and binary
SH-Linux BSP (kernel 2.6.31*)
DC5V/4A
Thumb Drive The following content is written on the USB Memory
Thumbdrive:
- Linux root file system
Description Quantity
1
1
1 or 2
1
1
1
