SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, OPC UA
Server and DMX.
By Pressing the "Set Communication" button from the main window for SW67B37 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "Ethernet Connection" are:
In the field "Device Name
defined;
If the field "Obtain an IP Address Automatically (DHCP for Cable
is checked, DHCP for LAN connection is enabled;
If the field "Enable DNS" is checked, DNS protocol is enabled;
In the field "Primary DNS" the IP Address of the primary DNS server is defined;
In the field "Secondary
defined.
The means of the fields for "OPC UA" are:
In the field "IP Address" the IP address of the converter is defined;
In the field "Subnet Mask" the SubNet Mask of the converter is defined;
In the field "GATEWAY" the default gateway of the net is defined. This feature can
be enabled or disabled pressing the Check Box field. This feature is used for going
out of the net;
In the field "Port" the port used for OPC UA communication is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
(Hostname)" the Hostname to assign to the converter is
DNS" the IP Address of the secondary DNS server is
User Manual OPC UA Server / DMX
Document code: MN67B37_ENG Revision 1.000
Connection)"

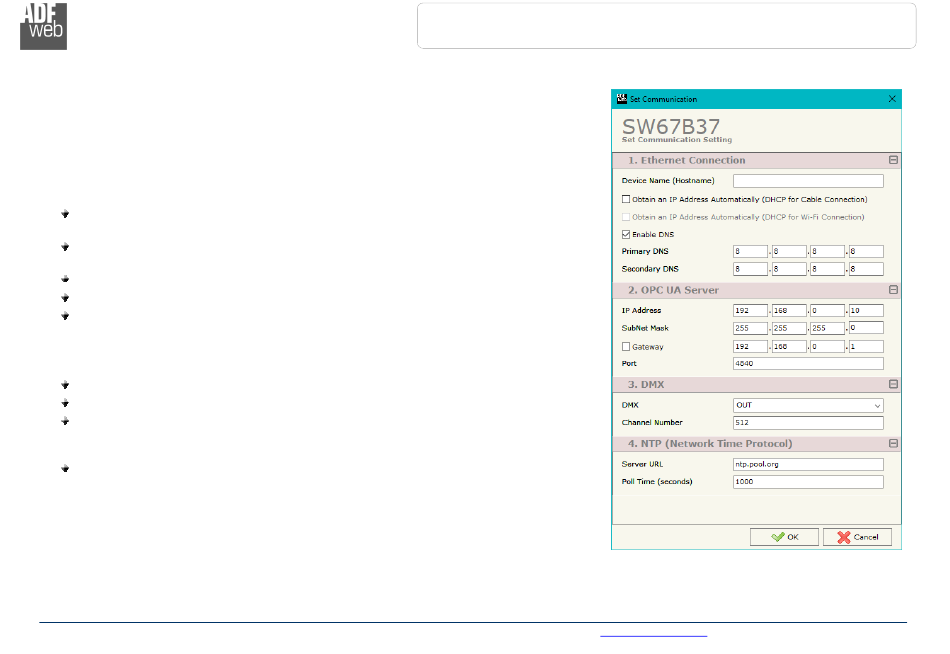

Figure 3: "Set Communication" window
