I N S T R U CT I O N M A N UA L
Trip-L-Trap®
Automatic Condensate Drains
Models 505 and 506
F O R M N O . : 4 0 1 1 2 3 7
R E V I S I O N : 0 4 / 2 0 1 4
R E A D A N D U N D E R S TA N D T H I S M A N UA L P R I O R TO O P E R AT I N G O R S E R V I C I N G T H I S P R O D U CT.
Model 506

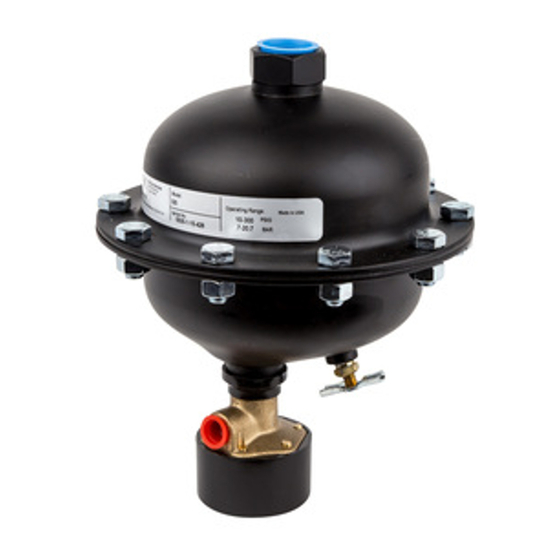

Model 505

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hankison Trip-L-Trap 505 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPX Hankison Trip-L-Trap 505

Summary of Contents for SPX Hankison Trip-L-Trap 505

  • Page 1 I N S T R U CT I O N M A N UA L Trip-L-Trap® Automatic Condensate Drains Models 505 and 506 F O R M N O . : 4 0 1 1 2 3 7 R E V I S I O N : 0 4 / 2 0 1 4 R E A D A N D U N D E R S TA N D T H I S M A N UA L P R I O R TO O P E R AT I N G O R S E R V I C I N G T H I S P R O D U CT.

  • Page 2: Table Of Contents

    CONTENTS GENERAL SAFETY INFORMATION ......1 DESCRIPTION ............. 1 III. INSTALLATION ............2 ENGINEERING DATA ........... 3 OPERATION ..............3 MAINTENANCE ............4 VII. REPLACEMENT PART NUMBERS ....... 7 VIII. TROUBLESHOOTING GUIDE ........8 WARRANTY ................. 9...

  • Page 3: General Safety Information

    I. GENERAL SAFETY INFORMATION CAUTION A. Pressurized devices This equipment is a pressure containing device. • Do not exceed maximum operating pressure as shown on equipment serial number tag. • Make sure equipment is depressurized before working on or disassembling it for servicing. B.

  • Page 4: Installation

    III. INSTALLATION 2. Drain Line While it is not always necessary, a drain line is normally recommended in order IMPORTANT: to keep condensate from spraying into DO NOT use a wrench on the valve body of the area in front of the discharge port. the drain.

  • Page 5: Engineering Data

    IV. ENGINEERING DATA 505HP 505SS 505HPSS 506HP 506SS 506HPSS Models 505BC 505BCHP 505BCSS 505BCHPSS 506BC 506BCHP 506BCSS 506BCHPSS Min./ Max. Operating Pressure psig 10/300 10/500 10/300 10/500 10/300 10/500 10/300 10/500 .69/21 .69/35 .69/21 .69/35 .69/21 .69/35 .69/21 .69/35 Min./ Max. Operating Temperature ºF 35/150 35/150...

  • Page 6: Maintenance

    VI. MAINTENANCE b. Remove nut (19) and lock washer g. Replace sleeve seal [“V” ring] (6) (11) from bottom of valve stem on valve sleeve making sure “V” assembly. For carbon steel models shape is in the same position as A.
  • Page 7 k. Lubricate piston seal and piston n. Before reassembling shell, make cylinder wall with lubricant supplied sure float mechanism moves freely in repair parts kit or silicone grease. up and down. l. Reassemble piston cylinder (13) o. On carbon steel models position to valve body with six screws (14).
  • Page 8 DIMENSIONAL DRAWINGS Condensate Inlet Top Connection Condensate Inlet Models Only Top Connection Models Only 21 36 21 36 VENT LINE CONNECTION BOTTOM CONNECTION MODELS ONLY CONDENSATE INLET BOTTOM CONNECTION MODELS ONLY MODELS 506SS, 506SSHP, MODELS 506, 506HP, 506SSBC & 506SSBCHP 506BC, &...

  • Page 9: Replacement Part Numbers

    VII. REPLACEMENT PART NUMBERS MODELS 505SS 506SS 505BC 505BCSS 506BC 506BCSS NAME REQ'D. 505HP 505HPSS 506HP 506HPSS 505BCHP 505BCHPSS 506BCHP 506BCHPSS Float (3) 3223828 3223828 3244801 3244801 Valve Body 3232348 4011390 3232348 4011390 Valve Stem (4) — — — — Valve Disc (1) 4011527 4011527...

  • Page 10: Troubleshooting Guide

    VIII. TROUBLESHOOTING GUIDE Symptom Possible Cause Corrective Action Drain stuck open - Air continuously 1. Bleed hole on bottom of piston cylinder 1. Use pin to open hole. being discharged. obstructed. 2. Worn seals . 2. Rebuild drain. See Section VI-B. Drain won’t discharge - condensate 1.

  • Page 11: Warranty

    WARRANTY The manufacturer warrants the product manufactured by it, when properly installed, operated, applied, and maintained in accordance with procedures and recommendations outlined in manufacturer’s instruction manuals, to be free from defects in material or workmanship for a period of one (1) year from the date of shipment to the buyer by the manufacturer or manufac- turer’s authorized distributor, or eighteen months from the date of shipment from the factory, whichever occurs first, provided such defect is discovered and brought to the manufacturer’s attention within the aforesaid warranty period.
  • Page 12 Models 505 and 506 1000 Philadelphia Street Canonsburg, PA 15317-1700 U.S.A. P: (724) 745-1555 F: (724) 745-6040 E: hankison.americas@spx.com www.hankisonintl.com Improvements and research are continuous at SPX. Specifications may change without notice. ISSUED 04/2014 Form No.: 4011237 Revision: B COPYRIGHT ©2014 SPX Corporation...
