SPX Power Team HNS150A Parts List, Assembly, And Operating Instructions

SPX Corporation
5885 11th Street
Rockford, IL 61109-3699 USA
Internet Address:
http://www.powerteam.com
NOTE:
•
For a detailed parts list or to locate a Power Team Authorized Hydraulic Service Center, contact your
nearest Power Team facility. A list of all Power Team facilities is located at the end of this document.
•
Carefully inspect the press upon arrival. The carrier, not the manufacturer, is responsible for any damage
resulting from shipment.
Safety symbols are used to identify any action or lack of action that can cause personal injury. Your reading
and understanding of these safety symbols is very important.
DANGER - Danger is used only when your action or lack of action will cause serious human injury or
death.
WARNING - Warning is used to describe any action or lack of action where a serious injury can occur.
IMPORTANT - Important is used when action or lack of action can cause equipment failure, either
immediate or over a long period of time.
These instructions are intended for end-user application needs. Many problems with new equipment are caused by
improper operation or installation. For a detailed parts list or to locate a Power Team Authorized Hydraulic Service
Center contact your nearest Power Team facility. A list of all Power Team facilities is located at the end of this
document.
WARNING: It is the operator's responsibility to read and understand the following
safety statements,
• Only qualified operators should install, operate, adjust, maintain, clean, repair, or
transport this machinery.
• These components are designed for general use in normal environments. These
components are not specifically designed for lifting and moving people, agri-food
machinery, certain types of mobile machinery or special work environments such as:
explosive, flammable or corrosive. Only the user can decide the suitability of this
machinery in these conditions or extreme environments. Power Team will supply
information necessary to help make these decisions.
© SPX Corporation
®
Tech. Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031

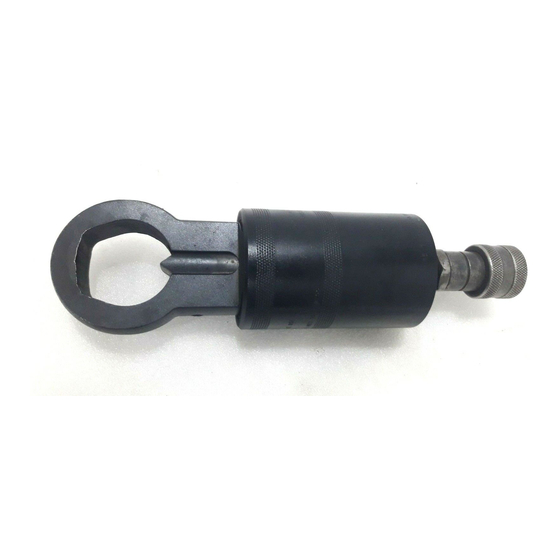

ANGLED NUT SPLITTER
19.9 Tons at 10,000 PSI
SAFETY DEFINITIONS
SAFETY PRECAUTIONS
Parts List, Assembly, and
Operating Instructions for:
Sheet No.
Rev 4
Form No. 102996
HNS150A
1 of 3
Date: 09 June 2005
