SPX OTC 1875 Manual

For pump assembly information, refer
to the parts list for pump No. 58139.
For cylinder assembly information,
•
If the cylinder has external "collar"
threads, refer to repair kit
No. 300147 and the parts list for
cylinder No. 58149.
•
If the cylinder does not have
external "collar" threads, refer to
repair kit No. 300618 and the parts
list for cylinder No. 218772-BL2.
Item Part No.
No. No. Req'd
1 306519 1
2 48513-BL2 1
3 217800 8
4 10085 2
5 10249 2
6 16342 2
7 48668-BL2 1
8 48512-BL2 1
9 310761-BL2 1
10 310759 4
11 311106 1
12 310760-BL2 1
13 15467 2
© SPX Corporation
SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
Phone: (507) 455-7000
Tech. Serv.: (800) 533-6127
Fax: (800) 955-8329
Order Entry: (800) 533-6127
Fax: (800) 283-8665
International Sales: (507) 455-7223
Fax: (507) 455-7063

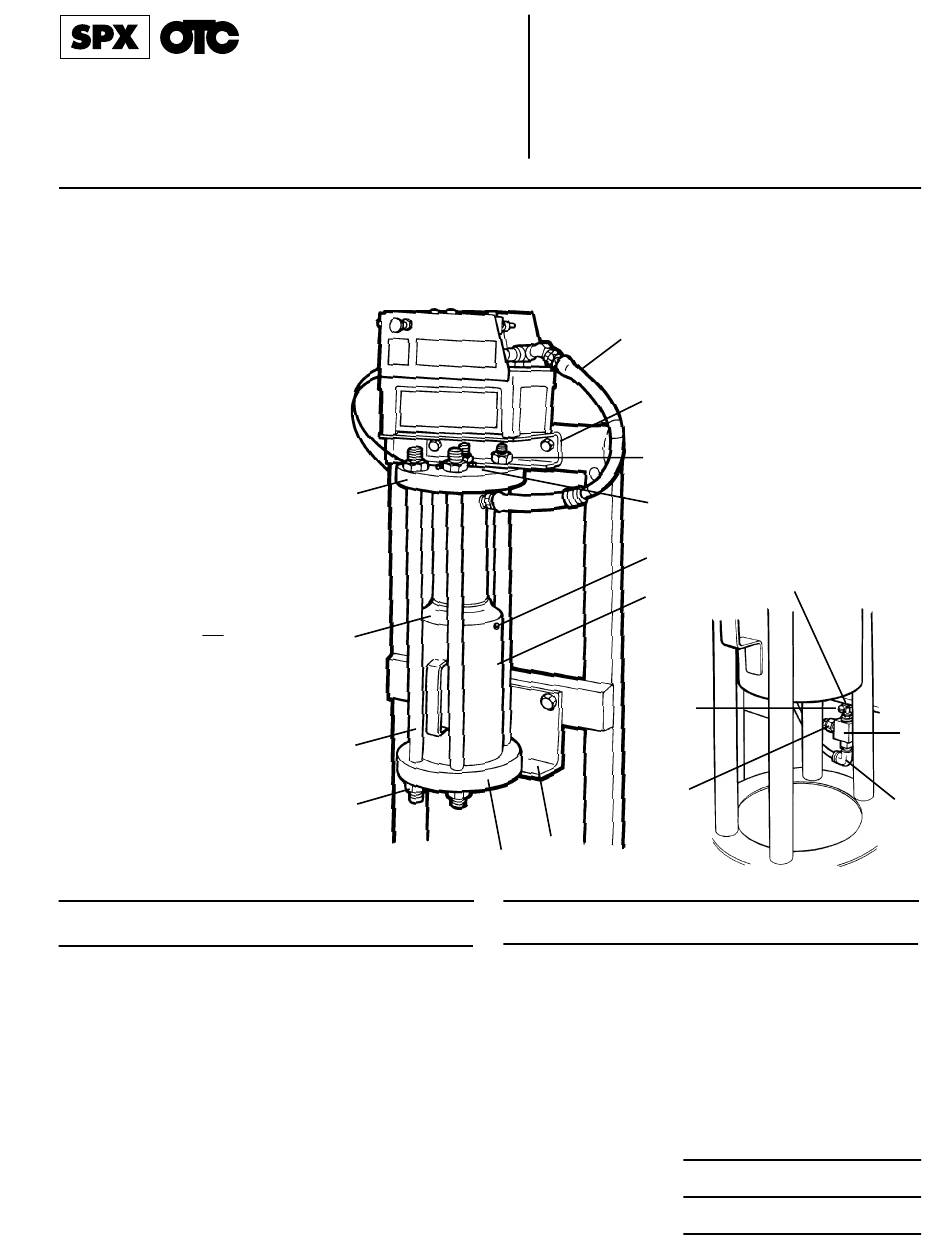

Automatic Air / Hydraulic
Oil Filter Crusher
Max. Capacity: 25 Tons
12
11
10
3
Description
Hydraulic Hose
Upper Mounting Bracket
Locknut (3/4-16; torque to
300/320 ft. lbs.)
Cap Screw (1/2-13 x 1-3/4")
Lockwasher (for 1/2" bolt)
Flat Hd. Tapping Screw
Shield
Lower Mounting Bracket
Bottom Plate
Rod
Plastic Shield
Top Plate
Rd. Hd. Phillips Screw
(10-24)
Parts List &
Operating Instructions
for:
1
2
3
4, 5
6
7
13
17
8
9
Item Part No.
No. No. Req'd
14 217732 1
15 311026 1
16 15045 1
17 15042 1
Parts Included but Not Shown
216703 1
311050 1
218390 1
210195 1
219001 1
Form No. 102610
14
Description
Mounting Bracket
Control Valve
90° Elbow Fitting
Straight Fitting
Made in USA Decal
Caution Decal
Thread Adapter
Barbed Hose Fitting
Retaining Compound
Sheet No.
1 of 2
Issue Date: Rev. 12-22-97
