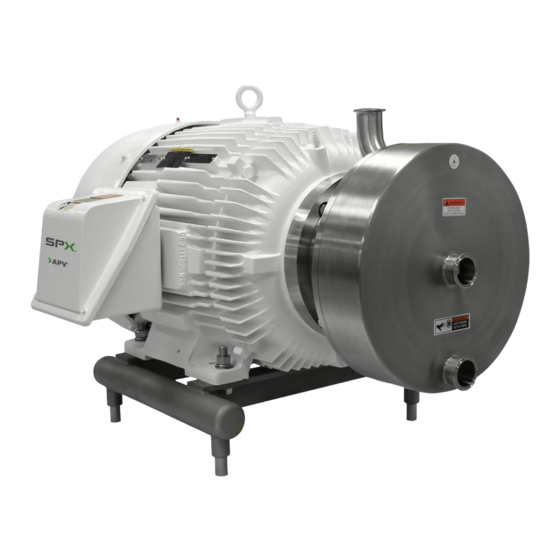

- Page 1 I N S T R U CT I O N M A N UA L APV Cavitator F O R M N O . : 4 5 6 4 2 4 - U S R E V I S I O N : 0 7 / 2 0 1 4...
-
Page 3: Table Of Contents
Cavitator Table of Contents Sectional drawing ..........................5 Warnings ............................... 6 Introduction to the Cavitator Program ....................7 3.1 Cavitator Program: ........................7 3.2 Cavitator choices and optional equipment ..................7 3.3 Determination of Cavitator Type ....................7 3.4 Determination of motor type ......................7 Installation of the Cavitator ........................ - Page 4 Cavitator 9.5.2 Manual cleaning ......................19 9.5.3 Installation with SIP- systems, Sterilizing in Place ............19 Cavitator Dimensions .......................... 20 10.1 Cavitator Dimension with NEMA Motor ..................20 10.2 Cavitator Dimension – with IEC Motor ..................21 Drawing and Parts List ........................22 11.1 Cavitator ............................
-
Page 5: Sectional Drawing
Cavitator Sectional drawing Back flange / outlet Rotor Housing / inlet Extension Stub shaft frame Cap nut Mechanical shaft seal 07/2014 456424-US Page 5... -
Page 6: Warnings
Personal injuries Never start the APV Cavitator before the guard above the Cavitator shaft has been securely mounted. The Cavitator contains rotating parts. Never put hands or fingers into a Cavitator while it is in operation. -
Page 7: Introduction To The Cavitator Program
With single or double mechanical shaft seal for SiC/C or SiC/SiC respectively With O-rings in EPDM or FPM (FKM) (Kalrez or others). The APV Cavitator can be delivered with all standard welded ferrules (S-Line, bevel seat, ISO, etc.) or with special aseptic connections prepared for sterile flushing. -
Page 8: Installation Of The Cavitator
Cavitator Installation of the Cavitator Positioning The Cavitator must be positioned so that the suction pipe is as short as possible and there is a falling gradient towards the suction nozzle. Keep the number of valves, bends and tee-fittings on the suction side at an absolute minimum. -
Page 9: Before Start-Up
Cavitator Before start-up Before starting the Cavitator, dismantle and clean the suction pipe and remove any foreign material in the Cavitator. Checking the Cavitator body for foreign material Remove the Cavitator housing as described below. The assembly drawing is to be used for reference. 1. -
Page 10: Putting The Cavitator Into Service
Cavitator Putting the Cavitator into service Check the following before starting the Cavitator: Make sure that the shaft guard has been fitted properly. Make sure that there is free access for liquid. Make sure that the feed pump has been started. Make sure that a minimum of 20 –... -
Page 11: Internal Shaft Seal
Cavitator Internal shaft seal Disassembly 1. Undo the housing screws and carefully remove the Cavitator housing. Unscrew the cap nut from the shaft and take off the rotor. 2. Remove the stationary seal face with the O-ring mounted in the back plate. -
Page 12: Fixing-Kit
Cavitator Fixing-kit Disassembly 1. After dismantling the back plate, remove the 4 screws that attach the fixing kit. The spring force will move the parts apart. 2. Remove the O-ring between the back plate and the fixing kit. 3. New parts can now be mounted. Assembly 1. -
Page 13: Recommended Stock Of Spare Parts
Cavitator Assembly 1. Before remounting the Cavitator shaft, remove any dirt and grease from the motor shaft and the stub shaft’s internal clamping surface. 2. Mount the Cavitator stub shaft loosely on the motor shaft. Position the balance holes at the stub shaft above the keyway on the motor shaft. -
Page 14: Technical Data
Cavitator Technical data Max. permissible discharge pressure of the Cavitator Do not exceed these values for the Cavitator’s discharge pressure (valid for water at 20°C (68°F). The values are also valid for the corresponding models of the Cavitator. Max. 10 bar (150 psig): Cavitator size: 8”, 12”, 14”, and 16” Tightening torque for impeller, inducer and shaft Tightening torque required for the screws in the stub shaft and for housing screws:... -
Page 15: Scale-Free Heating Duty
Cavitator Scale-free heating duty The heating is created by the internal disk friction between the rotor and the liquid. Because no hydraulic work is generated, almost all added energy is converted into heat. This will heat the product. The heating is thus generated by electrical energy added to the motor which drives the rotor. -
Page 16: Cavitation Duty
Cavitator Cavitation duty The Cavitator produces cavitation in each of the radial holes in the rotor when it rotates. This means that the greater the numbers of holes, the more cavitation is produced. In each hole hydro dynamic forces are created which cause interchange of pressure and kinetic energy. -
Page 17: Start And Stop Of The Cavitator
Cavitator 9.3.2 Start and stop of the Cavitator The start and stop of the Cavitator is very closely related to the start and stop of the feed pump. When the Cavitator is running, it generates energy and heat to the product. -
Page 18: Cleaning And Sanitizing
Cavitator Cleaning and sanitizing 9.5.1 Installation with CIP – systems, Cleaning in Place Cavitators are constructed so that they can easily be cleaned with CIP- methods for cleaning of processing plants. To achieve the necessary fluid velocities within the pump when cleaning, we recommend a differential pressure of 2-3 bars (29 –... -
Page 19: Manual Cleaning
Cavitator 9.5.2 Manual cleaning If desired, the APV Cavitator can also be cleaned manually; this can be done in conjunction with Disassembly for routine checks. Before starting up after idle periods of long duration, the machine should be cleaned manually and inspected. Please see section 7 on page 10 regarding inspection and maintenance. -
Page 20: Cavitator Dimensions
Cavitator Cavitator Dimensions 10.1 Cavitator Dimension with NEMA Motor M-Connection Size S-Line shown Typ. 3 places Sizes mm (in.) and Model Number 8” 12” 14” 14” 16” 16” 16” 215TC 284TSC 326TSC 326TSC 365TSC 326TSC 365TSC 405TSC 215.9 457.2 457.2 457.2 533.4 257.2... -
Page 21: Cavitator Dimension - With Iec Motor
Cavitator 10.2 Cavitator Dimension – with IEC Motor Adjustable Feet (only for 12”, 14” and 16”) M-Connection Size S-Line shown Typ. 3 places Sizes mm (in.) and Model Number 8" 12" 12" 12" 14" 14" 14" 16" 16" 16" 16" IEC 132 IEC 160 IEC 180... -
Page 22: Drawing And Parts List
Cavitator Drawing and Parts List 11.1 Cavitator 8A 8 16A 16B 13A 13B CA100-001 NEMA motor shown; IEC motor available. Double Mechanical Seal shown. See pages 28 and 29 for seal options. Page 22 456424-US 07/2014... - Page 23 Cavitator Part Number by Cavitator Size Item Qty. Description 8" 12" 14" 16" Housing 3mm Clearance, Clamp Connections 132482+ 132483+ 132484+ 132485+ 6mm Clearance, Clamp Connections 132505+ 132506+ 132507+ 132508+ Cap Nut L274213 L274214 L274214 L274214 O-ring (Cap Nut), EPDM L772489 L772491 L772491...
- Page 24 Cavitator Cavitator, continued 8A 8 16A 16B 13A 13B CA100-001 NEMA motor shown; IEC motor available. Double Mechanical Seal shown. See pages 28 and 29 for seal options. Items 13C, 15A, 16C, 19-23, 25 not shown. Page 24 456424-US 07/2014...
- Page 25 Label, Warning - Rotating Shaft 33-33 33-33 33-33 33-33 Label, Warning - Read Manual 121694 121694 121694 121694 Label, SPX/APV M681P442154 M681P442154 M681P442154 M681P442154 Motor Specify at time of order Leg Kit (Side Bars with Adjustable Legs) NEMA Motor, 213-215 TC 110254+...
- Page 26 Cavitator Cavitator, continued 8A 8 16A 16B 13A 13B CA100-001 NEMA motor shown; IEC motor available. Double Mechanical Seal shown. See pages 28 and 29 for seal options. Page 26 456424-US 07/2014...
-
Page 27: Seal Kits
Cavitator Part Number by Cavitator Size Item Qty. Description 8" 12" 14" 16" Frame (Tubular with Adjustable Legs), Glass Bead Finish (Polished finish is available) NEMA Motor, 284 TSC not available 132428+ 132428+ not available NEMA Motor, 286 TSC not available 132516+ 132516+ not available... -
Page 28: Single Mechanical Shaft Seal
Cavitator 11.3 Single Mechanical Shaft Seal Part Number by Cavitator Size Item Description 8” 12”, 14”, 16” Fixing kit, Single Mechanical Shaft Seal L772460 L772465 Face kit, Single Mechanical Shaft Seal, Sic/Sic, EPDM L782466 L782468 Face kit, Single Mechanical Shaft Seal, Sic/Sic, FKM L782464 L782469 Screw (Seal Housing to Back Plate), M6 - 1.0 x 10mm Lg... -
Page 29: Double Mechanical Shaft Seal
Cavitator 11.4 Double Mechanical Shaft Seal Part Number by Cavitator Size Item Description 8” 12”, 14”, 16” Fixing kit, Double Mechanical Shaft Seal L194448 L194449 Face kit, Double Mechanical Shaft Seal, Sic/Car, EPDM L782461 L782466 Face kit, Double Mechanical Shaft Seal, Sic/Sic, EPDM L782463 L782468 Face kit, Double Mechanical Shaft Seal, Sic/Car, FKM... -
Page 30: Rotors
Cavitator 11.5 Rotors 4 rows of holes 3 rows of holes 2 rows of holes Rotor Rotor data Width of Cavitator Diameter Rows of Number of Area ratio Part No. Type rotor Size: mm (inch) holes holes mm (inch) P285151 65 (2 ”) 8”... - Page 32 P: (262) 728-1900 or (800) 252-5200 F: (262) 728-4904 or (800) 252-5012 E: wcb@spx.com SPX reserves the right to incorporate our latest design and material changes without notice or obligation. Design features, materials of construction and dimensional data, as described in this bulletin, are provided for your information only and should not be relied upon unless confirmed in writing.
