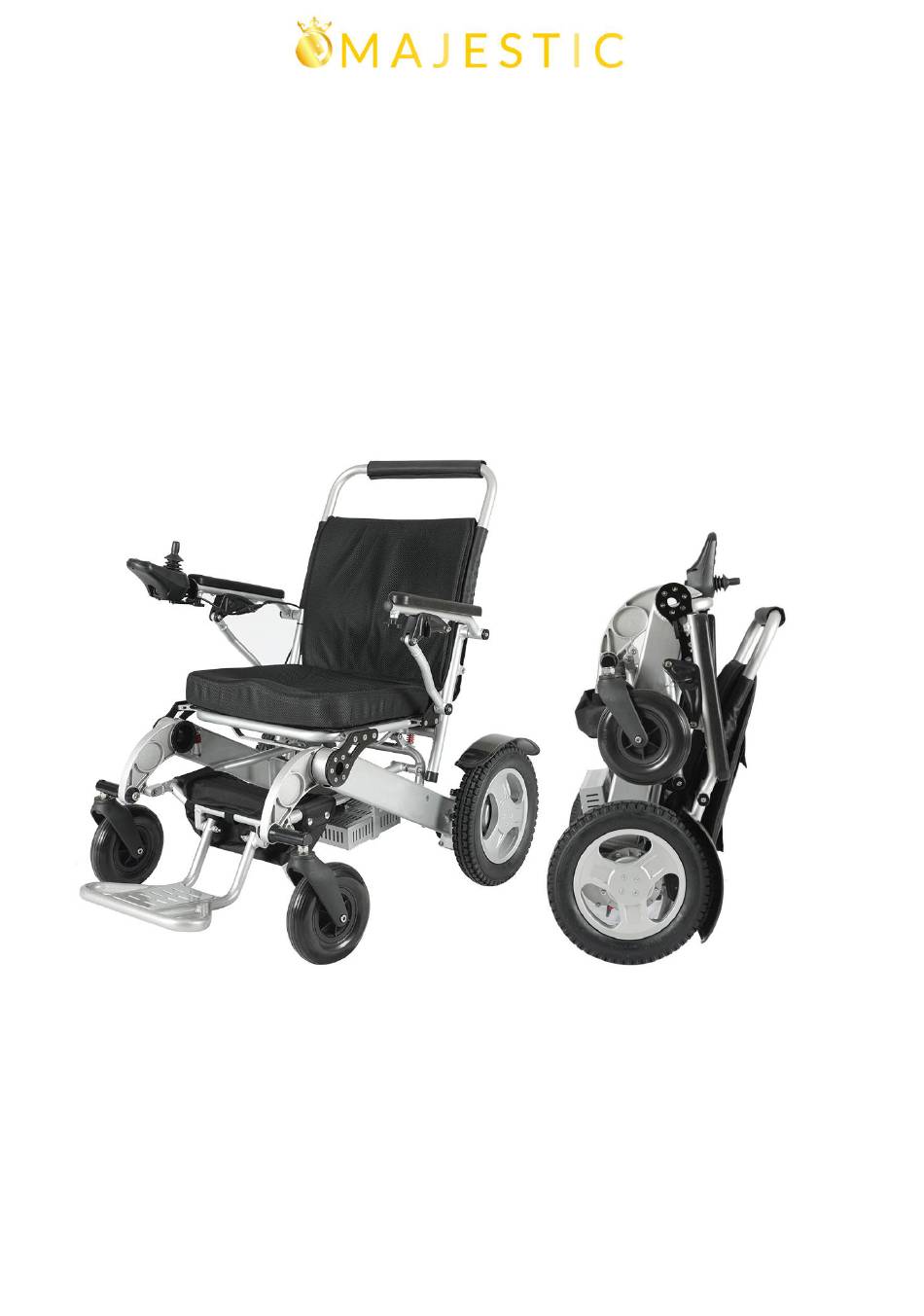

- Page 1 Comfy Go Mobility Folding Power Wheelchair PATRIOT 12 Operating Manual Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com, Tel:+1 844 755 5055...
-
Page 2: Table Of Contents
Comfy Go Mobility Contents Introduction.........................1 Specifications........................2 Specification Diagram......................3 Safe Operation.........................4-5 Precautions.........................6 Maintenance........................7 Electromagnetic Interference....................8 Install Setup........................9-11 Controller...........................12 Basic operation........................13 Charging Batteries......................14-16 Free Wheel Mode......................17 Transporting Your Fold Power Wheelchair PATRIOT 12...........18 Trouble shootings......................19 Diagnostics........................20 Warranty..........................21 Guarantee Card........................22 Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com,... -
Page 3: Introduction
Comfy Go Mobility Introduction Dear User, Thank you for choosing Fold Power Wheelchair PATRIOT 12 for your portable wheelchair transportation needs.The electric wheelchair will bring you freedom, it will to be your trusting and reliable friend. It is important to read through this manual before operating your Fold Power Wheelchair PATRIOT 12 to become familiar with its features as well as its limitations and safety information. -
Page 4: Specifications
Comfy Go Mobility Specifications Model PATRIOT 12 Material Aluminum alloy unfold size 1005*650*950mm fold size 650*350*750mm loading capacity 150kg Motor 250W*2pcs brushless motors Battery 24V 7AH*2 pcs lithium battery max speed 6km/hour Driving range 28KM front wheels 8” PU solid wheels rear wheels 10”... -
Page 5: Specification Diagram
Comfy Go Mobility Specification Diagram Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com, Tel:+1 844 755 5055... -
Page 6: Safe Operation
Comfy Go Mobility Safe Operation We think this is the most important section of manual; how to safely operate the Fold Power Wheelchair PATRIOT 12. Please review this section thoroughly and contact us if you have any questions. ◎ General safety: a. - Page 7 Comfy Go Mobility ◎ Getting out of the Fold Power Wheelchair PATRIOT 12 (1) Make sure to bring the Fold Power Wheelchair PATRIOT 12 to a complete stop. (2) Turn off the Fold Power Wheelchair PATRIOT 12 to avoid accidentally opening the joystick and moving the wheelchair.
-
Page 8: Precautions
Comfy Go Mobility Precautions Fold Power Wheelchair PATRIOT 12 Fold Power Wheelchair PATRIOT 12 Fold Power Wheelchair PATRIOT 12 Fold Power Wheelchair PATRIOT 12 Fold Power Wheelchair PATRIOT 12 Fold Power Wheelchair PATRIOT 12 Fold Power Wheelchair PATRIOT 12 Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com,... -
Page 9: Maintenance
Replacement parts and more major maintenance issues should be done by a professional. ◎ Batteries (1) Use batteries that have been supplied by Comfy Go Mobility only; our batteries are special lithium batteries designed specifically for use in the Fold Power Wheelchair PATRIOT 12. -
Page 10: Electromagnetic Interference
Comfy Go Mobility Electromagnetic Interference Powered vehicles such as the Fold Power Wheelchair PATRIOT 12 may be susceptible to electromagnetic interference, which is interfering electromagnetic energy emitted from sources such as radio station, TV station, amateur radio transmitters, two-way radios, and cellular phones. -
Page 11: Install Setup
Comfy Go Mobility Install Setup Your Fold Power Wheelchair PATRIOT 12 will arrive carefully packaged in a cardboard box. 1. Open the top of the box then turn the box on the side for easier pulling out the chair and contents. - Page 12 Comfy Go Mobility Grasp push bar Hold down seat to expand 4. Sit on the chair and Lean backwards to make sure the clip locker which located below the seat to the rear of the Fold Power Wheelchair PATRIOT 12, to lock the seat into place. This step is very important!!! 5.
- Page 13 Comfy Go Mobility 7. Connect the batteries, using battery serial connection cable to make two batteries in series line (or you can use two batteries dividually, No need to connect batteries in series line. ), tightening joints. 8. Connect batteries to the CPU which the wire comes from the wheelchair, and tightening joint .
-
Page 14: Controller
Comfy Go Mobility Controller The Fold Power Wheelchair PATRIOT 12 is equipped with a joystick style controller. Detail functions as shown: ◎ Controller and Driving Tips 1. Take some time in a safe, controlled environment to learn the operation of controller, the speed and the maneuverability of wheelchair. -
Page 15: Basic Operation
Comfy Go Mobility Basic operation Before operating your Fold Power Wheelchair PATRIOT 12, be sure to read all safety information and precautions included in this manual. Operate only in the appropriate environment after you have practiced operation the wheelchair and know how to work the controller. -
Page 16: Charging Batteries
Comfy Go Mobility Charging Batteries Your Fold Power Wheelchair will arrive with full charged batteries,which should last about 18km under normal operation conditions. We recommend that you run the Fold Power Wheelchair PATRIOT 12 until the batteries are completely dead in order to get the most out of the battery life. - Page 17 Comfy Go Mobility ◎ secondary charging method: You have the option of charging the batteries individually. 1. Turn off the main power. 2. Flip open the charger port protector on the front of battery. 3. Use the secondary charger pigtail to adapt the battery charger to plug into the battery directly.
- Page 18 13. Check the battery indicator light daily if you use the Fold Power Wheelchair frequently. 14. Do not use any battery chargers that have not been certified by Comfy Go Mobility. 15. If damaged, do not handle the battery without protective gloves and eyewear.
-
Page 19: Free Wheel Mode
Comfy Go Mobility Free Wheel Mode In order to have a care giver push the power wheelchair, it must be put in Free Wheel Mode. This mode disengages the drive mechanism to the wheels, making them free to push manually. We recommend that you turn off the power of wheelchair when in this mode, both for safety and to save battery power. -
Page 20: Transporting Your Fold Power Wheelchair Patriot 12
Comfy Go Mobility Transporting Your Fold Power Wheelchair PATRIOT 12 To transport your Fold Power Wheelchair, it is advised that you fold it up following the procedures below. Note: Never transport the power wheelchair in a tie up system (electric mode), as the Fold Power Wheelchair PATRIOT 12 is not compatible with them. -
Page 21: Trouble Shootings
Comfy Go Mobility Trouble shootings The following represents the most common questions asked about the Fold Power Wheelchair PATRIOT 12 with regard to every day use; check this helpful guide or the operator’s manual for more information if you have a question about using your power wheelchair. -
Page 22: Diagnostics
Comfy Go Mobility Diagnostics Your controller as an indicator light that, during normal operation, is a steady GREEN. This light also functions as a diagnostic tool by flashing in patterns that indicate problems. It is important to pay attention to these diagnostics in case the power wheelchair must be put out of use for safety reasons until maintenance can be performed. -
Page 23: Warranty
Comfy Go Mobility Warranty The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes: ※ Chair frame: 3 years ※ Motors: 1 year ※ Controller and CPU system: 1 year ※... -
Page 24: Guarantee Card
Comfy Go Mobility Warranty Card The guarantee card must be handed over to the after-sales department of the manufacturer in 15 days after returned to the dealer. The user name ID number Address Contact number Model Product number Purchasing date...
