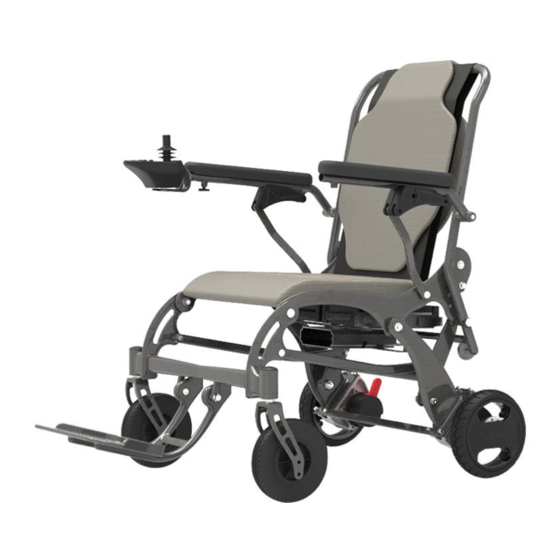

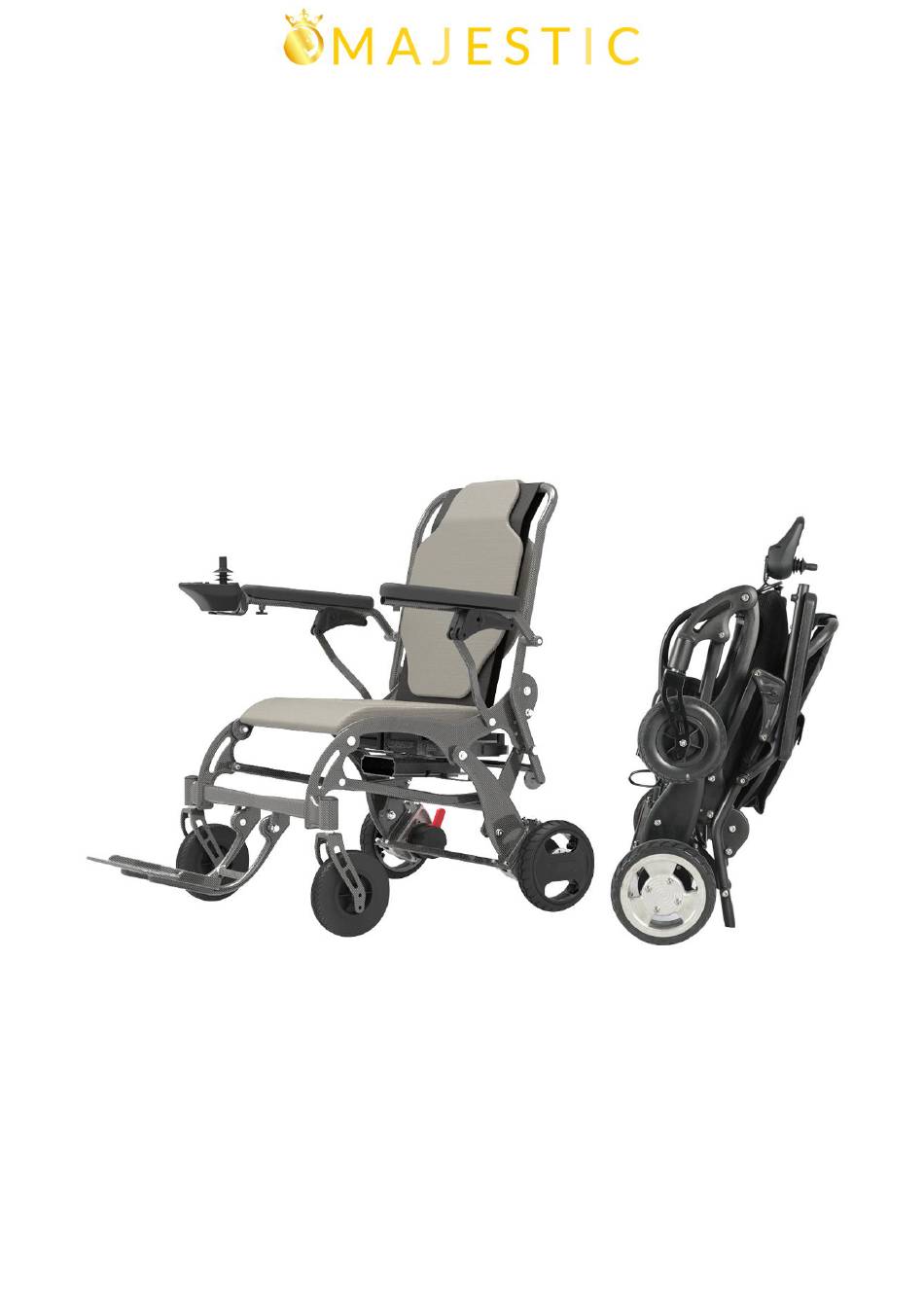

- Page 1 Comfy Go Mobility Folding Power Wheelchair PHOENIX Operating Manual Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com, Tel:+1 844 755 5055...
-
Page 2: Table Of Contents
Comfy Go Mobility Contents Introduction.........................1 Specifications........................2 Major Parts..........................3 Specification Diagram......................4 Safe Operation.........................5-6 Precautions..........................7 Maintenance........................8 Install Setup........................9-11 Folding and unfolding....................12-13 Controller...........................14 Basic operation.........................15 Charging Batteries.......................16-18 Free Wheel Mode......................19 Transporting Your Folding Power Wheelchair PHOENIX..........20 Trouble shootings......................21 Diagnostics........................22 Warranty...........................23 Warranty Card........................24 Web:www.ComfyGoMobility.com,... -
Page 3: Introduction
You will find the operation and care of your PHOENIX Power Wheelchair simple and easy. Disclaimer: Comfy Go Mobility and partners cannot be held responsible for personal injury or proper ty damage resulting from the unsafe or improper operation or maintenance of PHOENIX Power wheelchair. -
Page 4: Specifications
Comfy Go Mobility Specifications Model PHOENIX Material Carbon Fiber unFolding size 40.6 * 24.4 * 37 inches Folding size 24.4 * 15.7 * 34.4 inches loading capacity 265 lbs Motor 180W * 2 pcs Brushless Motor Battery 24V 6AH*2 pcs lithium battery max speed 3.75 mph... -
Page 5: Major Parts
Comfy Go Mobility Major Parts 1 Backrest 8 Left Armrest Support 15 Front Fork Assembly 2 Backreast Assembly 9 Seat Cushion 16 Right Front Wheel Assembly 3 Left Motor and Rear Wheel Assembly 10 Locking Hook 17 Left Front Wheel Assembly... -
Page 6: Specification Diagram
Comfy Go Mobility Specification Diagram Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com, Tel:+1 844 755 5055... -
Page 7: Safe Operation
Comfy Go Mobility Safe Operation This is the most important section of manual; how to safely operate the PHOENIX Power Wheelchair. Please review this section thoroughly. ◎ General safety: A. Adjust the PHOENIX Power Wheelchair to your personal comfort level as much as possible. - Page 8 Comfy Go Mobility ◎ Getting out of the Power Wheelchair PHOENIX (1) Make sure to bring the PHOENIX Power Wheelchair to a complete stop. (2) Turn off the PHOENIX Power Wheelchair to avoid accidentally opening the joystick and moving the wheelchair.
-
Page 9: Precautions
Comfy Go Mobility Precautions Folding Power Wheelchair PHOENIX in water of any kind. Folding Power Wheelchair PHOENIX Folding Power Wheelchair PHOENIX Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com, Tel:+1 844 755 5055... -
Page 10: Maintenance
Wheelchair to result in faulty operation and may cause harm to you or other people, therefore: A. Use fasteners that have been supplied by Comfy Go Mobility. B. Using the tools included with your Folding Power Wheelchair PHOENIX, tighten any fasteners that become loose as soon as possible. -
Page 11: Install Setup
Comfy Go Mobility Install Setup Your Folding Power Wheelchair PHOENIX will arrive carefully packaged in a cardboard box. 1. Open the top of the box then turn the box on the side for easier pulling out the chair and contents. - Page 12 Comfy Go Mobility 4. Sit on the chair and Lean backwards to make sure the clip locker which located below the seat to the rear of the PHOENIX Power Wheelchair, to lock the seat into place. This step is very important !!! 5.
- Page 13 Comfy Go Mobility 7. Hold strip of battery with one hand sliding into one side of battery channel for installation of battery. 8. Take out battery by holding the strip of battery pulling out by hand. 9. Make sure batteries are slided in the battery holder completely for proper power connection.
-
Page 14: Folding And Unfolding
Comfy Go Mobility Folding and unfolding Making sure all the attaching parting are fastened properly after any adjustment , repair or maintenance, for avoiding any damage or injury. The wheelchair with certain weight that requires correct way of lifting up to avoid injury. - Page 15 Comfy Go Mobility Procedure for wheelchair unfolding ◎ 1. Unfold food pedal first. 2. Hold the top of backrest with one hand, the other hand hold front end of seat. 3. Both hand push away till a “Click” sound heard for completely unfold the wheelchair.
-
Page 16: Controller
Comfy Go Mobility Controller The Folding Power Wheelchair PHOENIX is equipped with a joystick style controller. Detail functions as shown: ◎ Controller and Driving Tips 1. Take some time in a safe, controlled environment to learn the operation of controller, the speed and the maneuverability of wheelchair. -
Page 17: Basic Operation
Comfy Go Mobility Basic operation Before operating your Folding Power Wheelchair PHOENIX, be sure to read all safety information and precautions included in this manual. Operate only in the appropriate environment after you have practiced operation the wheelchair and know how to work the controller. -
Page 18: Charging Batteries
Comfy Go Mobility Charging Batteries Your Folding Power Wheelchair will arrive with full charged batteries,which should last about 18km under normal operation conditions. We recommend that you run the Folding Power Wheelchair PHOENIX until the batteries are completely dead in order to get the most out of the battery life. - Page 19 Comfy Go Mobility ◎ Second Charging Method: ◎ More information on the Folding Power Wheelchair PHOENIX batteries... 1. The Fold Power Wheelchair comes with two charged 24V 6AH lithium batteries. 2. Charged the batteries for 3-4 hours for each battery.
- Page 20 Comfy Go Mobility 12. The life cycle of a lithium battery is measured in charging cycles with an average of 500 charge cycles. 13. Check the battery indicator light daily if you use the PHOENIX Power Wheelchair frequently. 14. Do not use any battery chargers that have not been certified by Monarch Mobility.
-
Page 21: Free Wheel Mode
Comfy Go Mobility Free Wheel Mode In order to have a care giver push the power wheelchair, it must be put in Free Wheel Mode. This mode disengages the drive mechanism to the wheels, making them free to push manually. We recommend that you turn off the power of wheelchair when in this mode, both for safety and to save battery power. -
Page 22: Transporting Your Folding Power Wheelchair Phoenix
Comfy Go Mobility Transporting Your Folding Power Wheelchair PHOENIX To transport your Folding Power Wheelchair, it is advised that you Folding it up following the procedures below. Note: Never transport the power wheelchair in a tie up system (electric mode), as the Folding Power Wheelchair PHOENIX is not compatible with them. -
Page 23: Trouble Shootings
Comfy Go Mobility Trouble shootings The following represents the most common questions asked about the Folding Power Wheelchair PHOENIX with regard to every day use; check this helpful guide or the operator’s manual for more information if you have a question about using your power wheelchair. -
Page 24: Diagnostics
Comfy Go Mobility Diagnostics Your controller as an indicator light that, during normal operation, is a steady GREEN. This light also functions as a diagnostic tool by flashing in patterns that indicate problems. It is important to pay attention to these diagnostics in case the power wheelchair must be put out of use for safety reasons until maintenance can be performed. -
Page 25: Warranty
Comfy Go Mobility Warranty The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and time frames: ※ Chair frame: 3 years ※ Motors: 1 year ※ Controller and CPU system: 1 year ※... -
Page 26: Warranty Card
Comfy Go Mobility Warranty Card User Name ID No. Address Phone No. Model PHOENIX Product No. Purchasing Date (month) (day) (year) Manufacturer Distributor (stamp or signature) Distributor (Phone,Address) Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com, Tel:+1 844 755 5055...
