Summary of Contents for Comfy Go Mobility X-1 Special Edition

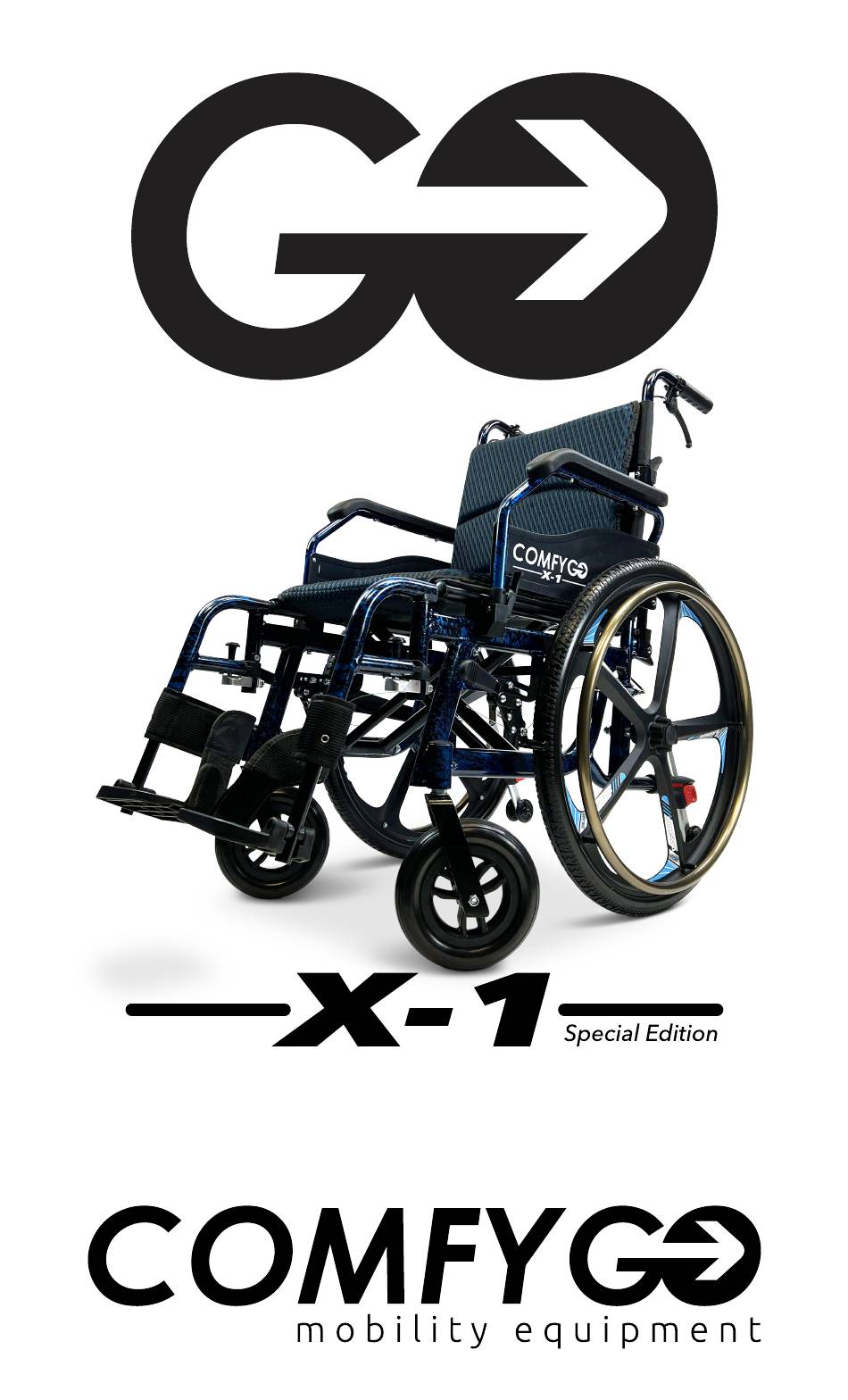

- Page 1 User Manual / Warranty...
-
Page 2: Table Of Contents
Table of Contents Preface Product Performance Safety Instructions Usage and Operation Maintenance Areas Tech Support Warranty For all of your spare parts needs, please visit www.ComfyGoMobility.com Don't forget to register your product to activate your warranty, de- tailed information can be found on page 21. If you need technical support please contact our customer support team. -
Page 3: Preface
Preface Please read the user manual carefully before using this product. - This manual contains the operation, assembly methods, and and simple faults solutions. The manual applies to our model: X-1 - This manual contains wheelchair maintenance information and self checking methods. -
Page 4: Product Performance
1. Product Performance This series wheelchair is suitable for use at low speeds, on good road conditions, and moderate slopes. Performance Parameters and Technical Specs, X-1 Overall size 41.5” x 26" x 37.5”(1050x660x950mm) Fold size 31.5" x 15.5” x 30”(800x400x760mm) Seat size* 17.5”... - Page 5 1. Product Performance Main Structure This series of electric wheelchairs is composed of one main part: - The Frame: Frame, Wheels, Footrest, Armrests, Backrest, etc. Application Range This wheelchair is designed for individuals who have physical disabilities that limits their mobility. This wheelchair is designed to carry individuals weighing less than 100kg (220lbs).
-
Page 6: Safety Instructions
2. Safety Instructions General Riding Cautions - While using this wheelchair, keep your hands on the hand rims to properly control the wheelchair. - To avoid injury, first practice using this wheelchair in a safe and open environment, such as a park. Practice moving forward, backward, stopping, and turning. - Page 7 2. Safety Instructions Precautions for Uphill and Downhill - Avoid riding on steep hills, uneven surfaces, high steps, channels or any other steep areas. - Avoid riding on steep slopes, the slope range should be less than 8 degrees. - Use brakes during downhill descent. - Avoid driving sideways on steep areas.
- Page 8 2. Safety Instructions Compatibility with Other Devices The wheelchairs should not be used together in conjunction with any other devices. If you need to connect a device to it, please contact ComfyGO Mobility, so that we may confirm that the wheelchair will not be adversely affected.
- Page 9 2. Safety Instructions - The product is not intended for persons with visual impairment. - The driver needs to be mentally and physically suitable to drive the wheelchair. - The safety of using this wheelchair as a substition to a seat in a motor vehicle has not been established.
-
Page 10: Usage And Operation
3. Usage and Operation Please visit YouTube channel for a detailed Usage and Operations explanation. Simply search "ComfyGO Mobility Lightweight Foldable Wheelchair (Model # X-1)" on YouTube. www.youtube.com/c/ComfyGO... - Page 11 3. Usage and Operation 3.1 Wheelchair Adjustments Folding Your Wheelchair Step 1: Pull the joint switches back and pull down both rear handles (Picture 1). Step 2: Pull the seat cushion up with your hands and push the wheel- chair inwards (Picture 2). . Unfolding Your Wheelchair : When the wheelchair is partially apart, pull the armrests apart while pushing the seat cushion down until you hear the seat click into place.
- Page 12 3. Usage and Operation Assemble and Dissemble the Footrest Install the footrest into the frame tube and push the footrest into the fixed position. To disassemble, lift the footrest puller then turn the footrest outwards then lift the footrest (Picture 5 and 6) Picture 5 Picture 6 When adjusting the length of the footrest, the user should sit in the...
- Page 13 3. Usage and Operation Install and Dismantle the Anti-tipper Pull the switch to install or uninstall the anti-tipper (Picture 8 and 9). Picture 8 Picture 9 Before the first use, please adjust the anti-tipper to a proper setting that won’t allow the wheelchair to tip backwards. When this wheelchair is delivered to you, the anti-tipper is preset to the highest position which does not provide any anti-tip func- tionality.
- Page 14 3. Usage and Operation Picture 10 Picture 11 When adjusting length of foot rests or leg rests, user should be sitting in wheelchair with feet on the foot plates. Loosen bolt on the clamp around support assembly. Raise or lower foot plate to desired position that will provide maximum support of thighs.
- Page 15 3. Usage and Operation Getting on and off the wheelchair When getting on or off wheelchair, please make sure that the front castors are set in the backwards position as to not interfere with your feet, both parking brakes are engaged, and the footplates are folded up.
- Page 16 3. Usage and Operation Riding the wheelchair If your wheelchair is equipped with a safety belt, please make sure to fasten your safety belt while in use to prevent falling out of the wheelchair. When sitting in the wheelchair, position yourself as far back as possible in the wheelchair so that your back is touching the backrest.
- Page 17 3. Usage and Operation Moving on inclines and declines 1) If your wheelchair comes equipped with a safety belt, please wear it when in motion 2) Avoid riding on steep inclines or declines. The maximum incline/de- cline angle for this wheelchair is 8 degrees 3) If possible, have an attendant or caregiver with you when riding on slopes 4) When on an incline slope, lean slightly forward to move your center...
- Page 18 3. Usage and Operation Climbing Steps or Curbs - Riding up low steps or curbs can be done by moving forward up the curb at a low speed. Make sure to keep your hands on the hand rims as you ascend and make sure that the footplates do not touch step or curb.
-
Page 19: Maintenance Areas
4. Maintenance Areas Maintaining Your Wheelchair Maintenance of wheelchair includes general cleaning of the wheel- chair, checking and tightening all nuts and bolts. Checking the wheels and tires. Checking the battery, battery cables, and battery connec- tions. Checking the battery charge level. For further maintenance, please contact with your dealer. - Page 20 4. Maintenance Areas Regularly check these parts to avoid losing parts or causing excessive wear and tear. 1. Screws, nuts, and bolts 2. Brakes and brake lever 3. The front and rear wheels and tire tread depth 4. Wheel axles 5.
- Page 21 4. Maintenance Areas 3) Coating The high quality of the surface layer guarantees optimal protection against corrosion. When cleaning, use warm water, mild detergents and a sponge or soft brush. Be sure that no wetness gets into the tubes or frame. 4) Inspection We recommend one full inspection every year and general inspections before each use.
-
Page 22: Tech Support
5. Tech Support Please visit https://www.comfygomobility.com/product-registration/ register your product and activate your warranty now. When you register your ComfyGO Wheelchair, you ensure that you may be eligible for an extended warranty service. You will also receive product updates and important news from ComfyGO products. - Page 23 6.Warranty Policy - Our goal is to ensure that you are delighted with your purchase. - According to our warranty agreement, all new products have a limit- ed warranty. All batteries have a six-month warranty. Spare parts have a one-year warranty. The limited warranty does not include labor or device failure due to the owner's misuse or negligence, non-durable components and components subject to normal wear and tear that need replacement from time to time (for example rubber materials, ac-...
- Page 24 www.ComfyGoMobility.com...
- Page 25 1. Product Performance This series wheelchair is suitable for use at low speeds, on good road conditions, and moderate slopes. Performance Parameters and Technical Specs, X-1 Overall size 40” x 24.5” x 36” (1020x620x910mm) Fold size 29.5“ x 14” x 28” (750x350x710mm) Seat size* 17.5”...
