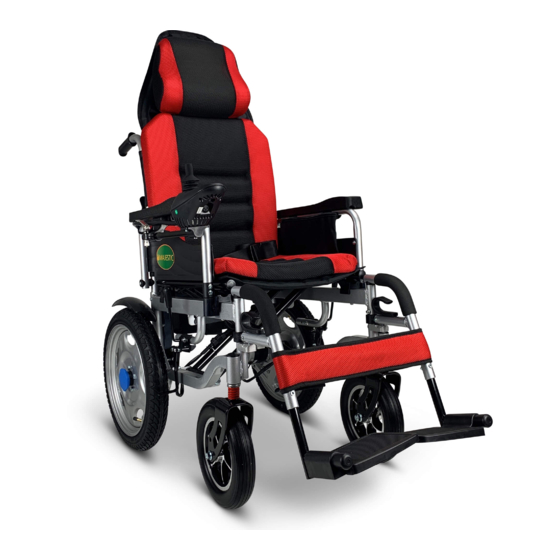

Comfy Go Mobility BC-6011 User Manual And Warranty

Hide thumbs

Advertisement

Quick Links

Download this manual
BC-6011
User Manual / Warranty

Advertisement

loading
Need help?

Need help?

Do you have a question about the BC-6011 and is the answer not in the manual?

Questions and answers

Related Manuals for Comfy Go Mobility BC-6011

Summary of Contents for Comfy Go Mobility BC-6011

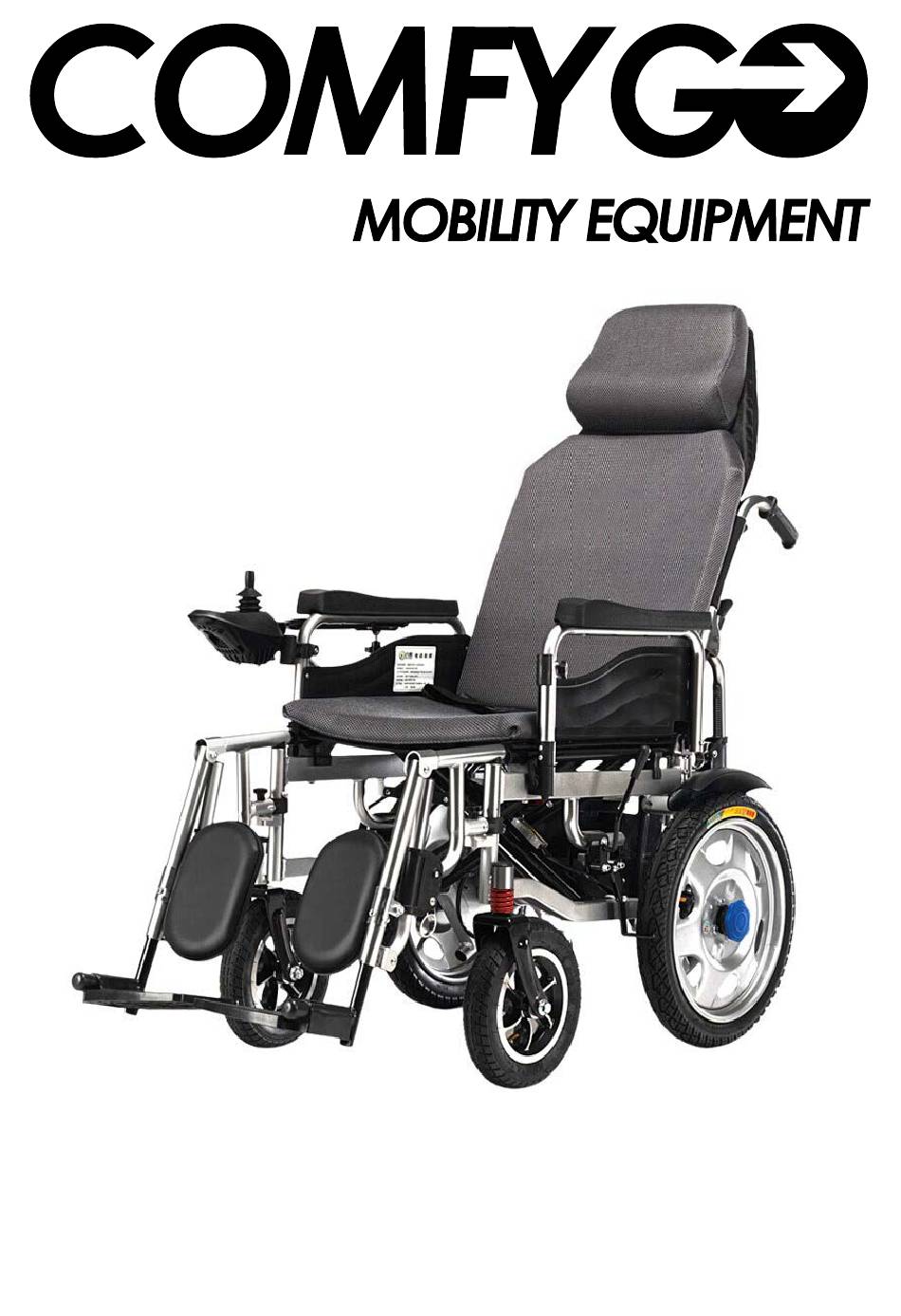

  • Page 1 BC-6011 User Manual / Warranty...
  • Page 2 Preface Please read this manual completely before operation, failure to follow the instructions may result in personal injury or traffic accident. ◎ This manual contains operations, assembly methods, and simple faults solutions ◎ Must read through this manual carefully when following symbols appear. Warning Improper operation may cause death or serious inquiry Caution...

  • Page 3: Product Introduction

    1. Product introduction 1.1 Product images 1.1.1 BC-6011 HEADREST JOYSTICK FOOTREST BATTERY FOOTREST CASTOR 10’Front wheel CLUTCH MANUAL BRAKE...
  • Page 4 Backrest folding lock Battery connector Backrest adjustment battery handle motor Backrest adjustment handle...
  • Page 5 1.2 Product performance This series of power wheelchairs were powered by battery, drive by DC motor. Users control direction and adjust speed by joystick controller. It is suitable for application of low speed, good road condition and small slope. 1.3 Performance parameters For more technical data details, please refer to attachment 2.
  • Page 6 2. Safety 2.1 Precautions for use ² Classified according to the type of protection electric shock：Internal power. ² Classified according to the type of protection against electric shock: Type B application. ² Classified according to the degree of inlet liquid protection: IPX3. ²...
  • Page 7 2.4 Precautions for uphill and downhill ² Avoid driving on following places: steep hill, tilt place, high steps, channel etc. ² Avoid driving on steep slope, the slope range should be less than 9 degrees. Please very carefully operate the controller when drive on the slope. ²...
  • Page 8 Notice u Before confirmed by our company, do not replace parts or material randomly. u Do not add weight randomly, in case to cause imbalance. u Do not use other vehicle to pull or push the wheelchair when somebody sits on the wheelchair or the wheelchair is in manual mode.
  • Page 9 3. Unfold, fold and adjustment of wheelchair 3.1-Fold and unfold of wheelchair 3.1.1-Fold wheelchair 1,Lift up the cushion strongly by hand .Take off the battery and unplug the red plug（as shown in picture1a) 2.Unscrew the screws on the headrest bracket, then pull out the headrest bracket. (picture1b) 3.
  • Page 10 Picture 1 Pull out the plastic pole from the tube...
  • Page 11 3.1.2 Unfold wheelchair Wheelchair in a semi-stretched state, turned up both side handle to hear a click sound, and check there’s no shaking. 3.2 Connect wire line Connect the battery box’s plug to controller’s plug as shown in picture2 picture 2 3.3 Adjustment of joystick Adjust the controller to perfect position by screwing the nut counterclockwise (picture3).
  • Page 12 Picture4 3.5 Adjustment of castor Adjust castor angle by unscrew the nut. As picture 5 picture5 3.6 Use of manual brake As shown in picture 6, push hard the manual brake forward to stop the rear wheel, then the wheelchair will stop moving; release the handbrake, wheelchairs will be back to normal driving status.
  • Page 13 picture7 picture 8 Warning When changing from manual mode to power mode, please confirm both side clutches are inside the grooves. Any side clutch is not fully into groove, may cause danger of rollover.

  • Page 14: Battery And Charger

    4. Battery and charger 4.1 Charger requirements The charger is used for battery charging. During power wheelchair is being charged, do not use The charger should meet following requirements 4.1.1 Charger technical data Input voltage：AC 220V Output voltage：24V/DC Output current：2A for 12 AH ,3A for20 AH, 4.1.2 The battery box’s plug is squared three-pin, liquid inlet protection class is IPX1 4.1.3 The charger should meet requirements of GB 4706.1-2005 and GB 4706.18-2005.
  • Page 15 Precautions 1.Do not stop charging until charge process is finished. Repeat using the battery in the not fully charged status will shorten the battery life, so the battery should be fully charged as much as possible. 2.When battery is fully charged, the power indicator will turn to green, do not stop charging before fully charged.
  • Page 16 6. Controller 6.1 Controller panel Battery power gauge Power on and off Horn button Speed indication Speed Decrease Speed Increase button button 6.2 Turn on power Press this button, the battery power gauge lights will turn on from left to right. Cautions It might shows mistake of ‘joystick not in middle’...
  • Page 17 6.3 Turn off power Press the power button all the LED lights are off. 6.4 Sleep mode If the joystick has no any operation for more than 20 minutes, the power turned off automatically, and the system in the sleep mode, system will be waking up from sleep mode by press power button.
  • Page 18 distance driving, the battery should be fully charged. If only the red LED light is bright, the battery power is extremely limited, need charge immediately. 6.8 Use of joystick The power wheelchair moving direction is controlled by joystick. The extent of operating joystick is also determined speed. Notice Ø...
  • Page 19 7. Maintenance and self-checking Maintenance of power wheelchair including: clean power wheelchair, check tire and battery, and charge battery, for further maintenance please contact with service center. Our maintain suggestions: the power wheelchair checked every half year, annually overhaul. 7.1Clean power wheelchair, tire, and battery maintenance 7.1.1 Clean Power wheelchair Please clean the power wheelchair regularly.
  • Page 20 Notice The controller install a diagnosing system that monitor the controller, motor, if those parts have any malfunctions is showed to the controller. For more details please kindly refer to chapter of self-checking list. 7.3 Maintenance check The following is checking list, power wheelchair was ordinal checked by followed our suggestion.

  • Page 21: Warranty

    8. Warranty 8.1 Warranty contents - Our goal is to ensure you are delighted with your purchase. - According to our warranty agreement, All new products have a limited warranty. All batteries have a six month warranty. Spare parts have a one year warranty. The limited warranty does not include: labor or device failure due to owner misuse or negligence, non-durable components and components subject to normal wear and need replacement from time to time (for example rubber materials, accessories, wheels or brakes, and plastic parts).
  • Page 22 please return them to our service center or follow your local disposal regulation. 8.2 Warranty does not cover these conditions ◎Subjective impression, no function problems. ◎Usage and aging loss（coating and plating surface, nature fade of resins, etc.). 8.3 Not applicable when following happens ◎...
  • Page 23 8.8 Warranty valid ◎The after-sales service card is valid from stamped date. ◎Normally, the warranty is one year. ◎Consumable parts （ such as: battery set cushion, tires, side board, armrest cushion etc.） are not under warranty range. Notice Ø 请 During the warranty period , the maintenance is free.
  • Page 24 www.ComfyGoMobility.com...
