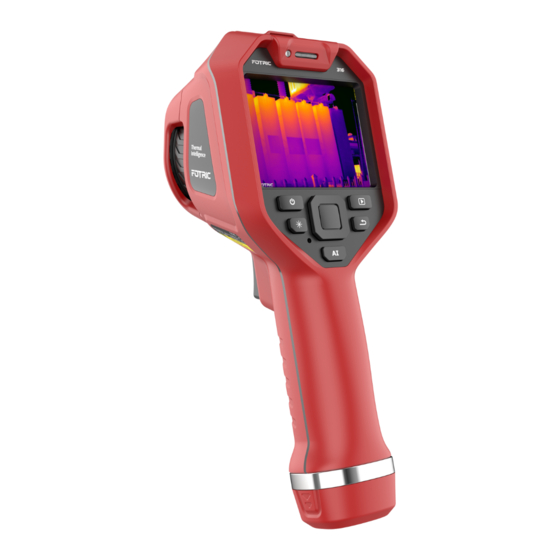

Fotric 320M Series User Manual
  1. Manuals
  2. Brands
  3. Fotric Manuals
  4. Thermal cameras
  5. 340M Series
  6. User manual

Fotric 320M Series User Manual

Hide thumbs Also See for 320M Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Fotric 320M/320F Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 320M Series and is the answer not in the manual?

Questions and answers

Related Manuals for Fotric 320M Series

Summary of Contents for Fotric 320M Series

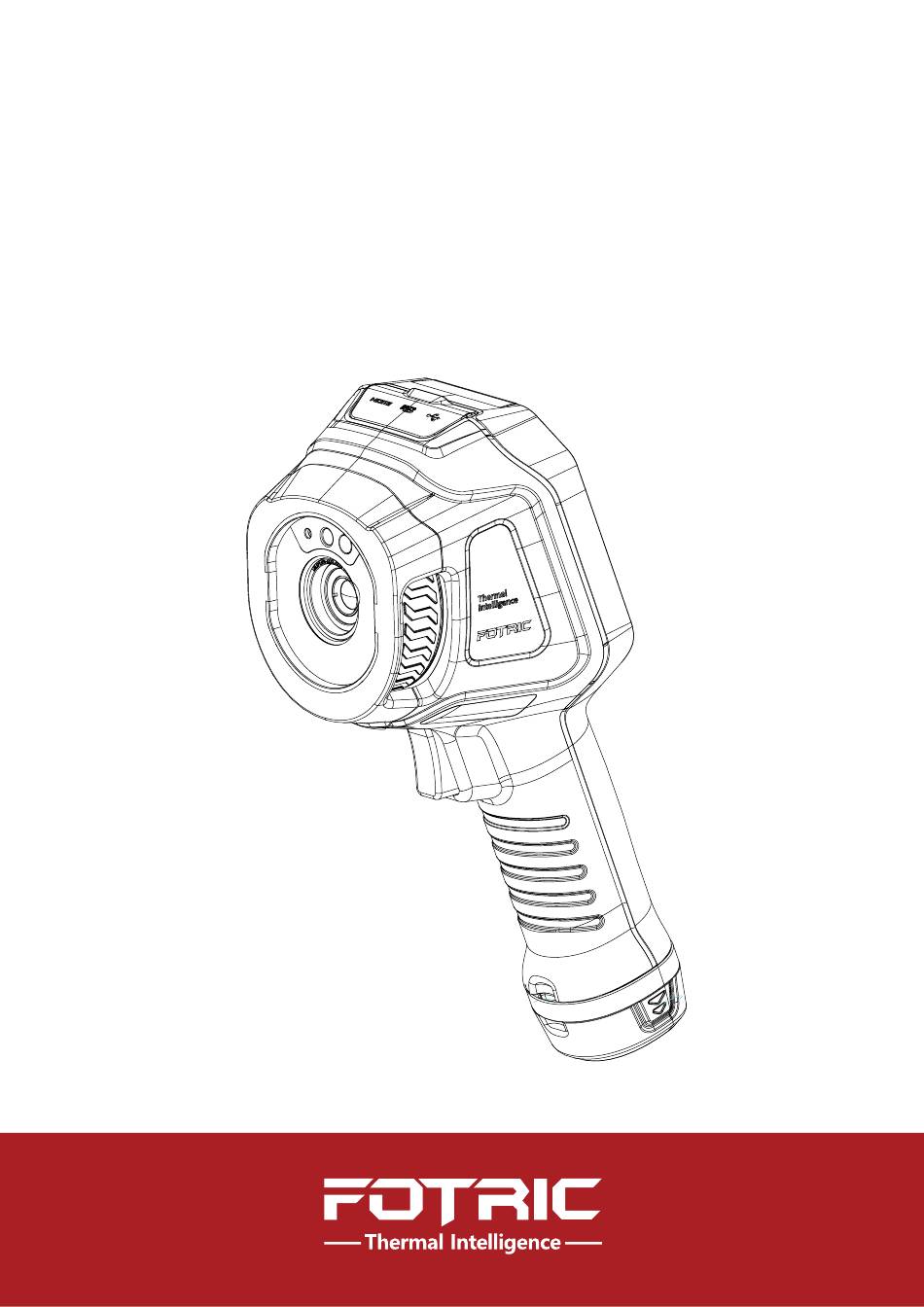

  • Page 1 User Manual Fotric 320M/320F Series...

  • Page 2: Table Of Contents

    Contents Legal Disclaimer 1.1 Legal Disclaimer ..............1 1.2 Usage Statistics .
  • Page 3 3.8 Gallery ............... . 20 3.9 NUC .
  • Page 4 7.1 Play ................98 7.2 Save .

  • Page 5: Legal Disclaimer

    If the product is proven defective in relation to materials or manufacturing after FOTRIC's inspection, it is up to the user whether it is to be repaired or replaced (refer to FOTRIC warranty policy), provided that the product must be returned to FOTRIC within 3 Months from abovementioned report date.

  • Page 6: Usage Statistics

    1.4 Quality Assurance The quality management system for the development and production of these products in FOTRIC has been certified in accordance with the ISO 9001 standard. FOTRIC is committed to a policy of continuous development, as we reserve the right to modify or upgrade any product without prior notice.
  • Page 7 used in controlled countries (such as North Korea, Iran, Syria, Cuba, Sudan, Russia, etc.). Please do not bring this product into or used in controlled countries. Any loss or liability arising from the above actions will be borne by the purchaser.

  • Page 8: Safety Information

    Safety Information This product complies with the restrictions for Class A digital equipment in Chapter 15 of the FCC Rules. These restrictions are designed to prevent harmful interference to civilian installations. If not installed and used in strict accordance with the instructions , this device will generate, use and emit radio frequency energy, which may cause harmful interference to radio communications.
  • Page 9 ! Caution > Please do not open the thermal imager's shell or modify it without permission. Repair services can only be performed by authorized FOTRIC personnel. ! Notice> After the thermal imager is turned on, it may take about 10~15 minutes to warm up before accurate measurement.

  • Page 10: Product Configuration

    Product Configuration 1.1 Standard Configuration FOTRIC 320 series Infrared Thermal Imager (included lens) • A handheld thermal camera(Lens included) ， • 2 pieces of batteries • One set of USB-Type C cable • One set of Micro-HDMI to HDMI cable •...

  • Page 11: Hardware

    Hardware 2.1 Front View...

  • Page 12: Rear View

    2.2 Rear View...

  • Page 13: Top View

    2.3 Top View...

  • Page 14: Right View

    2.4 Right View...

  • Page 15: Operation Guide

    Operation guide 3.1 battery 3.1.1 battery charging 1. Use a battery charging dock to charge the battery by connecting to a USB Type-C cable and power adaptor. 2. Or charge the battery from the USB interface of the thermal camera when it is plugged in.
  • Page 16 battery-warning window will pop up; If the operation continues, the battery- warning window will pop up again when the battery level is below 10%. 3. If the thermal camera’s battery level is below 20% during use, the battery- warning window will pop up; if plugged in the power charging adaptor, the battery warning window will disappear.

  • Page 17: Turning On And Off The Thermal Camera

    is MTP mode, for data transfer and video streaming. Users can change settings mode to charging mode, which supports charging and video streaming at the same time. 3.1.5 Screen-off settings 1 ） When the screen is on, it supports manual screen-off, Auto screen-off with timer, and Never screen-off option.

  • Page 18: Adjusting The Infrared Lens Manually

    （ for about 5 seconds), and select “Power-off” or “Reboot” from the pop-up window. 3.3 Adjusting the Infrared Lens Manually Operation Figure • For far focus, rotate the focus ring clockwise (align the LCD facing towards you). • For near focus, rotate the focus ring counterclockwise (align the LCD facing towards you).

  • Page 19: Copying The Tf Card's Data To Computer Via Tf Card Reader

    3.4 Copying the TF card’s data to computer Via TF card reader. Operation procedures After capturing photos and videos, the files are saved in the TF card. The image and video files can be copied to a computer via TF card and TF card reader.

  • Page 20: The Laser Ranger As A Pointer

    3. Turn on the thermal imager 4. In the file explorer, open the ‘/Gallery’ file of the camera disk, and copy desired files to the computer 5. Import the data to the PC software for further analysis and reporting 3.6 The Laser Ranger as a pointer The laser ranger can serve as a laser pointer.

  • Page 21: Ai Programmable Key

    3.7 AI programmable key The AI programmable key can call upon different functions according to the user’s need. It is available on the main interface, image freeze interface, and gallery’s image analysis interface. Long press on the ‘ A I’ key (>2s) to enter the AI programmable interface, to link different functions onto the button.
  • Page 22 • Switch temperature measurement range • Palette preview • Switch scale mode • Switch image mode • Available programmable key functions on image freeze interface • Favorite, • Voice annotation, • Text annotation, • Tag, • QR tag. • Available AI programmable key functions on Gallery’s image analysis interface...
  • Page 23 • Favorite, • Voice annotation, • Text annotation, • Tag, • QR tag, • Switch palette, • Switch scale mode, • Switch image mode. Note: On the video analyzing interface, the ‘AI’ programmable key is not available...

  • Page 24: Gallery

    3.8 Gallery Press the ‘Gallery’ button ‘’ to get access to the gallery, like the image shown below. For specific instructions, please refer to chapter 8 on the menu...

  • Page 25: Nuc

    3.9 NUC When it shows “calibration…” on the top of the screen, ‘Non-Uniform-Calibration’ (NUC) is on proceeding. NUC is proceeded automatically, for example, when the device is starting, changing measurement range, and every few minutes. Manually operate NUC Users can manually operate NUC, by long-press the ‘gallery’ button for more than 2 seconds...

  • Page 26: Main Interface

    Main interface 4.1 Overview 1. Status bar On the right top corner is the status bar. It contains status information about: battery, TF card low storage room alarm, Bluetooth, Wi-Fi, Wi-Fi hotspot, geographical location, and laser-on indicator. Introduction: • Battery icon: indication of battery’s power level and charging status •...
  • Page 27 • Bluetooth icon: when Bluetooth is activated and connected, the icon will be displayed • Wi-Fi icon: When the Wi-Fi is on and properly connected, the icon will be displayed. • Geographical location icon: When the GPS is turned on, the icon will be displayed.

  • Page 28: Swipe-Down Menu

    On the bottom of the screen is the system menu button. For specific instructions, please refer to section 4.4 7. Measurement parameter On the bottom-right corner of the screen are the measurement parameters: emissivity, reflected temperature, environment temperature, humidity, and measuring distance.

  • Page 29: Digital Zoom Of Real-Time Imaging

    Image overlay information includes measurement result table, temperature, measurement parameters, ROI settings, and system menu button. Overlay information can be Hide by the "Hide" function in the swipe-down menu. When the ‘Hide’ function is activated, users can not enter the main menu, but can still get access to functions like gallery browsing, focusing, and taking images.

  • Page 30: System Menu

    Use of digital zoom: • Capture image ： zoomed photo will serve as cover view, but all the raw data in the original image will be kept. • Freeze image ： Not support for digital zoom • Gallery image: Support for digital zoom 1.
  • Page 31 Click System Menu button to set: Temperature scale mode, Measurement parameters, Image mode, ROI, Palette, Settings. Temperature scale mode: auto-scale, manual scale, touch scale. Measurement parameters: emissivity, reflection temperature, ambient temperature, relative humidity, temperature measurement distance, IR window compensation. Image mode: thermal image, digital camera image, picture-in-picture, thermal&...

  • Page 32: Temperature Scale Mode

    4.5 Temperature Scale Mode The thermal imager supports auto scale, manual scale and touch scale modes. 4.5.1 Auto Scale Mode In Auto Scale Mode, the upper and lower temperature scale limits are automatically adjusted to achieve the best image color display effect according to the histogram of overall temperature distribution.
  • Page 33 4.5.2.1 Max / Min Mode In Maximum/Minimum mode, the upper and lower limits of the temperature scale can be adjusted. 1. After selecting the MAX/MIN manual temperature scale mode, the upper and lower limits of the temperature scale can be selected. And the grey icon represents the selected state.
  • Page 34 be adjusted by using the slider or pressing the up and down direction keys. As shown in the figure below, the upper and lower limits of the temperature scale can be adjusted at the same time by using the slider: As shown in the figure below, the lower limit of the temperature scale can be adjusted separately by using the slider As shown in the figure below, the upper limit of the temperature scale can be...
  • Page 35 As shown in the figure below, both upper and lower limits of the temperature scale are locked and cannot be adjusted: Users can adjust the upper or lower limit by pressing the left and right direction keys. The selected limit is displayed in gray. As shown in the image below, the upper limit is selected.
  • Page 36 direction key As shown in the image below, the lower limit is selected. And the lower limit of the temperature scale can be adjusted by up and down direction key As shown in the image below, the upper and lower limits are selected. And the range of temperature scale can be adjusted by up and down direction key...
  • Page 37 A short press on the direction key will increment the span by 0.1 degree. When held on, the increment will gradually increase 4.5.2.2 Temperature span mode In temperature span mode, the temperature scale span (difference between upper and lower limits) value can be adjusted independently. The upper and lower limits of the temperature scale can only be adjusted at the same time, not separately.

  • Page 38: Measurement Parameter Settings

    • Scroll or press the up/down direction key to simultaneously adjust temperature upper and lower limit • Temperature scale span can be adjusted by pressing the left/right direction 4.5.1 Touch scale mode In Touch scale mode, the upper and lower temperature scale limits can be adjusted automatically by touching the screen based on temperature range of the touch area (about 10 x 10 pixels in size).
  • Page 39 4.6.1 Setting Emissivity Emissivity is the rate of the measured object’s outward radiation energy to a black body’s, at the same temperature and wavelength. The value is between 0 and 1.0 ! Note: Emissivity is one of the most important parameters for accurate temperature measurement...
  • Page 40 The emissivity settings of the FOTRIC thermal imager have 2 options: Fullscreen emissivity correction and partial emissivity correction. To set full-screen emissivity, please perform the following procedures: 1. Click the emissivity set button. 2. Slide up and down to set the emissivity value (0.01 – 1.0), or choose the material type.
  • Page 41 To set the reflection temperature, please follow the following procedures: 1. Measure the actual temperature of the reflection source near the target with a thermal imager. 2. Click the reflected temperature set button. 3. Slide up and down to set the reflection temperature value as the result measured by the thermal imager.
  • Page 42 !Note: The ambient temperature value is set by default in the system. This parameter should be set only if the ambient temperature is higher than that of the measured object. 4.6.4 Setting Relative humidity Relative humidity set is used to compensate for the thermal radiation by atmosphere moisture between the measured object and the Lens of the thermal imager.
  • Page 43 4.6.5 Setting Measurement Distance Measurement distance is the distance between the measured object and the lens of the thermal imager. The value is between 0.5 ~ 100 meters. This parameter is used to compensate for the following two elements: • the thermal radiation, which the atmosphere air absorb between the object and the thermal imager lens.
  • Page 44 To set the IR window compensation, please perform the following procedures: 1. Measure the actual transmittance of the external lens or external infrared window (usually tested by the FOTRIC after-sales service department or by a qualified partner licensed, with standard measurement master for precise test).

  • Page 45: Image Mode

    Emissivity 0.95 Reflected temperature 20°C Ambient temperature 20°C Relative humidity Distance from target 1.0 m IR window compensation 4.7 Image mode Image modes includes thermal image, visible light image, PIP and image fusion mode. Click the icon, the submenu for image mode will pop up 4.7.1 Thermal image mode Displays infrared thermal image.
  • Page 46 In the setting, users can choose to display max, min, and average temperature. The default is displaying both max and min. • After ROIs are added, the ‘measurement result’ bar will no longer display the temperature of the entire screen ! Note: under thermal image mode, please make sure the image is properly focused.
  • Page 47 4.7.3 Picture in picture (PIP) Displays Infrared thermal image superimposed on the visual light digital image. By default, the thermal display area is 1/4 of the entire screen. Users can adjust the thermal image areas and position by touch-screen, as the below following images:...
  • Page 48 1. Resize the PIP: Click and drag on the corner of the thermal image 2. Reposition: Click and drag on the center of the thermal image 3. When specific ROI is selected, ’Resize’ and ‘reposition’ mode can alternate by pressing the ‘OK’ button. Pressing the ‘Return’ button can exit editing mode. 4.
  • Page 49 imager is properly focused. If the infrared thermal image is not in focus, the temperature measurement may not be accurate, and the visual light image will not match the thermal image. 4.7.4 Image Fusion Mode Thermal & Visual light Image Fusion Mode: Fusion of thermal image and visual light digital camera image to enhance the display of image visible contrasts.

  • Page 50: Roi Measurement Tools

    • Adjusting transparency 1. Transparency ranges from 0% to 100%, minimal increment being 1% 2. Press the ‘OK’ button or touch screen on the menu interface, to hide the menu and display the scrolling wheel; while the transparency percentage is still visible on the screen.Press the ‘OK’...
  • Page 51 Click to add a movable measurement point. Click to add a movable rectangle measurement area. Click to set the temperature rise between the ROI and a reference temperature value, or the temperature difference between the temperature measurement ROIs. Click to clear all ROIs. Display settings button for ROIs.
  • Page 52 2. On-button operation 1. Press the ‘OK’ button and display the main menu 2. Press the direction keys to select the ‘ ’ and display the main menu 3. Select the desired ROI form by pressing the left/right direction key. Press ‘OK’ to add it to the center of the screen 4.8.2 ROI Selection/Cancel Selection ROI can be selected through touch-screen or on-button operation.
  • Page 53 2 ） Press on direction keys to select ROIs 3 ） Press on the ‘back’ key consecutively to exit menus when the selection is made. 4 ） Press on the ‘Back’ key to undo selection of ROI 4.8.3 Adjusting ROI It is possible to move, resize ROI and adjust their emissivity if needed Click to select ROI.
  • Page 54 1. Touch-screen operation 1 ） Following the instruction of 4.8.1, select the desired ROI 2 ） Drag the ROI with your finger and move it to the position. For points, you can drag them directly; For line/rectangle/circle, press and drag on the central point. 2.
  • Page 55 3 ） Press on Up and down direction keys, to change the height of ROI 4 ） Long-press on direction keys, to change continuously. 4.8.4 Deleting ROI There are two ways of delete ROI: delete the selected one, and clear all Delete selected ROI Users can delete ROI by touch-screen and On-panel operation.
  • Page 56 3 ） Click the icon , and the selected ROI(ex. Ci1) will be deleted 4 ） The selected ROI has been deleted successfully. 2. On-panel operation 1 ） Following the instruction of 4.8.1, select the ROI you want to delete (ex. Ci1) 2 ）...
  • Page 57 4 ） The selected ROI has been deleted. ROI Clear all ROIs The ‘Clear all ROIs’ feature is available through touch-screen and press-button. To clear all the ROIs, please follow the procedures as below: 1. Touch-screen operation 1. Click the system menu button 2.
  • Page 58 3 ） All ROIs have been cleared successfully. 4.8.5 Setting ROI Partial Emissivity ROI Partial Emissivity Set button For the emissivity of material that is not included in the chart, you may find it in the emissivity table at the end of this manual.
  • Page 59 The ‘Partial emissivity setting’ feature is available through touch-screen and press-button. If you need to set specific emissivity for different ROIs, please follow the procedures as below: 1. touch-screen operation 1 ） Click on the ROI you want to set emissivity on 2 ）...
  • Page 60 On middle, is the emissivity customizing page, the value ranging from 0.01 to 1.0; On the right side is the emissivity material table. 3 ） Select the left side of the interface using direction key to turn it on 4 ） Use left/right direction keys to get to the middle lane of the interface, then using up/down direction keys to select the right emissivity.
  • Page 61 button. If you need to set specific displaying content, please follow the procedures as below: 1.touch-screen operation 1 ） Click ‘ ’ on the bottom of the screen, to display the emissivity display icon ‘ ’. 2 ） Click to set features display or hide. After the display setting, click on other areas of the screen to complete the setting.
  • Page 62 1. Calculating temperature difference between ROIs. If the reference target is set to: “minimum of Ar1”, then all the temperature display values on the screen will be the actual temperature minus the minimum temperature on Ar1. 2. Temp-rise: Calculating temperature difference between all ROIs and a fixed value.
  • Page 63 The ‘Temperature difference’ feature is available through touch-screen and press- button. If you need to activate ‘Temperature difference’, please perform the following procedures: 1. Touch-screen operation 1 ） Click on the system menu button , then the temperature rise ‘ ’...

  • Page 64: Setting Sound Alarm

    3 ） To set reference temperature, use left/right direction keys to get to the right lane of the interface, then use up/down direction keys to select the right target temperature. 4 ） After ROI temp rise set, press on the ‘return’ button to complete the setting. 4.9 Setting Sound Alarm This is the icon for sound alarm .
  • Page 65 Lowest temperature: alarm will trigger for the minimum temperature of ROI ; The ‘sound alarm’ feature is available through touch-screen and press-button. If you need to set up sound alarms, please follow the procedures as below: touch-screen operation 1 ） Select the alarm area; (different alarms can be set for different ROIs). 2 ）...

  • Page 66: Palette

    6 ） Click on the other areas of the screen to complete the sound alarms setting; 2. On-panel operation 1 ） Select the alarm area; (different alarms can be set for different ROIs). 2 ） Press the ‘OK button to select the sound alarm button. Open the sound alarm interface: left lane displays options: Turn off/high-temperature alarm/low- temperature alarm;...
  • Page 67 Iron Palette. Grey Palette. Rainbow Palette. Rain Palette. Medical palette GreyRed palette color alarm (isotherm): above temperature alarm, for quickly finding the high temperature abnormal area of target object. color alarm (isotherm): below temperature alarm, for quickly finding the low-temperature abnormal area of the target object. color alarm (isotherm) interval temperature alarm, for quickly finding the temperature abnormal area of the target object.

  • Page 68: Color Alarm(Isotherms)

    Click to invert the color for all palettes. 4.11 Color alarm(isotherms) Color Alarms (Isotherms) are used for rapid screening of temperature anomalies. This thermal imager supports three kinds of isotherms: above temperature, below temperature, and interval (in-between) temperatures. color alarm (isotherm): above temperature alarm, for quickly finding the high-temperature abnormal area of the target object.
  • Page 69 color alarm (isotherm) below temperature alarm, for quickly finding the low- temperature abnormal area of the target object. color alarm (isotherm) interval temperature alarm, for quickly finding the temperature abnormal area of the target object. 4.11.1 High-temperature color alarm Choose for ‘above-temperature’...
  • Page 70 4.11.2 Low-temperature alarm Choose for ‘below-temperature’ color alarm 1. The temperature areas that exceed a certain threshold are displayed with blue color, emphasizing regions that are colder than the set threshold. Under this palette, temperature scale change mode is not available. 2.
  • Page 71 4.11.3 Interval-temperature alarm Choose “ ” for ‘interval-temperature’ color alarm 1. The temperature areas that exceed a certain threshold are displayed with yellow color, emphasizing regions that are between set thresholds. Under this palette, temperature scale change mode is not available. 2.
  • Page 72 4.11.4 System settings ： The system settings menu includes the following options: • Capture Mode • Connection • Temperature Measurement Range • Storage & Save Options • Device Set...

  • Page 73: System Settings

    SYSTEM SETTINGS 5.1 Capture mode The device can be set to take single frame picture, record IRS radiometric /MP4 videos or time-lapse pictures. 5.2 Video recording...

  • Page 74: Time-Lapse Mode

    1. In video recording mode support FPS(1~16Hz) full-radiometric thermal video recording. 2. Pressing the trigger in video recording mode will start recording, pressing it again will enter the image freeze interface. 3. Support IRS and MP4 files. IRS is the full-radiometric thermal video for temperature analysis.

  • Page 75: Connection

    been taken. The maximum set number being 1000; or unlimited. 3. In time-lapse mode, the camera will keep taking photos until the trigger is pressed again, or the previously set number of photos has been met !Note: During time-lapse shooting, image mode changing is not available; and only the thermal image mode is available.
  • Page 76 1. Click on 【 ... 】 on the screen or the confirm button on the operation panel. 2. Click on “Settings” 3. Click on “Connection”- “WLAN” 4. Turn on “WLAN”. 5. Choose an available Wi-Fi network. Enter password if required. 5.4.2 Hotspot 1.
  • Page 77 5.4.3 Bluetooth device pairing The thermal camera can be paired with Bluetooth devices, such as a Bluetooth headset, which can be used for voice annotation and sound alarms. When paired with Bluetooth, the thermal camera’s Mic and Speaker will be deactivated.

  • Page 78: Setting Temperature Range

    connect the computer to a hotspot, and then turn on FTP Transfer. 2. When successfully connected, an address will be generated: ftp://IP:+port. Users can access the address from a web browser, file explorer, or FTP tools to transfer data. 3. Users can choose to turn on/off anonymous access. If it’s turned on, the client can access the FTP service and file system without extra validation.

  • Page 79: Storage & Save Options

    3. The ‘Intelligent range’ option will automatically choose the appropriate range based on the measured object’s temperature. ! Note: Temp range is one of the functions that could be accessed by the AI programmable button. 5.6 Storage & Save options •...

  • Page 80: Device Set

    longer enter visible light /PIP /Image Fusion mode, neither can it capture a digital image. • Delete all saved files: It will pop up prompt asking whether to permanently delete all the files saved in the storage card. Users can either confirm or cancel this action.
  • Page 81 Under ‘Device set’, there are the following Options ： • language & date & region • Display settings • Location • LED lamp as flash • Screen off • Manual mode • Volume • Reset • USB connect mode • About 5.7.1 Language &...
  • Page 82 • Language&Date&Region: this submenu contains settings for language, temperature unit, distance unit, date, time, and time zone • Languages include English, traditional Chinese, Spanish, Korean. More will be made available in the future. Temperature units: ℃、 K 、 °F...
  • Page 83 Distance unit: meters 、 feet Date time...
  • Page 84 time zone Date format 5.7.2 TWB...
  • Page 85 TWB mode: TWB is named Thermal White Balance. It balances color distribution on the entire temperature span of the image. When the TWB function is turned on, the overall image color display will be balanced non-linearly according to the histogram of overall temperature. It makes the extreme hot/cold area’s color display weaken, while other areas are enhanced with more gradients.
  • Page 86 Slide to change the brightness of the screen The information image overlay contains are all displayed in the images above...
  • Page 87 5.7.4 Geographic Location Turning GPS on/off: Turn GPS on, to save geographic information in the thermal images. 5.7.5 LED lamp as flash The LED lamp on the thermal imager can serve as a flash for the digital camera. When this function is turned on, the thermal imager will activate an LED flash lamp when capturing images.
  • Page 88 5.7.6 Screen off time • This function determines how long the screen stays on when there is no operation. Options are ： 5 mins, 10 mins, 30 mins, and never. • When the screen is off, pressing the power button can wake it. The screen can be turned off manually by pressing the power button.
  • Page 89 • It offers two alternatives for manual scale mode • Max/min: under this mode, users can adjust the max and min temperature of the manual scale range, separately or together. • Temperature span: the max and min temperature of the manual scale range can only be adjusted simultaneously, and the smallest span is 2 ℃...
  • Page 90 As the image above indicates 5.7.10 USB Connect Mode • USB Connect Mode: USB MTP and USB Charger modes • USB MTP: The USB interface can be used for data transfer between the camera’s SD card and computer; Or be used for thermal video streaming. Power charging also works in this mode.
  • Page 91 The ‘ A bout’ section contains information as below: Camera model type, Camera serial number, Camera software version, Camera system version, Camera sensor resolution & info, camera Lens type, Battery Level, Remaining SD Card storage Capacity, Camera Status info( IP Address, MAC, Bluetooth), and Systems update function.

  • Page 92: Image Freeze Interface

    Image freeze interface On the Image Freeze Interface, the image can be edited or analyzed before save. Press the capture button again to save the image. Press "Back" twice to exit the Image Freeze Interface without saving the image. The Image Freeze Interface function in single frame capture of thermal, PIP , and image fusion modes.

  • Page 93: Favorite

    Favorite button. The favorite files can be screened by the Favorite button in the gallery; Temperature scale set button. For details, see 4.5 Temperature Scale Mode. ROI measurement tool. For details, see 4.8 ROI Measurement Tool. Voice annotation. Text annotation. Tag.

  • Page 94: Voice Annotation

    1. On the and a favorite icon will be displayed on the upper right corner of the image. Click it again will cancel the ‘favorite’ status and icon 2. In the gallery, you can click on the favorite button to screen all the favorite image files.

  • Page 95: Text Annotation

    6.3 Text annotation Click on to enter text annotation Text annotation can be added to the thermal image file by the virtual keyboard on the screen. Close...
  • Page 96 Save 6.3.1 Keyboard input 1. Click on the text input block, and a virtual keyboard will pop up. 2. After typing the text contents in, press the ‘return’ button to exit the virtual keyboard 3. Click the save button to save the text information in the thermal image. And a text annotation icon will appear on the top-right corner of the image freeze interface...

  • Page 97: Tag

    6.4 Tag Click to add a tag In the image freeze interface, Tag information can be inputted by QR code scanning and virtual keyboard Close QR code scanning Save 6.4.1 Input by the virtual keyboard 1. Click on text input block, and a virtual keyboard will appear...
  • Page 98 2. After typing the text contents in, press the ‘return’ button to exit the virtual keyboard and save. 3. A tag icon will appear on the top-right corner of the screen 6.4.2 QR code scanning 1. Click to display the QR scan interface and aim towards the desired QR code...
  • Page 99 2. After successfully scanned, the text content from the QR code will appear in the text input block 3. Click save and the tag icon will appear on the top-right corner of the image freeze interface...
  • Page 100 Video freeze interface Users can preview the radiometric image before saving it. On the freeze interface, videos can be analyzed. Pressing the trigger button again to save the video. Pressing the ‘back’ button twice on the video freeze interface will exit it without saving the video.
  • Page 101 Play button Temperature scale setting; See 4.5 of this manual ROI measurement tools, see 4.8 of this manual Voice annotation, see 6.2 of this manual Text annotation, see 6.3 of this manual Save button...

  • Page 102: Play

    7.1 Play Videos can be played in freeze interface, or from Gallery. Click either on the menu or on the center of the screen to play/pause/resume. 7.2 Save 1. Click on the menu to save the radiometric video and exit the video freeze interface.

  • Page 103: Gallery

    Gallery The images and videos are saved in the SD memory card, which can be viewed in the gallery. Click the Gallery button to open the gallery. Image files are grouped by date, as shown in the figure below. The images can be switched by clicking on the direction keys or by touch screen and be selected to analyze or display.
  • Page 104 View the time-lapse images （ when time-lapse images are selected ） Delete The gallery contains flies of the thermal image, digital image, IRS radiometric video, MP4 video, and time-lapse images. Time-lapse images portray the consecutively taken images as a group. When selecting the time-lapse group, click on it again to enter the group menu, which displays all the taken images.

  • Page 105: Favorite Filter

    8.1 Favorite Filter Click on the to filter all the “Favorite” file Click it again to undo the filter. For more information, see section 6.1 of this manual 8.2 Tags filter Click to enter the Tags filter interface...

  • Page 106: Open Image And Video Files

    Click on the desired tag contents, then click ‘confirm’ to filter all the files that contain the tag. Click the icon again to undo the filtering. For more information, see section 6.4 of this manual 8.3 Open image and video files Thermal images can be analyzed after save, such as measurement parameters editing and saving.

  • Page 107: Thermal Files Analysis

    8.4 Thermal files analysis 8.4.1 Thermal image analysis Thermal images can be reviewed and analyzed. Click to display the menu Temperature scale mode; see section 4.5...
  • Page 108 ROI measurement tool; see section 4.8 Image mode, can switch to thermal image/PIP/image fusion Favorite, see section 6.1 Save More Measurement parameters. see section 4.6 Palette, see section 4.10 Voice annotation, see section 6.2 Text annotation, see section 6.3 Tags, see section 6.4 Detailed info of the file...
  • Page 109 8.4.2 Thermal videos MP4 videos only support the ‘Play’ function. IRS radiometric videos are not only playable but also analyzable, as shown below: Play Temperature scale mode; see section 4.5 ROI measurement tools; see section 4.8 Measurement parameters; see section 4.6 Palette;...

  • Page 110: Deleting Image Or Video File

    8.5 Deleting image or video file 1. Open the gallery by pressing the gallery button. 2. All the files are displayed in the gallery, grouped by captured date. 3. Select an image, click the ‘Delete’ button, or press the ‘OK’ button to display the ‘Delete’...

  • Page 111: Deleting Multiple Files

    4. Delete imaging files by clicking on ‘Confirm’. 8.6 Deleting multiple files 1. Long-press on one of the files to enter multi-selection mode; 2. Or, click on a certain date to select all the files on that date 3. Click on the selection box on top of the screen to select all files in the gallery 4.

  • Page 112: Thermal Imager Maintenance

    Thermal imager maintenance 9.1 Cleaning casing/ wires and other components 9.1.1 Cleaning fluid Choose from the following options 1. Tepid water 2. Mild cleaning fluid 9.1.2 Tool A piece of soft cloth 9.1.3 Cleaning steps Please follow the instructions below 1.

  • Page 113: Cleaning Uncooled Infrared Focal-Plane Detector

    2. Under certain circumstances, uncooled infrared focal plane detector surface must be cleaned by mechanical method, which must be performed by the FOTRIC after-sales department, or FOTRIC-authorized collaborators Cleaning procedures: Please follow the cleaning steps below...

  • Page 114: Lithium Battery Maintenance

    3. If the product is not going to be used for a long time, please take out the battery to prevent possible leakage from the battery damaging the product. 4. Please only use the FOTRIC-authorized power adaptor and charger to charge the batteries.

  • Page 115: Vocabulary

    Vocabulary Absolute zero Absolute zero refers to the temperature of -273.15°C (0 Kelvin = -459.69°F). Absolute zero is an ideal state, in which all material’s atomic movement completely stopped. At this temperature, objects have no thermal energy. Kelvin [K] Kelvin is a general temperature unit; an Object of 0 K temperature reaches absolute zero (-273.15°C).
  • Page 116 more energy than objects with a lower temperature. Infrared radiation an object absorbs is usually transformed into thermal energy of its own and gets re- emitted. Therefore, an object’s emissivity is linked to its absorptivity. Radiation Any object with a temperature higher than absolute zero is continuously radiating heat in the form of an electromagnetic wave.
  • Page 117 A colored body radiator refers to materials whose emissivity changes based on wavelength and temperature difference. An object could have a few different emissivities. Most metals are colored body radiators. (Ex: Aluminum’s emissivity rises when heated) Thermal Imager Thermal imager refers to devices that can detect radiations of infrared-band wavelength and convert the invisible infrared radiation into visible pictures.
  • Page 118 lens can measure the temperature distribution of a larger field, and a telephoto lens can observe finer detail in distance. Germanium, silicon, and zinc selenide are good materials for making camera lenses because they have high infrared transmittance. Field of View (FOV) Field of view refers to the vertical and horizontal angle objects project themselves in the thermal imager MFOV...
  • Page 119 It refers to how close the measured result is to the reference. Ex: if the actual temperature of an object surface is 100 ℃ , and the accuracy is ±2 ℃ , then the measured temperature would be 98 ℃ —102 ℃ Verification Verification is a process, which compares the measurement result and the object’s standard value.
  • Page 120 relatively low emissivity, and there are heat sources nearby, it’s a good idea to turn on RTC. Condensation It refers to the process of gas turning liquid. When an object’s surface temperature is lower than the ambient temperature, the moisture in the air will condense into water droplets on the surface.
  • Page 121 It reflects an object’s ability to convey heat by convection. Definition: when the temperature difference between fluid and solid surface is 1 k, the amount of energy been conveyed by convection of 1 unit area in a second Kirchhoff’s radiation law Kirchhoff’s radiation law describes the relationship between an object’s emissivity and absorptivity of a certain wavelength: at thermal equilibrium, an object’s absorptivity of thermal radiation is equal to its emissivity at the same...
  • Page 122 Emissivity Table （For reference only） Temperature (℃） Emissivity (ε） Material Name Surface Condition Non-oxidized 0.20 Aluminum Oxidized 0.55 Polished brown 0.40 Brass Unpolished 0.22 Oxidized 0.61 Copper Severely oxidized 0.78 Oxidized 0.74 Iron Rusty 0.65 Oxidized 0.64 Cast iron Non-oxidized 0.21 Roughened 0.94...
  • Page 123 Innovation Excellence Integrity Company Disclaimer Equipment described herein may require EU, US and UNSC authorization for export purposes. Imagery for illustration purposes only. Specifications are subject to change without notice. FOTRIC INC. © 2021 All Rights reserved. FOTRIC INC.
