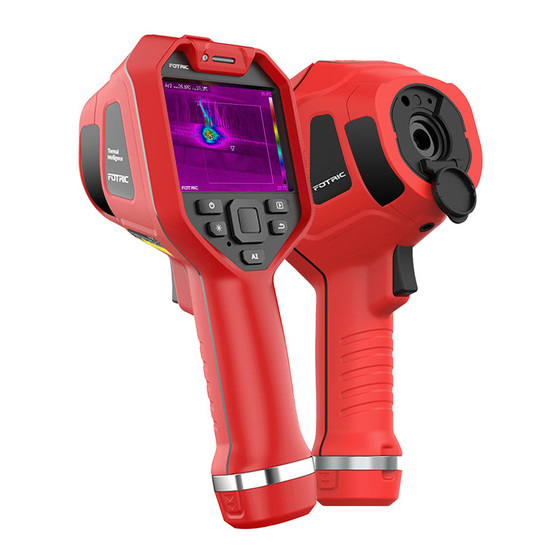

- Page 1 Fotric 320M/320F Series...
-
Page 2: Table Of Contents
Contents Legal Disclaimer ......1 Safety Information ..... . 5 Thermal Imager . -
Page 3: 1.1 Legal Disclaimer
FOTRIC sells to the original purchaser are covered by the specific supplier's warranty terms (if any) and FOTRIC is not liable for those products. This warranty is provided to the original purchaser and is not transferable. This warranty does not apply to any product that has been damaged by misuse, neglect, accident, or abnormal operating conditions. - Page 4 Legal Disclaimer mentioned report date. FOTRIC has no obligation or liability for any defects other than those mentioned above. This product is exempt from any other warranties, expressed or implied. FOTRIC hereby disclaims any implied warranties of merchantability and applicability for a particular purpose.
- Page 5 1.4 Quality Assurance The quality management system for the development and production of these products in FOTRIC has been certified in accordance with the ISO 9001 standard. FOTRIC is committed to a policy of continuous development, as we reserve the right to modify or upgrade any product without prior notice.
- Page 6 Legal Disclaimer 1.5 Export Control Thermal imaging products are listed as export-controlled products by U.S. Department of Commerce, United Nations Security Council (UNSC), and European Union (EU). This product contains a focal plane array and cannot be used in controlled countries (such as North Korea, Iran, Syria, Cuba, Sudan, Russia, etc.).
-
Page 7: Safety Information
Safety Information This product complies with the restrictions for Class A digital equipment in Chapter 15 of the FCC Rules. These restrictions are designed to prevent harmful interference to civilian installations. If not installed and used in strict accordance with the instructions , this device will generate, use and emit radio frequency energy, which may cause harmful interference to radio communications. - Page 8 It can also cause damage to the detector in the camera which is not covered in Fotric's warranty. !Caution> Original packing box must be used during transportation.Please do not strongly hit the thermal imager during use and transportation.
- Page 9 ! Caution > Please do not open the thermal imager' s shell or modify it without permission. Repair services can only be performed by authorized FOTRIC personnel. ! Notice> After the thermal imager is turned on, it may take about 10~15 minutes to warm up before accurate measurement.
-
Page 10: Thermal Imager
Thermal Imager Front View... - Page 11 Thermal Imager Rear View...
- Page 12 Thermal Imager Top View...
- Page 13 Thermal Imager Side View * Available for 320M series...
-
Page 14: Interface Introduction
Interface Main Interface ① Status Bar: Display Battery, Wifi, Bluetooth, GPS, TF card low storage warning, Laser warning etc. ② Measurement Result: Display overview and ROI Max/ Min temp, Emissivity etc. ③ Palette and Temperature scale: Display pallet and Temperature scale range. ④... - Page 15 Interface ⑤ Thermal Imaging Display: Display thermal image, positions of Overview temperature & ROI temperature MAX/ MIN, etc. ⑥ System Menu Button: Press to enter Temperature scale mode, Parameters, Image mode, ROI measurement tools, Palette and Settings. ⑦ Parameters: Display emissivity, Reflected temp, Environment temp, Humidity, and Distance.
- Page 16 Interface System Menu ① Temperature scale: Auto scale, Manual scale, Touch scale settings. ② Parameters：Emissivity, reflected temperature, ambient temperature, humidity, target distance and IR window compensation settings. ③ Image mode：Thermal image, Visible light digital image, Picture in Picture, T-DEF image fusion mode settings. ④...
- Page 17 Interface measurement tools include spots, rectangles, circle, and lines. Temperature rise calculation, ROI alarm display and other settings. ⑤ Palette：Multiple palettes and inverted palettes, color Isotherm, and Magicthermal advanced palette. ⑥ Settings：Capture mode, Connect, Temp measurement Range, Storage & Save options, Device Set.
- Page 18 Interface Gallery ① Images and videos：Display captured thermal photos, visible image photos, full radiation and MP4 format thermal videos. Click to choose one; Long press to choose multiple. ② Favorite：Only Display favorite photos. ③ Tags ：Filter by Tags, Display selected tags files. ④...
- Page 19 Interface System Settings ①：Single frame Capture, Recording and time-lapse settings. ②：Wifi, Bluetooth, FTP transfer setting. ③：Temperature measurement range, include Intelligent Range. ④：Settings such as SuperResolution, Video format, delete all saved files, etc. ⑤：Language&Time&Region, TWB, Display settings, Screen off, Reset, About, etc.
-
Page 20: Quick-Start
Quick-Start For quick start of the thermal imager, please follow the procedures as below: Insert the battery into the battery compartment of the thermal imager. (Make sure the battery is fully charged before starting up the thermal imager) Insert TF storage card into the TF card slot. Long press the Power Button to turn on the thermal imager. - Page 21 Quick-Start For quick–start of Fotric AnalyzlR PC software, please follow the procedures as below: Visit www.fotric.com/support/AnalyzIR to download and install. Click to start the AnalyzlR professional analysis software Use Type-C USB cable to connect the thermal imager to PC; or insert the TF card into the PC card slot. Copy the images from Gallery folder to PC.
-
Page 22: Tips
Tips • It is very important to adjust the focal length correctly. An incorrect focal adjustment will affect the imaging quality and temperature measurement accuracy of the thermal imager. • The thermal imager has a resolution limit, which depends on the detector size, lens, and distance to the object. -
Page 23: Documents
Documents Manuals Download Before using the product, please visit the following website to download and read the user manuals and operation videos : FOTRIC 320M/320F series: http://www.fotric.com/support/Fotric320... - Page 24 Documents Analysis and Report Software PC Software Download PC software AnalyzlR is a standard configuration of the product. Please visit the following website to download its installation setup and user manuals: www.fotric.com/support/AnalyzIR...
- Page 25 Appendix A Emissivity Table （For reference only） Material Temperature Emissivity Surface Condition (℃） (ε） Name Non-oxidized 0.20 Aluminum Oxidized 0.55 Polished brown 0.40 Brass Unpolished 0.22 Oxidized 0.61 Copper Severely oxidized 0.78 Oxidized 0.74 Iron Rusty 0.65 Oxidized 0.64 Cast iron Non-oxidized 0.21 Roughened...
- Page 26 Appendix A Common 0.93 Surface brick Concrete Surface 0.92 Glass Polished plate 0.94 White 0.92 Lacquer Natural color 0.97 black Smoke black 0.95 Candle soot 0.95 Carbon Graphite rough 0.98 surface Average of 16 Paint 0.94 colors Paper White 0.93 Sand Surface 0.90...
- Page 28 Innovation Excellence Integrity Company Disclaimer Equipment described herein may require EU, US and UNSC authorization for export purposes. Imagery for illustration purposes only. Specifications are subject to change without notice. FOTRIC INC. © 2021 All Rights reserved. FOTRIC INC.
