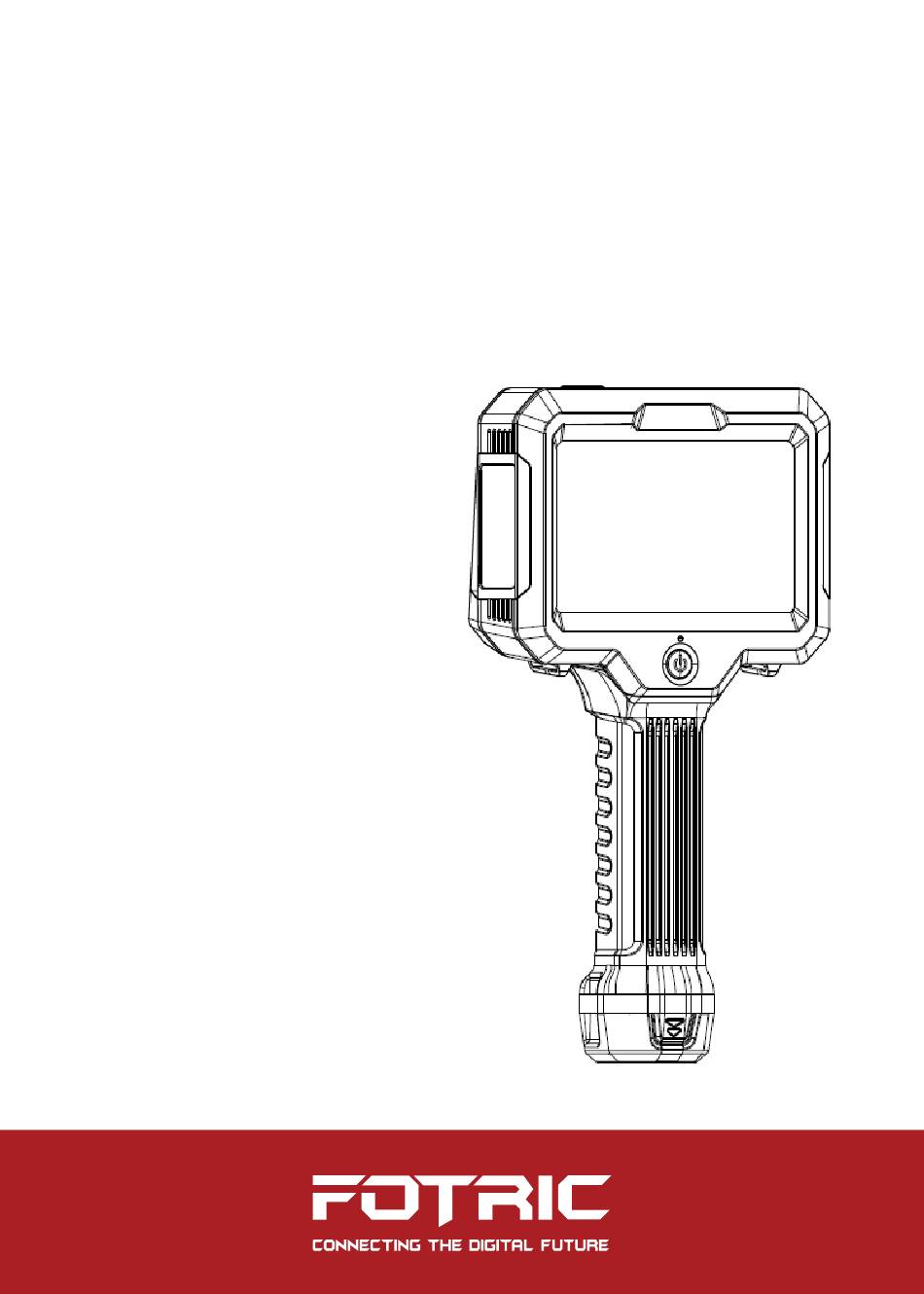

  • Page 1 FOTRIC TD 3-L/TD 3-PL Quick start manual...
  • Page 2 Symbols For the symbols that appear in the documentation, the descriptions are listed below. Warning Caution Potential death or serious Potential danger of injury or injury inducing hazards property damage. Safety information The purpose of this section is to ensure that the user uses the product properly to avoid danger or property damage.
  • Page 3 your own risk). Caution • Protect the acoustic sensor array from stains, dust, and liquids that could affect the performance of the acoustic imaging camera or even cause permanent damage. • Avoid using the product in humid, dusty, extremely hot, or cold environments.
  • Page 4: Table Of Contents

    Rear view ��������������������������������������������������������������������������������������������������� 2 Side view ��������������������������������������������������������������������������������������������������� 3 Top view ���������������������������������������������������������������������������������������������������� 4 Interface introduction �����������������������������������������������5 Main interface ������������������������������������������������������������������������������������������� 5 Save interface ������������������������������������������������������������������������������������������� 6 Gallery ������������������������������������������������������������������������������������������������������� 7 Settings ����������������������������������������������������������������������������������������������������� 9 Quick start ��������������������������������������������������������������11 About this manual ���������������������������������������������������13 How to contact FOTRIC �������������������������������������������15...
  • Page 5: Acoustic Imaging Camera

    FOTRIC TD 3-L/TD 3-PL Quick start manua 丨 1 Acoustic imaging camera Front view...
  • Page 6: Rear View

    2 丨 FOTRIC TD 3-L/TD 3-PL Quick start manual Rear view...
  • Page 7: Side View

    FOTRIC TD 3-L/TD 3-PL Quick start manua 丨 3 Side view...
  • Page 8: Top View

    4 丨 FOTRIC TD 3-L/TD 3-PL Quick start manual Top view...
  • Page 9: Interface Introduction

    FOTRIC TD 3-L/TD 3-PL Quick start manua 丨 5 Interface introduction Main interface ① Menu bar: Display mode, gallery, settings. ② Status bar: Display time, recording status, Wi-Fi, hotspot, power, etc. ③ PRPD graph: Display PRPD chart to help diagnose the type of local play.
  • Page 10: Save Interface

    6 丨 FOTRIC TD 3-L/TD 3-PL Quick start manual ⑥ Photo/Video button: switch to photo or video recording function according to the shooting mode. ⑦ Sound intensity trend graph: display the current maximum sound intensity and sound intensity trend Save interface ①...
  • Page 11: Gallery

    FOTRIC TD 3-L/TD 3-PL Quick start manua 丨 7 ④ Cancel:Do not save the changes made on the file ⑤ OK: Confirm to save the changes ⑥ Defect diagnosis:Select among defect severity level,also used in filtering images. Gallery ① Return: Return to the main interface;...
  • Page 12 8 丨 FOTRIC TD 3-L/TD 3-PL Quick start manual ④ Image information: Display sound pressure level, test distance, frequency range, defect level; ⑤ Favorite: Add and cancel ‘favorite’ status; ⑥ Text annotation: Add or edit text annotation; ⑦ Spectrum: Display the frequency spectrum;...
  • Page 13: Settings

    FOTRIC TD 3-L/TD 3-PL Quick start manua 丨 9 Settings ① Shooting mode: snap photo, recording, naming rules - default, custom; ② Display: Brightness, sound, dynamic range; ③ Detection mode: Partial discharge mode and leakage mode; ④ Distance: Select the distance between 0.1~130 m ⑤...
  • Page 14 10 丨 FOTRIC TD 3-L/TD 3-PL Quick start manual ⑧ System: Model, language, serial number, version information, IP, power remaining, capacity remaining; ⑨ Reset: Reset parameters to factory default settings, delete all saved files. ...
  • Page 15: Quick Start

    FOTRIC TD 3-L/TD 3-PL Quick start manua 丨 11 Quick start Follow these steps: Place the battery in the battery compartment of the sound camera. Charge the battery to full capacity before starting the camera for the first time. Press the power button to turn on the camera.
  • Page 16 12 丨 FOTRIC TD 3-L/TD 3-PL Quick start manual 12. Start the SonicLab professional analysis software. 13. Copy the exported data to the PC using a USB flash drive. 14. Bind the copied folder by SonicLab. 15. See the exported files in SonicLab. Double-click the selected files to open them for analysis.
  • Page 17: About This Manual

    This manual may be updated by FOTRIC without notice due to product version upgrade or other needs. The trademarks and images used in this manual are for illustrative purposes only and are the copyright of the trademark owner.
  • Page 18 14 丨 FOTRIC TD 3-L/TD 3-PL Quick start manual abnormal operation of the product or information leakage caused by such problems, but will provide you with technical support in a timely manner. The product can sense motion detection and fire events under correct installation and configuration, but cannot avoid accidents or resulting personal injury or property damage.
  • Page 19: How To Contact Fotric

    FOTRIC TD 3-L/TD 3-PL Quick start manua 丨 15 How to contact FOTRIC If you need to contact FOTRIC, please address the following...
  • Page 21 This is to certify that the thermal imaging camera listed on this card meets the requirements of FOTRIC quality control procedures.
  • Page 22 FOTRIC TD 3-L/TD 3-PL's technical standards are formulated following the international standards for the industrial testing infrared thermal imager and the relevant standards cited therein, as listed below: FCC 47 CFR Part 15 Radio Frequency Devices EN 61326-1:2013 Electrical equipment for measurement,...
  • Page 23 Warranty Card Thank you for choosing FOTRIC thermal imaging camera. We design products to deliver long-lasting performance under our warranty policy (starting from date of original purchase). If any manufacturing defects appear under normal use, the product will be repaired or replaced by...
  • Page 24 Innovation Excellence Integrity Company Disclaimer Equipment described herein may require EU, US and UNSC authorization for export purposes. Imagery for illustration purposes only. Specifications are subject to change without notice. FOTRIC INC. © 2023 All Rights reserved. FOTRIC INC�...
