Summary of Contents for Fotric 226

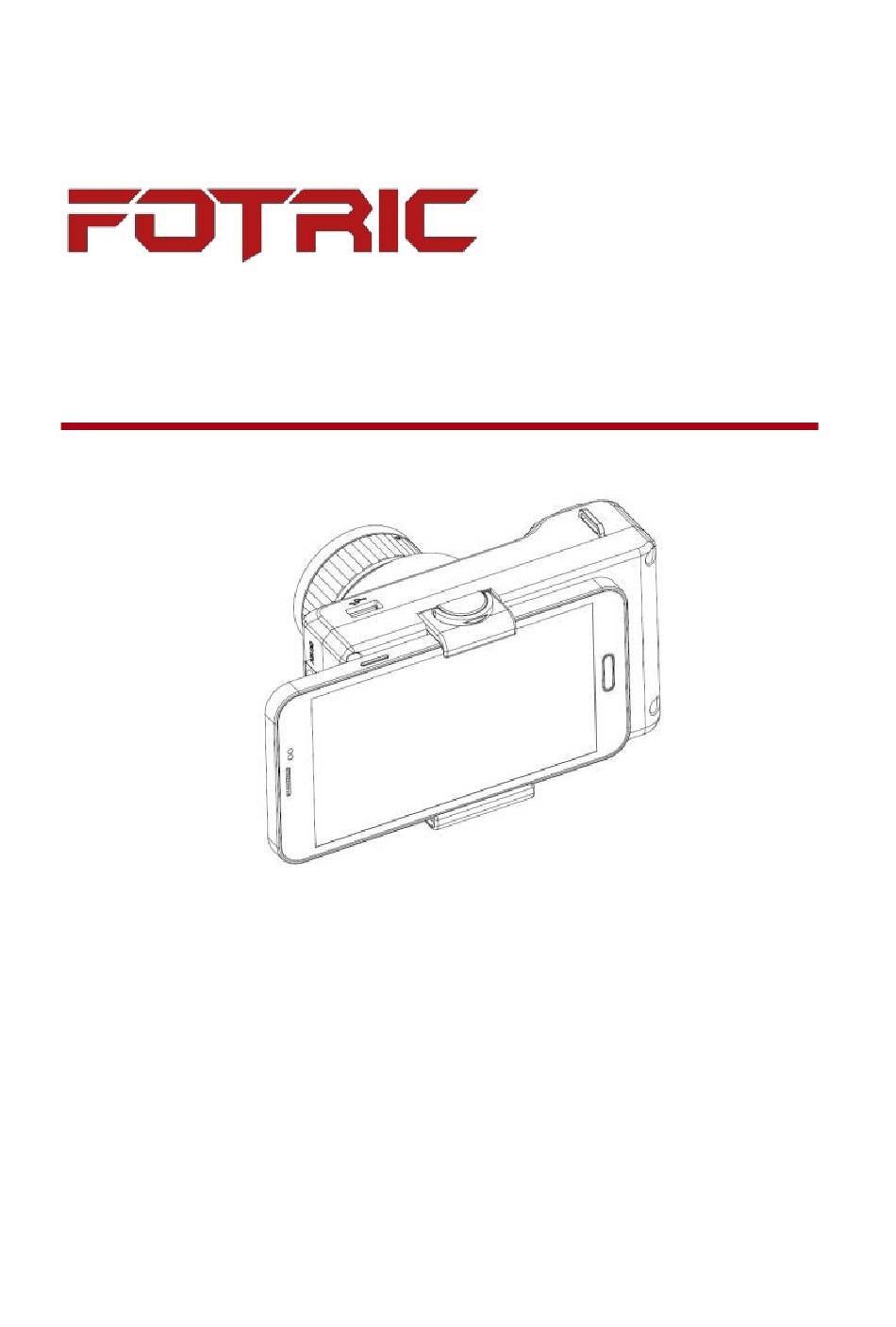

- Page 1 User Manual © 2017, FOTRIC, User Manual, V.7.1...
-
Page 2: Table Of Contents
Table of contents Quick Start Guide ............1 Data Transfer .............2 Camera Controls ............3 Software ..............7 Packing List ..............8 Quality Control Report ..........9 QC Certificate .............10 Warranty..............11 © 2017, FOTRIC, User Manual, V.7.1... -
Page 3: Quick Start Guide
1. Quick Start Guide Charge Fotric thermal camera fully for 3 hours. Ensure the camera is fully charged (charge indicator light turns off) before using it for the first time. Download and install Fotric LinkIR APP and/or AnalyzIR computer software. -
Page 4: Data Transfer
2. Data transferring and sharing 2.1 Fotric Cloud 2.2 Local The images are saved at “internal/IRs/Gallery”. -
Page 5: Camera Controls
3. Camera 3.1. Back Smartphone USB port Focus ring Phone mount Hand/Neck strap mount Phone mount... - Page 6 3.2. Front Shutter button Lens Phone mount Smartphone digital camera...
- Page 7 3.3. Left DC 12V charging port Charge indicator Note: Red indicates charging, no light indicates charging completed. Power indicator (On/off) Power on/off button...
- Page 8 3.4. Below 1- Tripod socket UNC (1/4-20) 2- Hand/Neck strap mount...
-
Page 9: Software
4. Software download Fotric LinkIR App http://www.fotric.com/software_downloads.html Fotric AnalyzIR software http://www.fotric.com/software_downloads.html Pictures taken by certain camera models cannot be opened by Fotric AnalyzIR software... -
Page 10: Packing List
Micro USB OTG to USB2.0 cable for Pad* USB to USB cable* *The inclusion of this item is dependent on model. Note: FOTRIC Precision Instruments reserves the right to discontinue models, parts and/or accessories, and other items, or to change specifications at any time without prior notice. -
Page 11: Quality Control Report
Quality Control Report Environment □Failed ☒Passed 0℃ □Failed ☒Passed 50℃ Vibration X axis □Failed ☒Passed □Failed Y axis ☒Passed Z axis □Failed ☒Passed 4. Functions Software functions □Failed ☒Passed Hardware functions □Failed ☒Passed Others □Failed ☒Passed Appearance Accessories □Failed ☒Passed... -
Page 12: Qc Certificate
QC Certificate This is to certify that this thermal imaging camera meets the requirements of Fotric quality control procedures. -
Page 13: Warranty
Warranty Thank you for choosing this FOTRIC thermal imaging camera. W e design our products to deliver long-lasting performance and stand behind our cameras with our warranty. If any manufacturing defects appear under normal use within the warranty period, the product will be repaired or replaced by Fotric Precision Instruments at no cost to the owner. - Page 14 • Saelig Company Inc. • 71 Perinton Parkway • • Fairport, NY 14450 USA •1-585-385-1750 info@saelig.com www.saelig.com...
